Ford
>>
2013
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Module Communications Network
>>
Fusion With Blind Spot Information System (BLIS)
Fusion With Blind Spot Information System (BLIS)

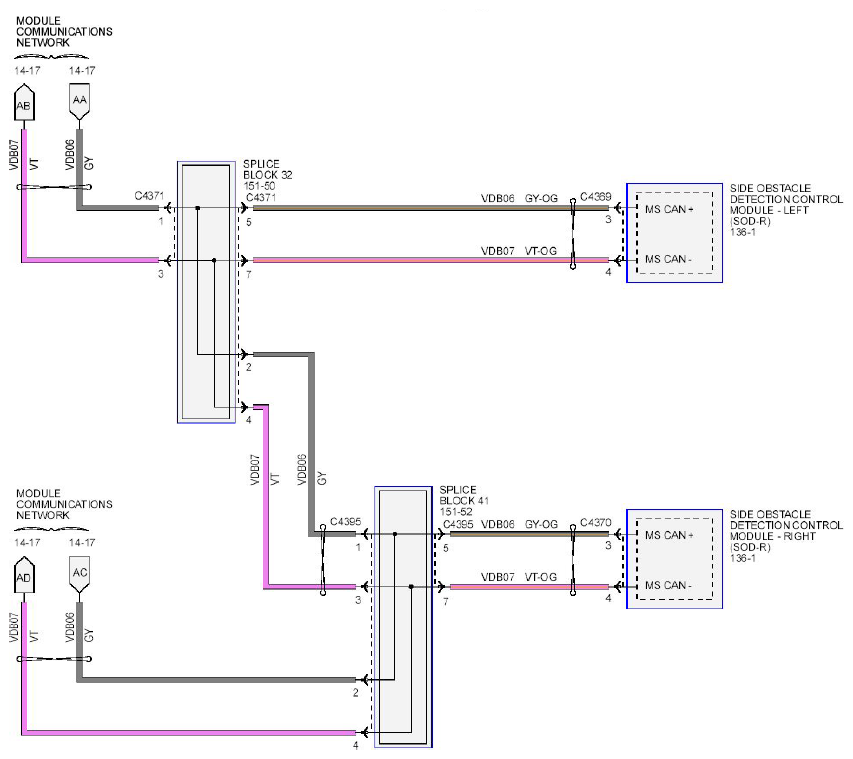

Fig 1: Module Communications Network Wiring Diagram - Fusion With Blind Spot Information System (BLIS)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
