Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Memory Seats >> Notes

Memory Seats: Notes

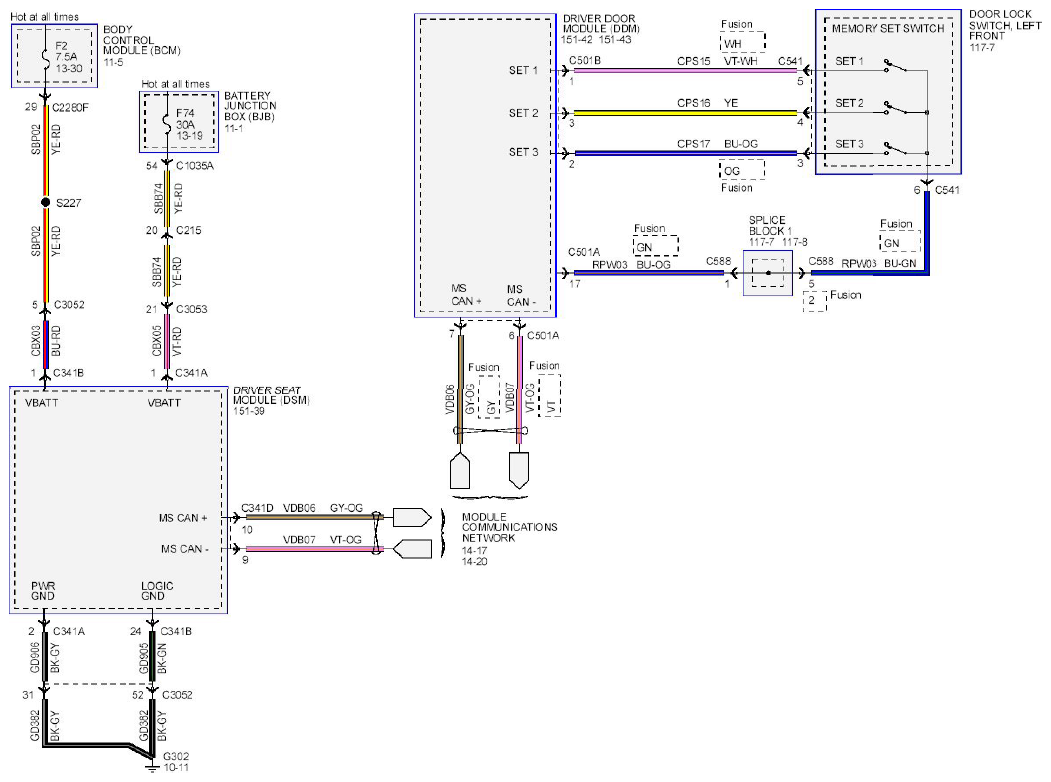

Fig 1: Memory Seats Wiring Diagram

G08745459

Courtesy of FORD MOTOR CO.
