10-Way Power Seat With Memory - Driver

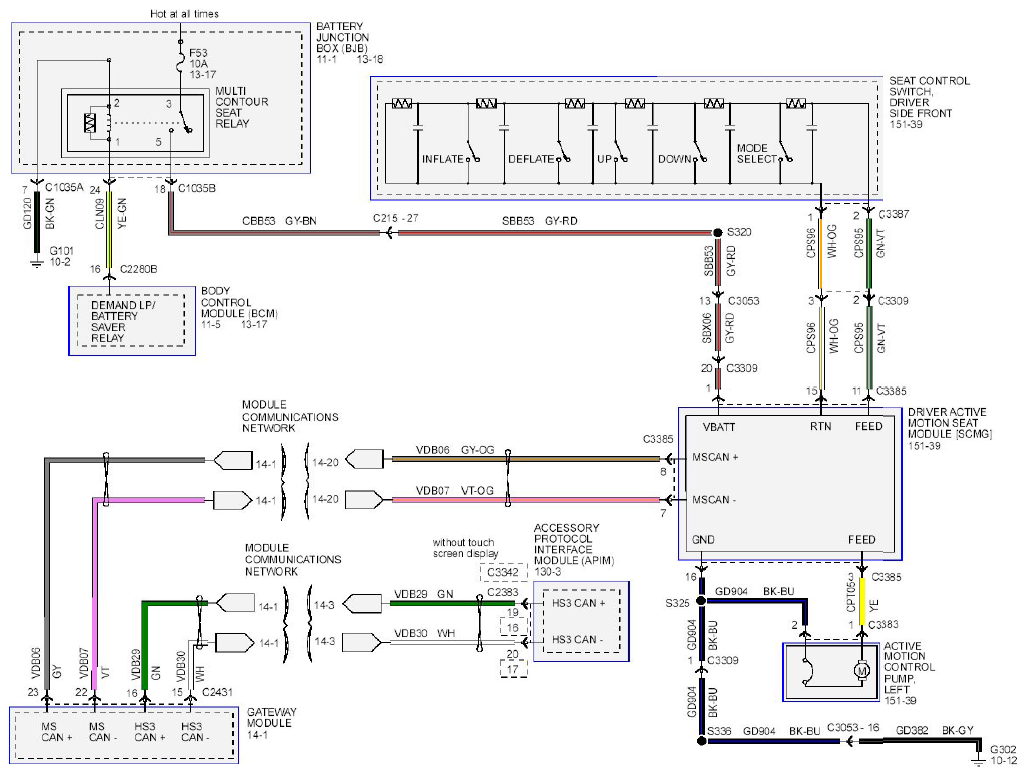

Fig 1: Memory Seats Wiring Diagram - 10-Way Power Seat With Memory (Driver) (1 Of 3)

Courtesy of FORD MOTOR CO.

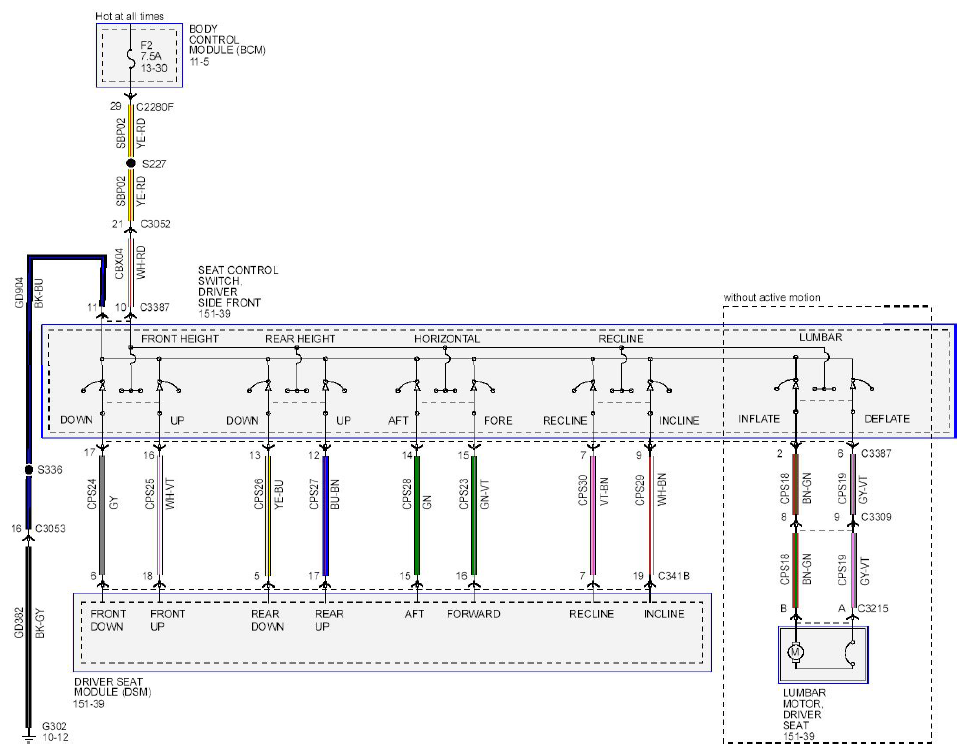

Fig 2: Memory Seats Wiring Diagram - 10-Way Power Seat With Memory (Driver) (2 Of 3)

Courtesy of FORD MOTOR CO.

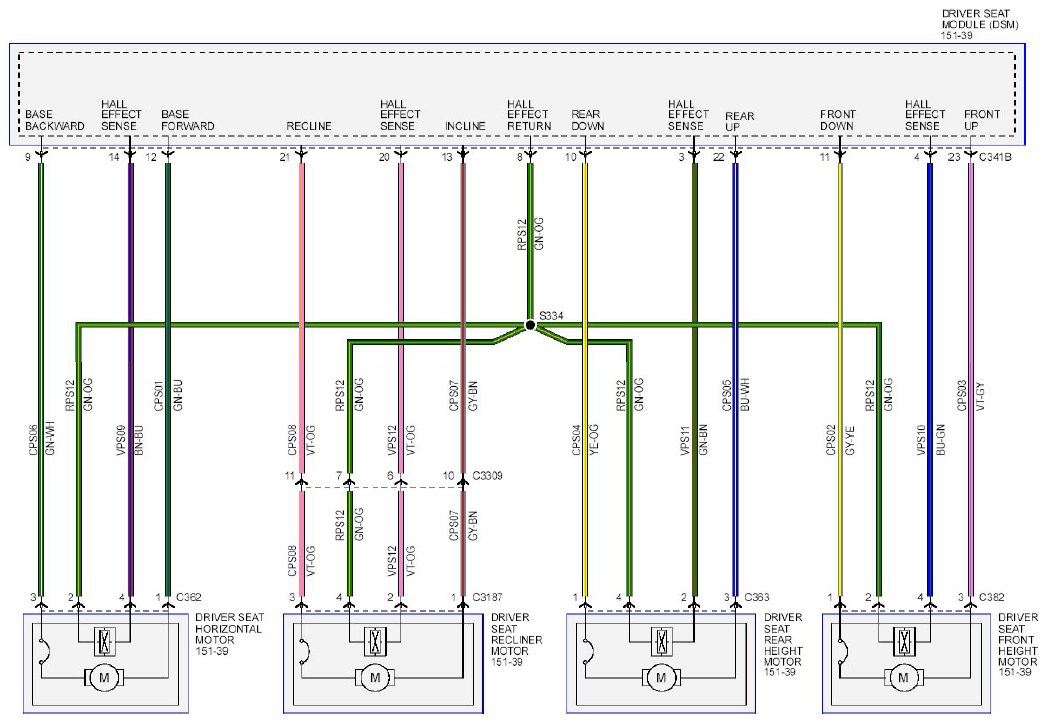

Fig 3: Memory Seats Wiring Diagram - 10-Way Power Seat With Memory (Driver) (3 Of 3)

Courtesy of FORD MOTOR CO.
