Interior Lamps: Notes

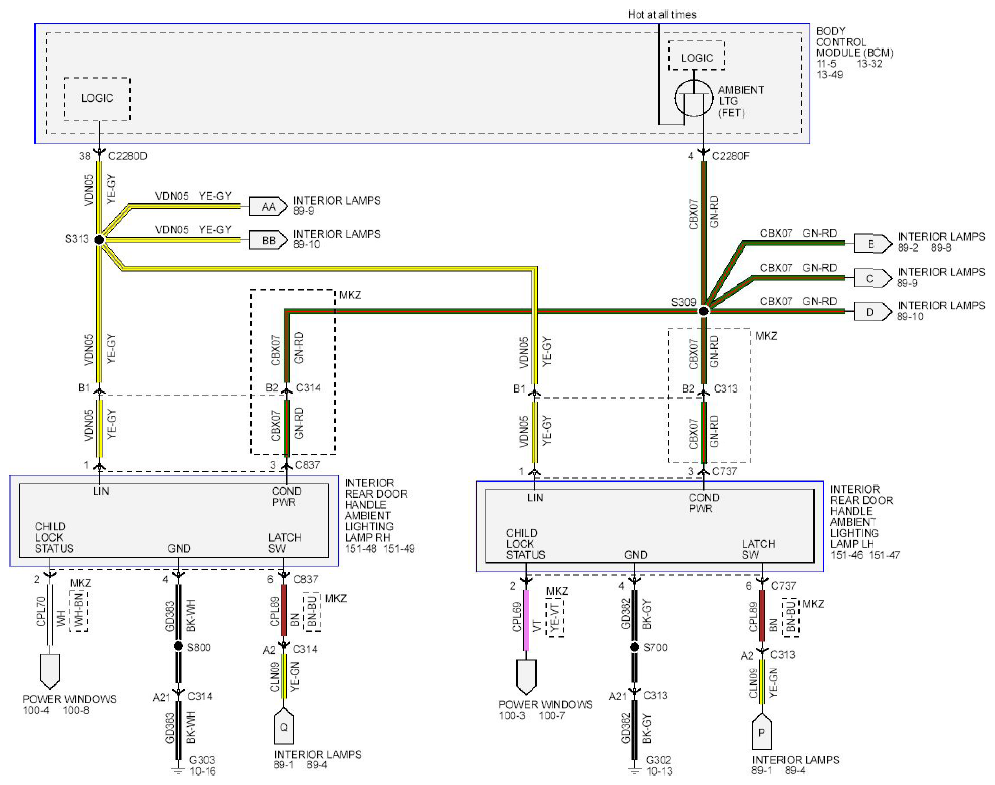

Fig 1: Interior Lamps Wiring Diagram - (1 Of 1)
G08745390Courtesy of FORD MOTOR CO.

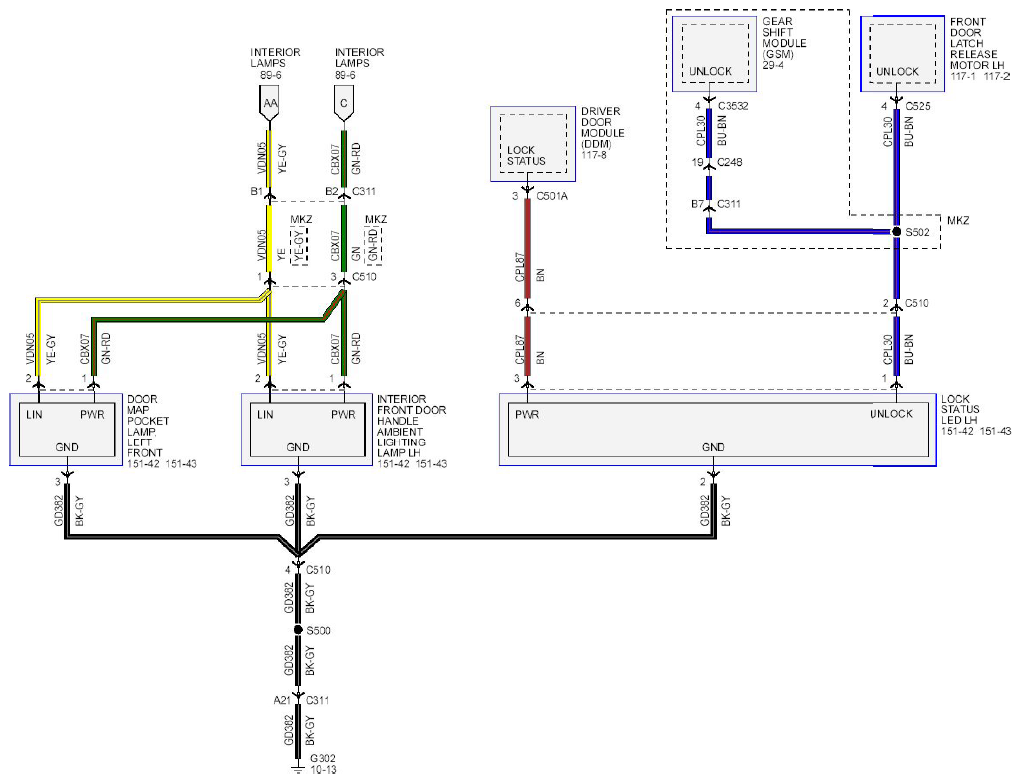

Fig 2: Interior Lamps Wiring Diagram - (2 Of 2)
G08745393Courtesy of FORD MOTOR CO.

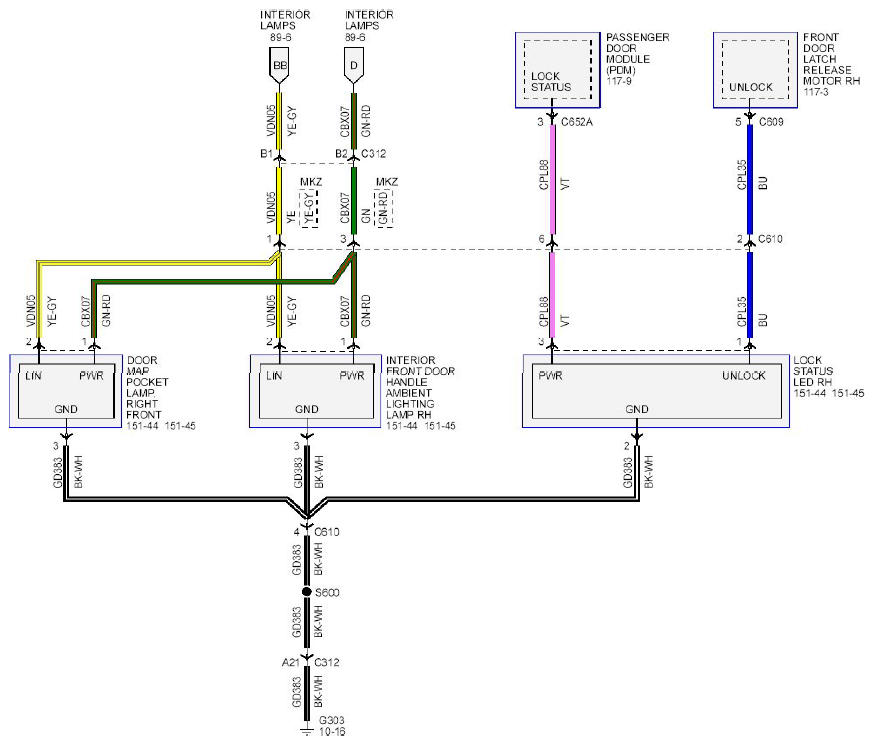

Fig 3: Interior Lamps Wiring Diagram - (3 Of 4)
G08745394Courtesy of FORD MOTOR CO.

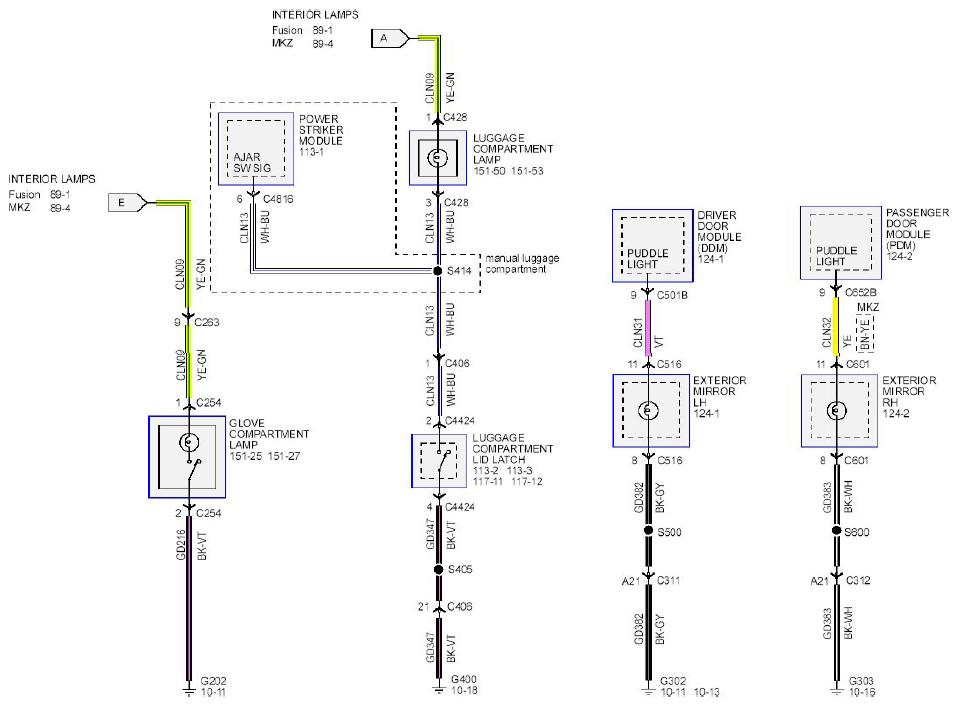

Fig 4: Interior Lamps Wiring Diagram - (4 Of 4)
G08745395Courtesy of FORD MOTOR CO.
