Instrument Cluster: Notes

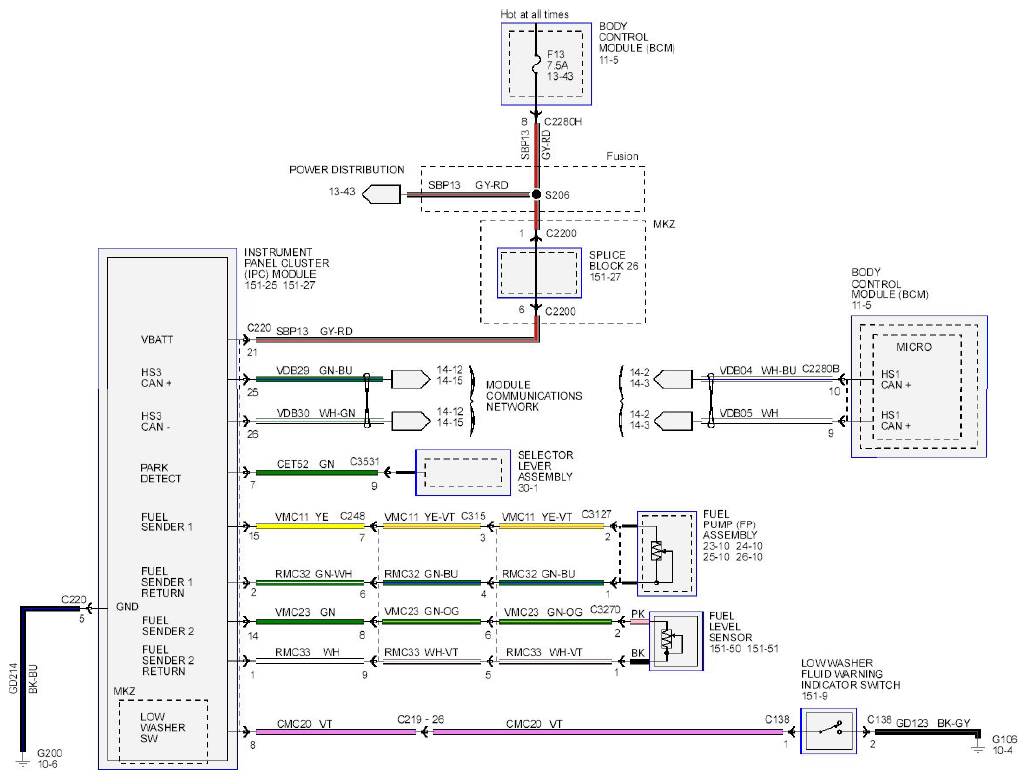

Fig 1: Instrument Cluster Wiring Diagram (1 Of 2)
G08745367Courtesy of FORD MOTOR CO.

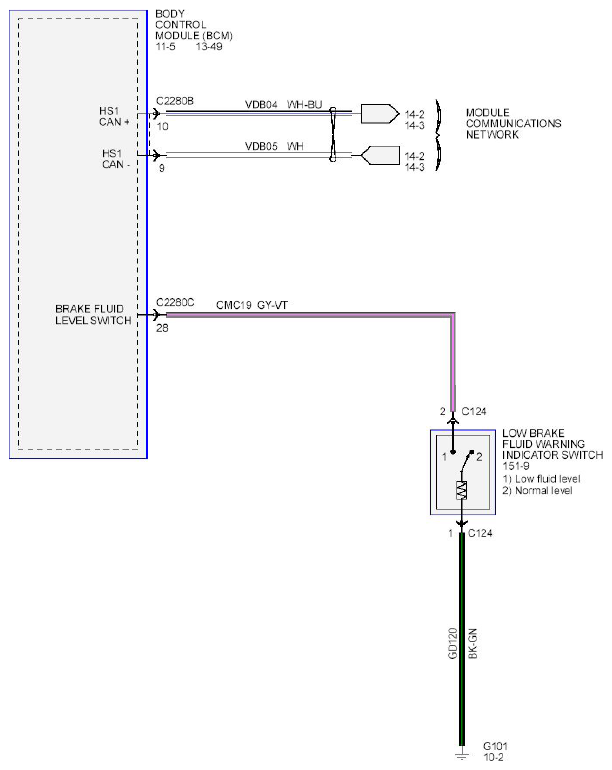

Fig 2: Instrument Cluster Wiring Diagram (2 Of 3)
G08745368Courtesy of FORD MOTOR CO.

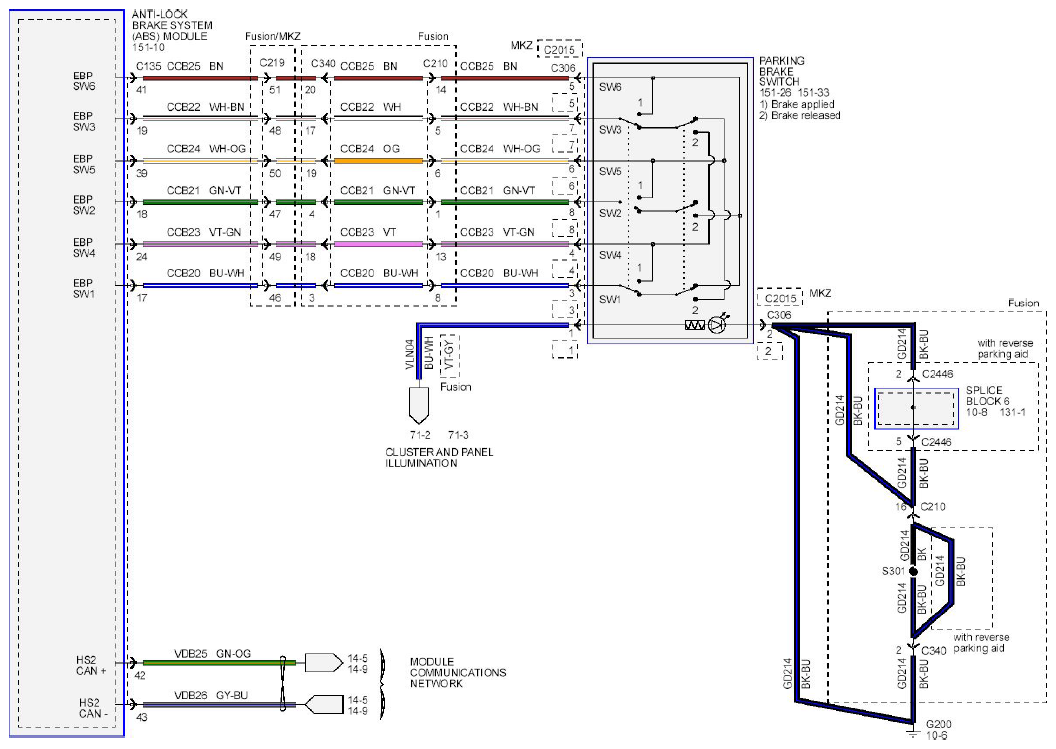

Fig 3: Instrument Cluster Wiring Diagram (3 Of 3)
G08745369Courtesy of FORD MOTOR CO.
