Horn/Cigar Lighter: Notes

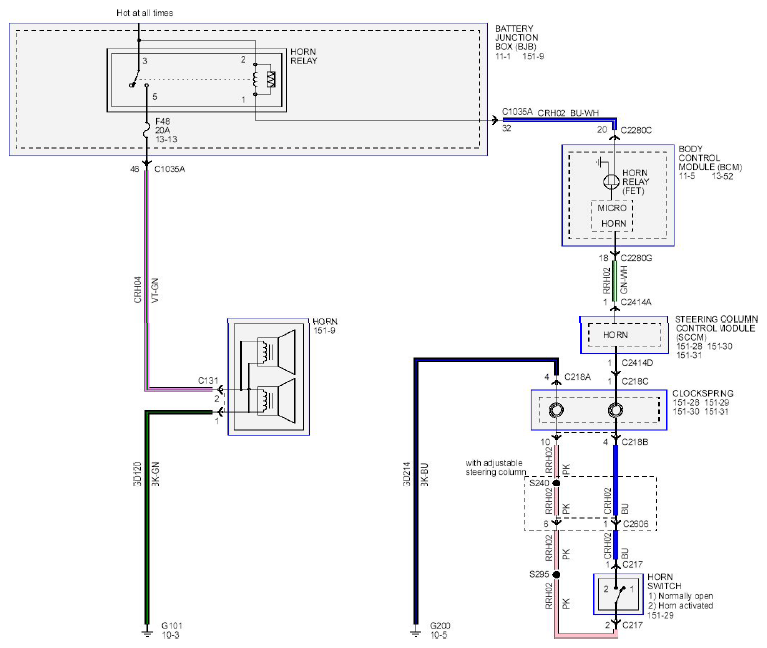

Fig 1: Horn_Cigar Lighter Wiring Diagram (1 Of 3)
G08745338Courtesy of FORD MOTOR CO.

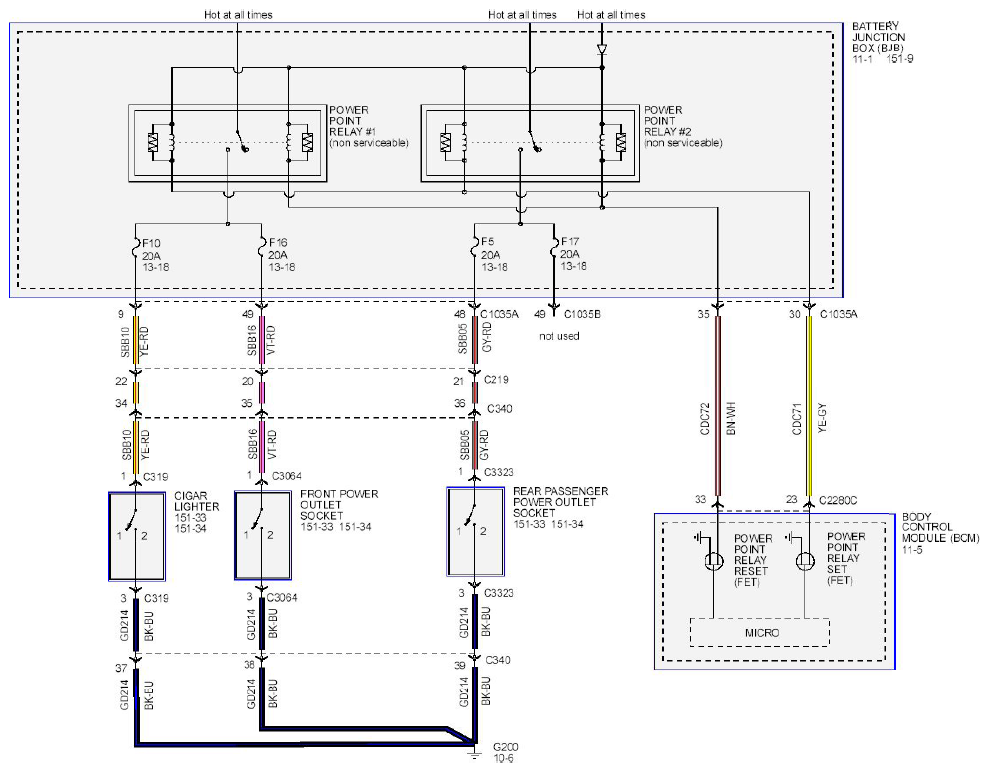

Fig 2: Horn_Cigar Lighter Wiring Diagram (2 Of 3)
G08745339Courtesy of FORD MOTOR CO.

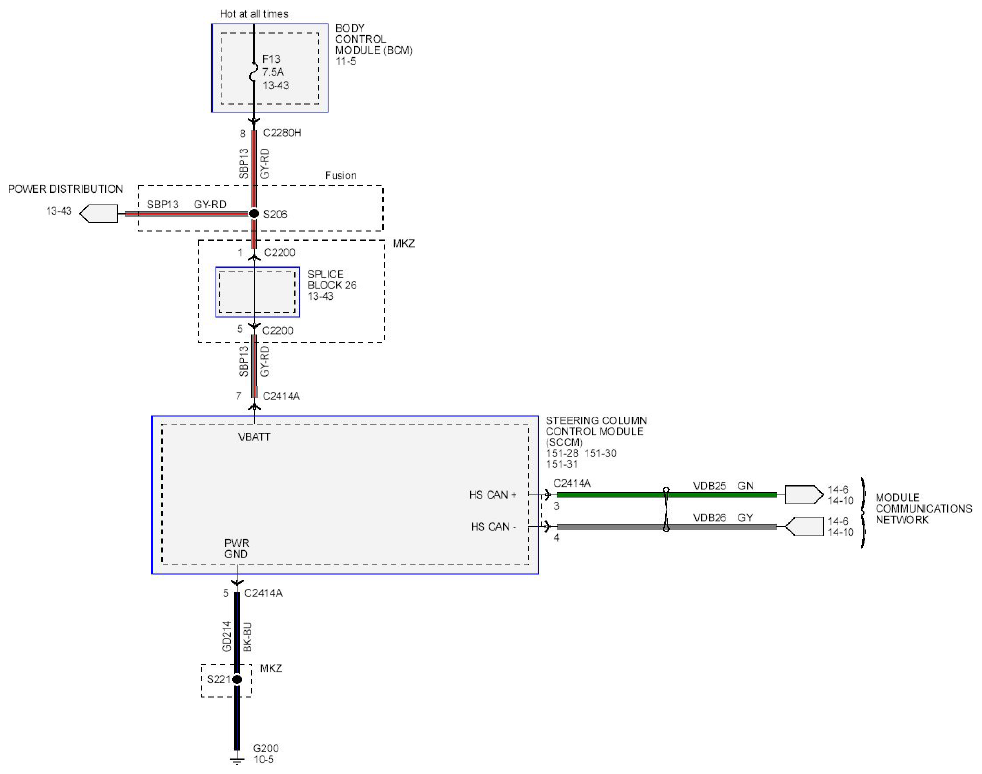

Fig 3: Horn_Cigar Lighter Wiring Diagram (3 Of 3)
G08745340Courtesy of FORD MOTOR CO.
