Electronic Engine Controls - 2.5L: Notes

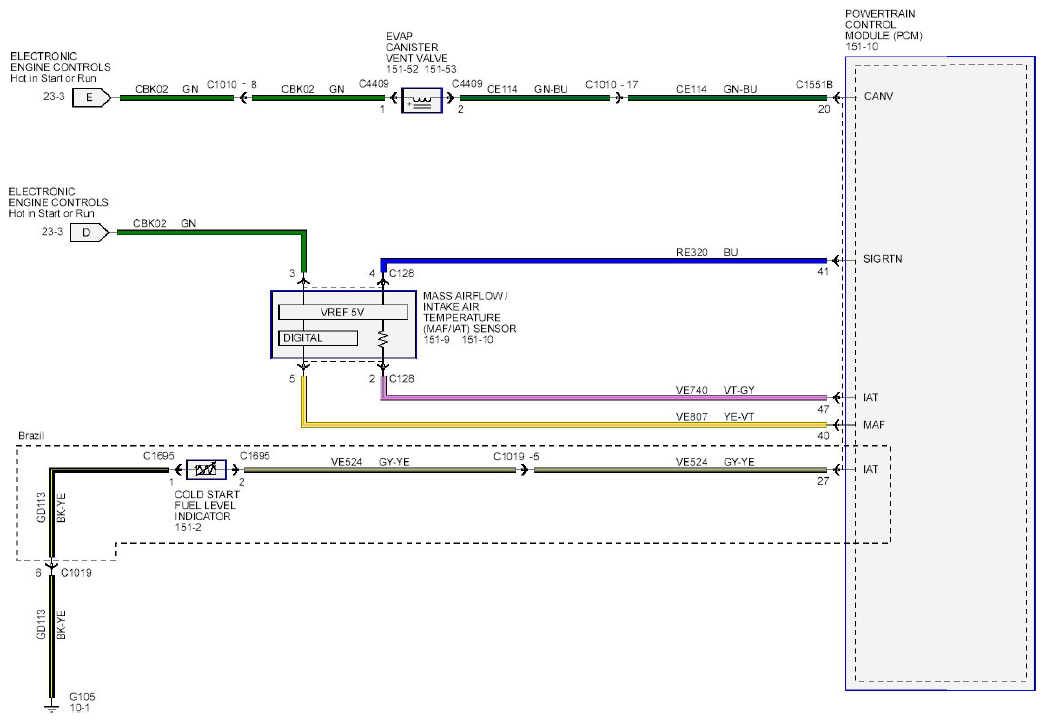

Fig 1: Electronic Engine Controls Wiring Diagram - 2.5L (1 Of 4)

Courtesy of FORD MOTOR CO.

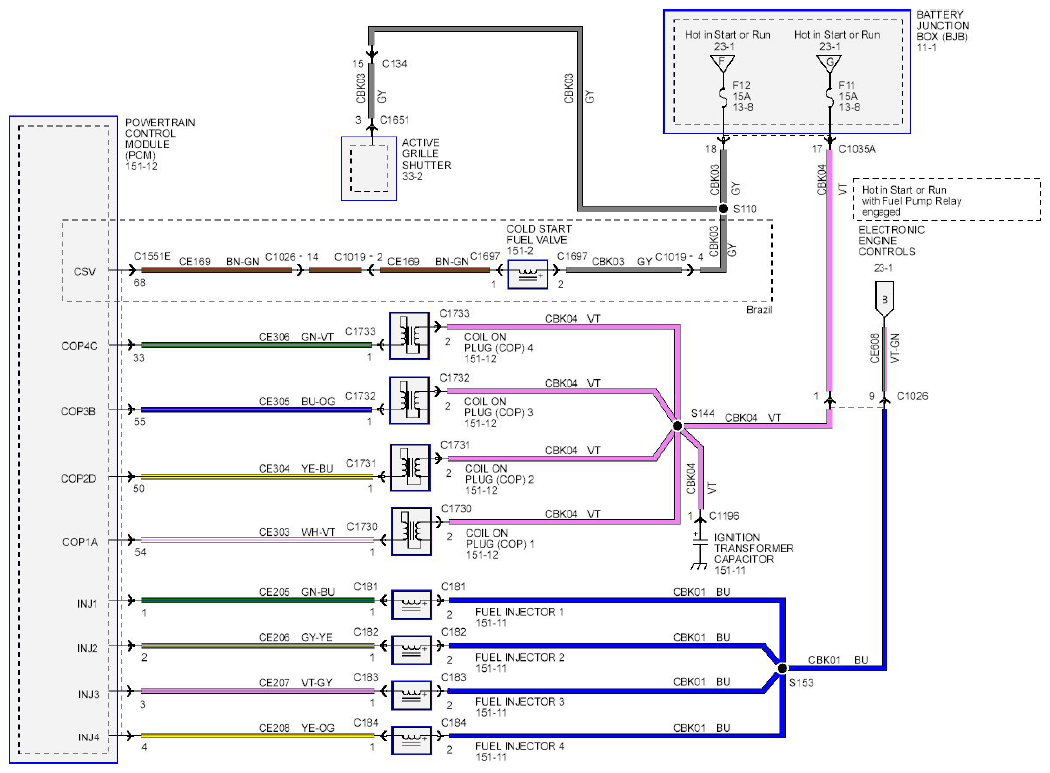

Fig 2: Electronic Engine Controls Wiring Diagram - 2.5L (2 Of 4)

Courtesy of FORD MOTOR CO.

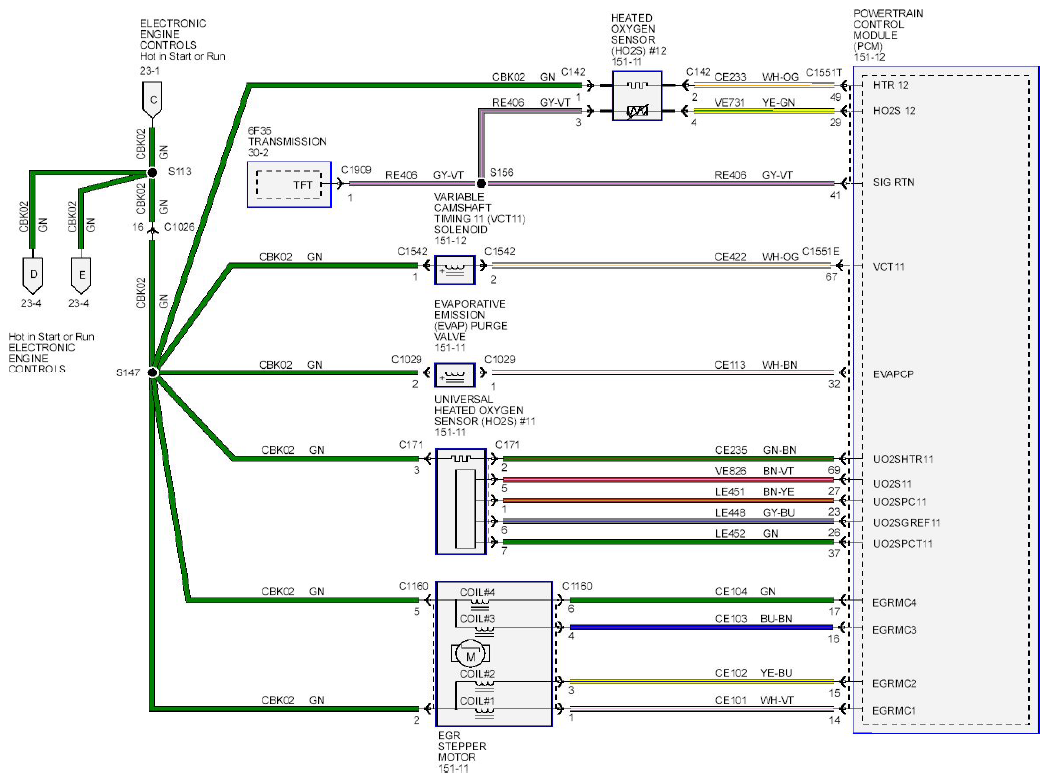

Fig 3: Electronic Engine Controls Wiring Diagram - 2.5L (3 Of 4)

Courtesy of FORD MOTOR CO.

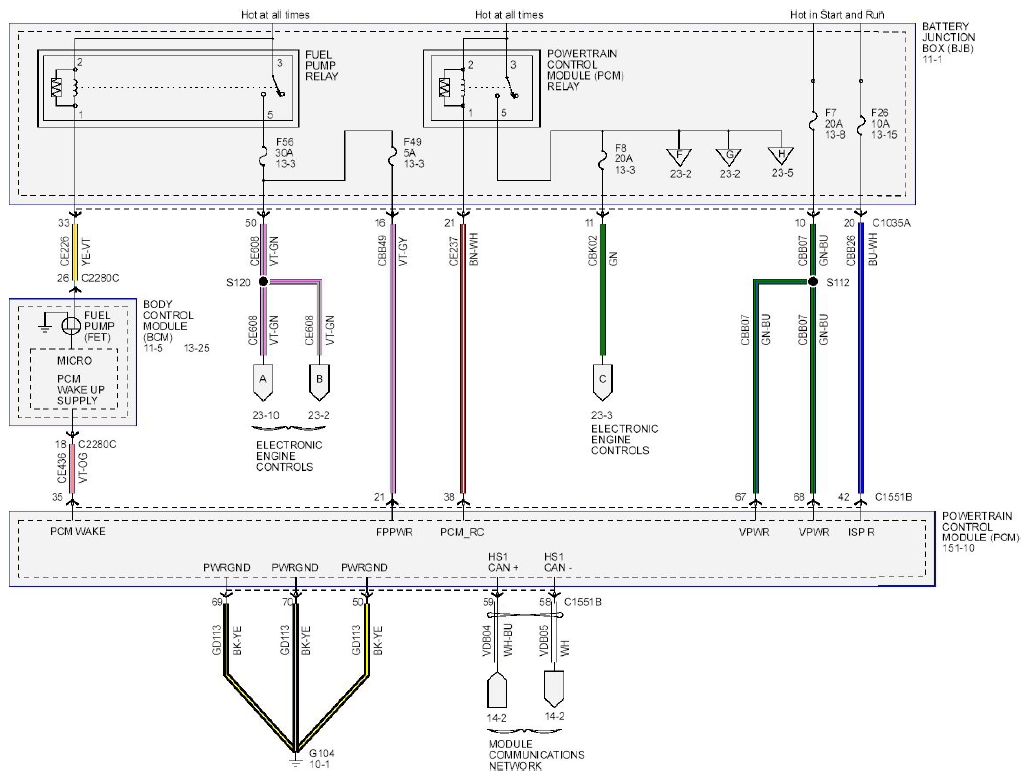

Fig 4: Electronic Engine Controls Wiring Diagram - 2.5L (4 Of 4)

Courtesy of FORD MOTOR CO.
