Cruise Control
>>
W/Adaptive Cruise
W/Adaptive Cruise

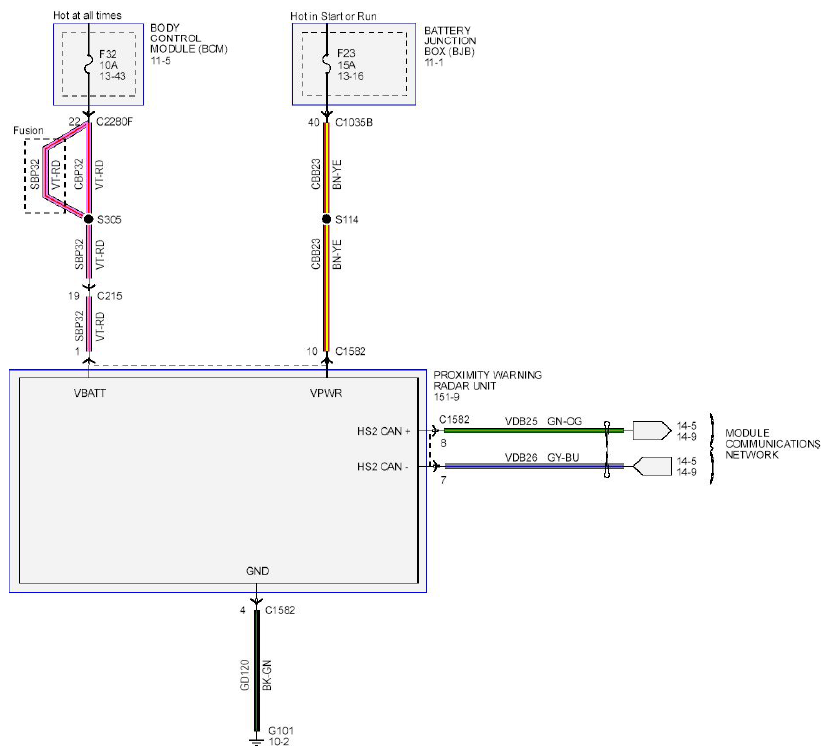

Fig 1: Cruise Control Wiring Diagram - W/ Adaptive Cruise (1 Of 2)
Courtesy of FORD MOTOR CO.

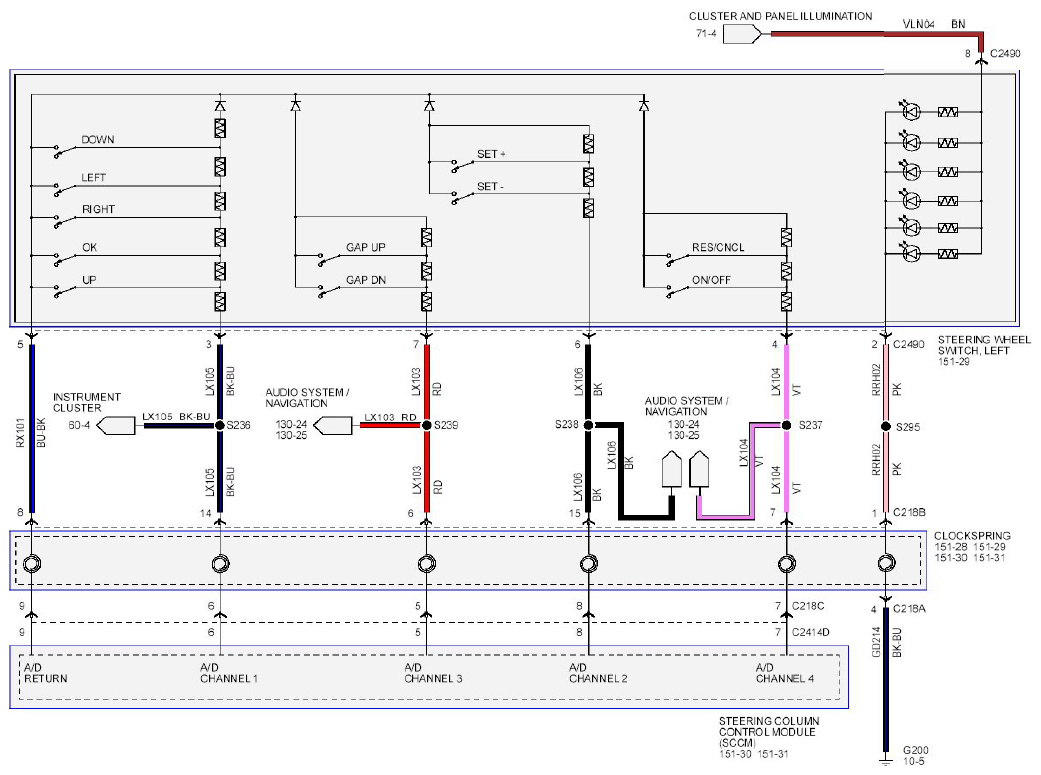

Fig 2: Cruise Control Wiring Diagram - W/ Adaptive Cruise (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
