Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Charging System >> 3.7L, 2.0L

3.7L, 2.0L

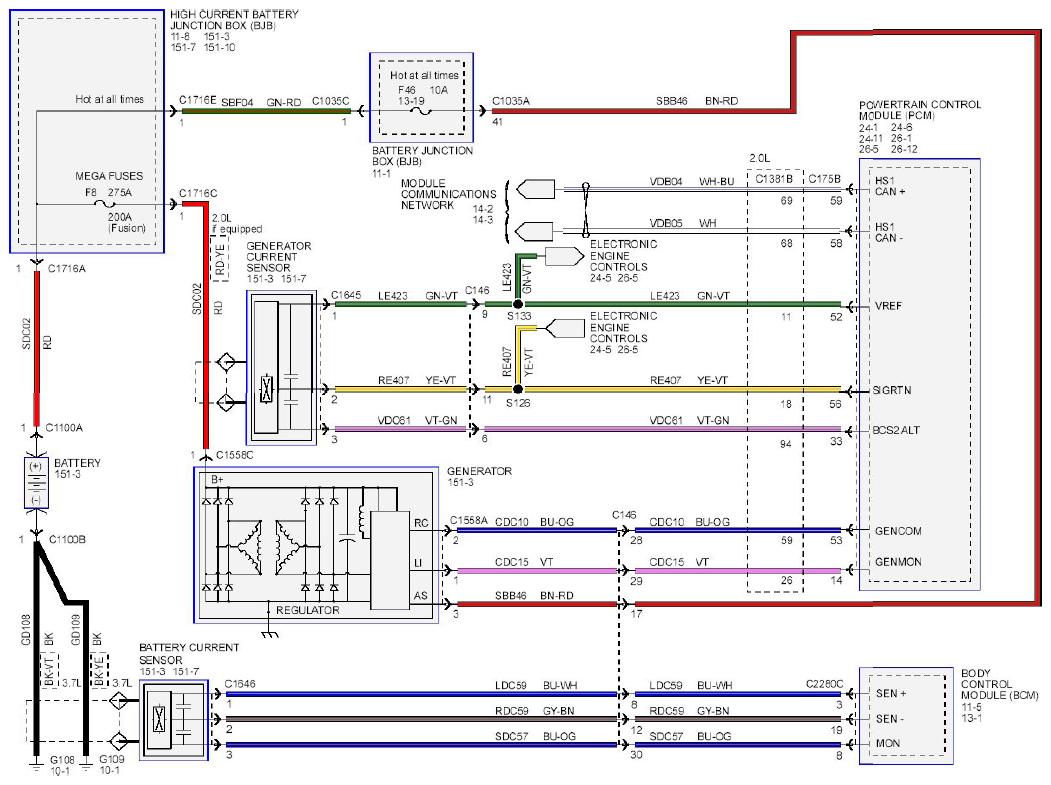

Fig 1: Charging System Diagram (3.7L, 2.0L)

G08745172

Courtesy of FORD MOTOR CO.
