OEM Wiring Diagrams -- (Except Hybrid)
>>
Charging System
>>
2.5L, 1.6L
2.5L, 1.6L

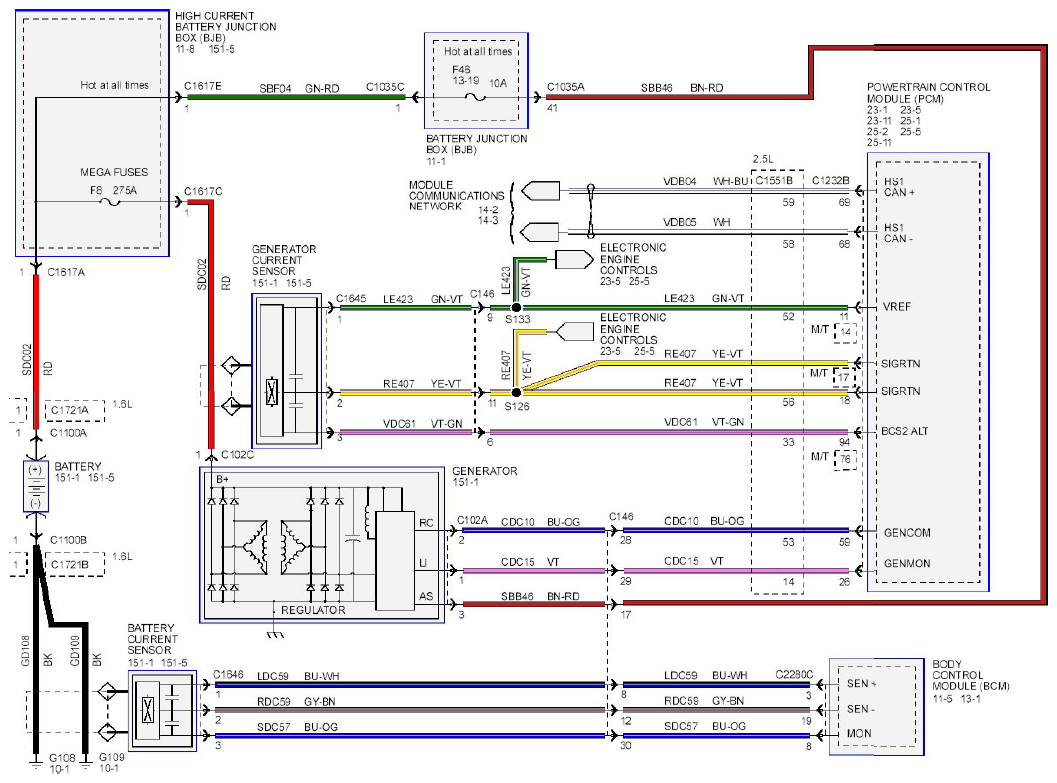

Fig 1: Charging System Diagram (2.5L, 1.6L)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
