Charging System
>>
1.6L With Auto-Start-Stop
1.6L With Auto-Start-Stop

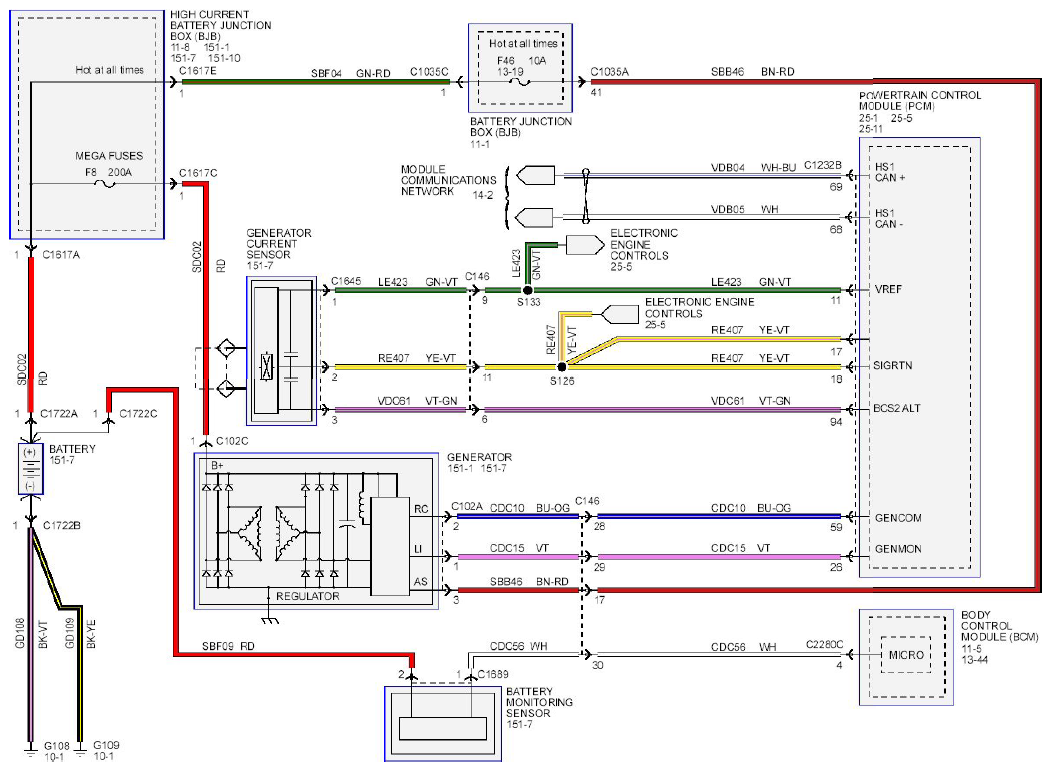

Fig 1: Charging System Diagram (1.6L With Auto-Start-Stop)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
