SONY® Audio

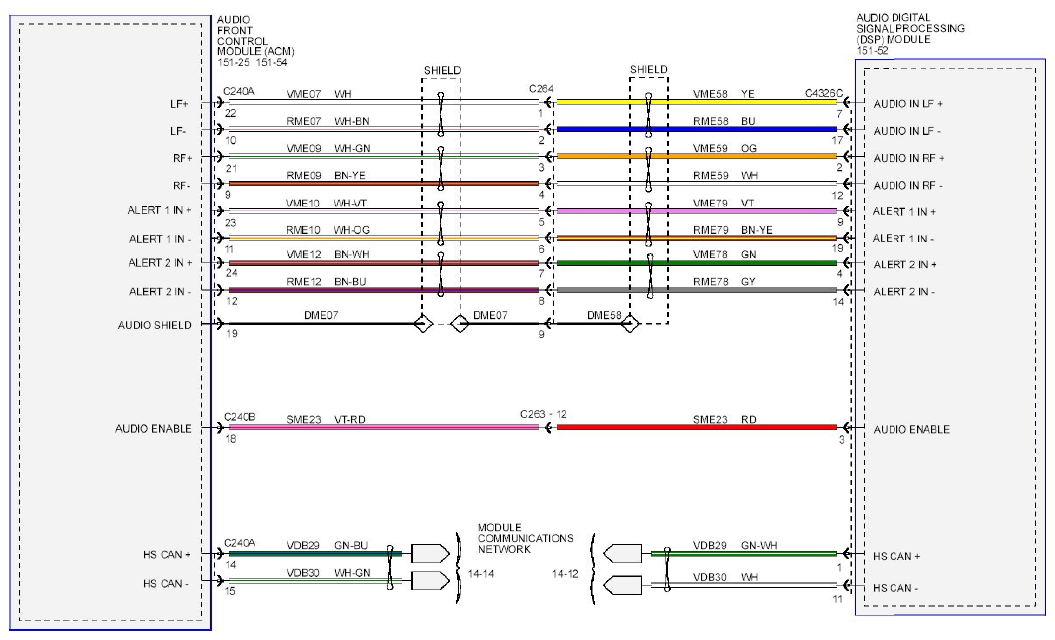

Fig 1: Audio System_Navigation Wiring Diagram - SONY® Audio (1 Of 6)

Courtesy of FORD MOTOR CO.

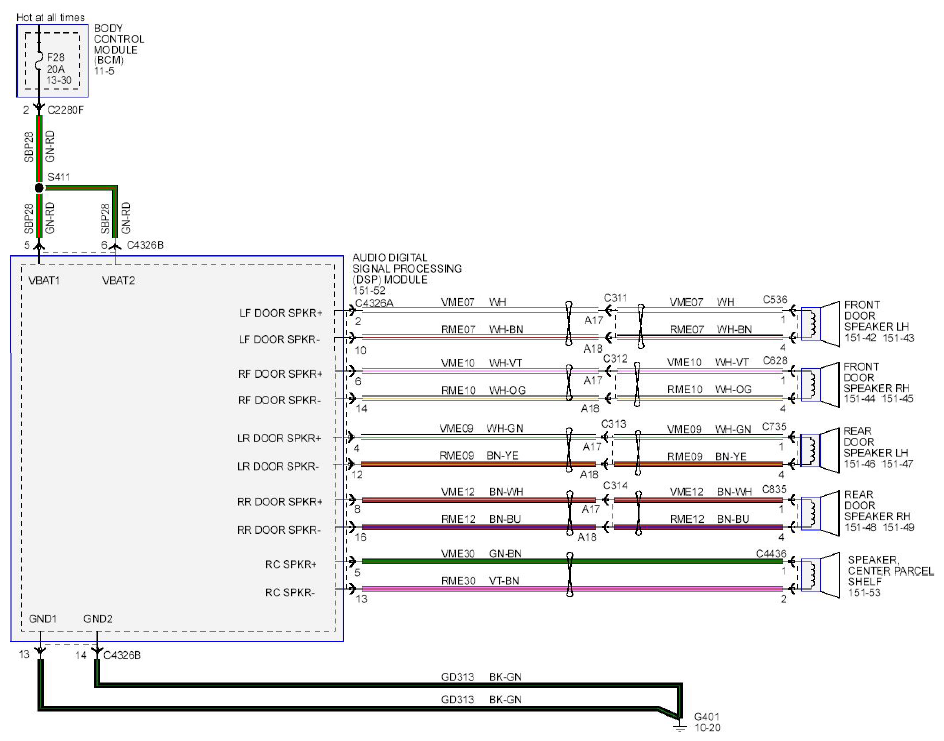

Fig 2: Audio System_Navigation Wiring Diagram - SONY® Audio (2 Of 6)

Courtesy of FORD MOTOR CO.

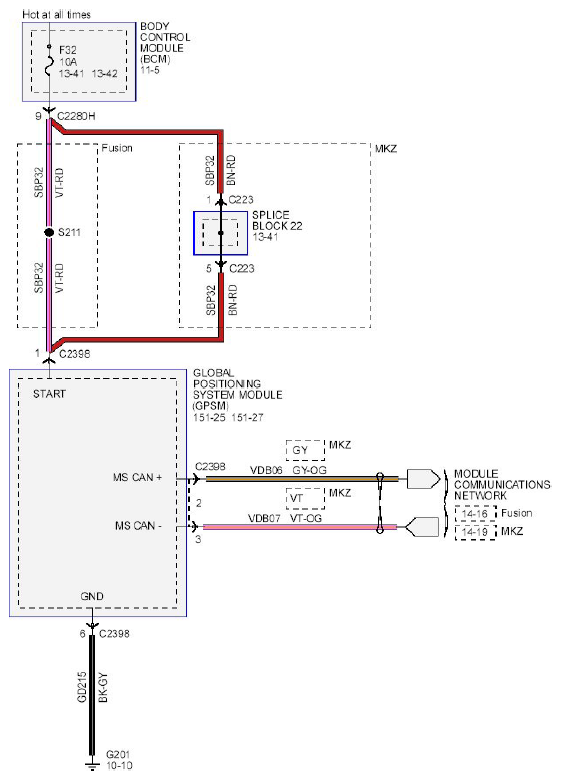

Fig 3: Audio System_Navigation Wiring Diagram - SONY® Audio (3 Of 6)

Courtesy of FORD MOTOR CO.

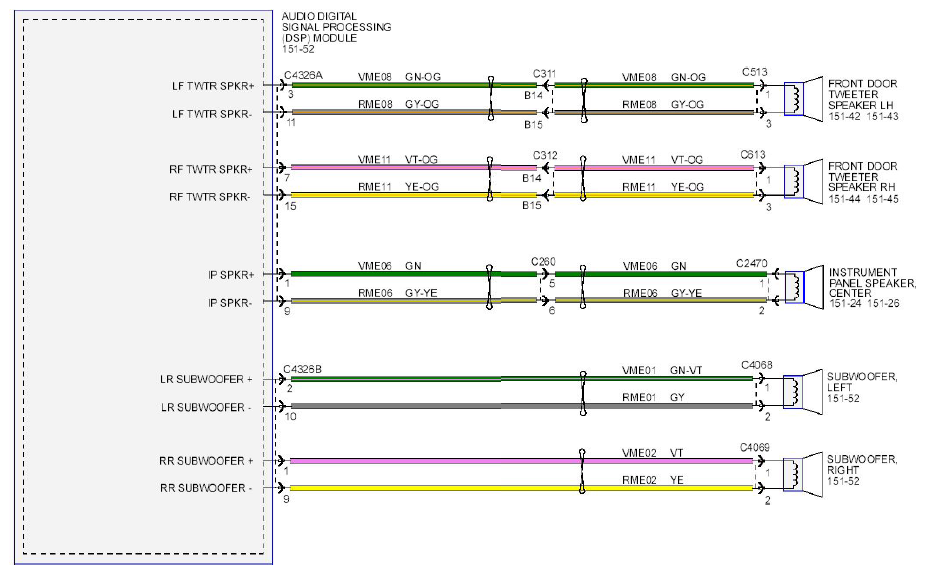

Fig 4: Audio System_Navigation Wiring Diagram - SONY® Audio (4 Of 6)

Courtesy of FORD MOTOR CO.

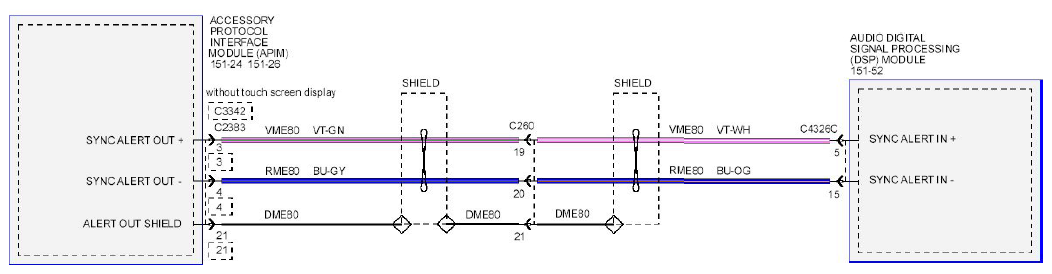

Fig 5: Audio System_Navigation Wiring Diagram - SONY® Audio (5 Of 6)

Courtesy of FORD MOTOR CO.

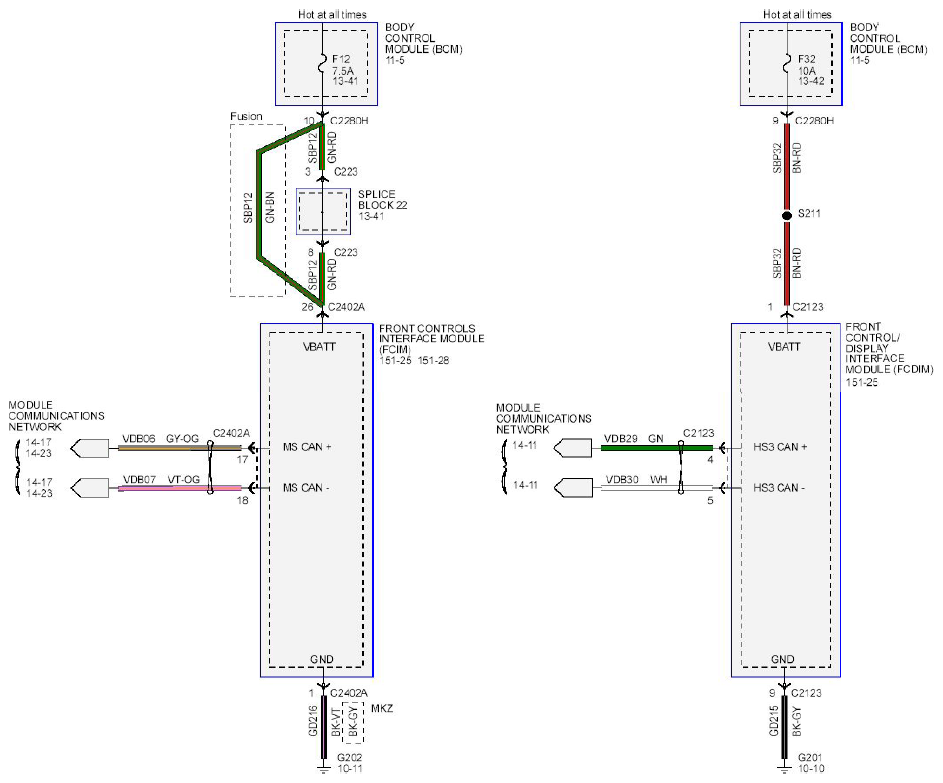

Fig 6: Audio System_Navigation Wiring Diagram - SONY® Audio (6 Of 6)

Courtesy of FORD MOTOR CO.
