Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Audio System/Navigation >> Mid - Fusion

Mid - Fusion

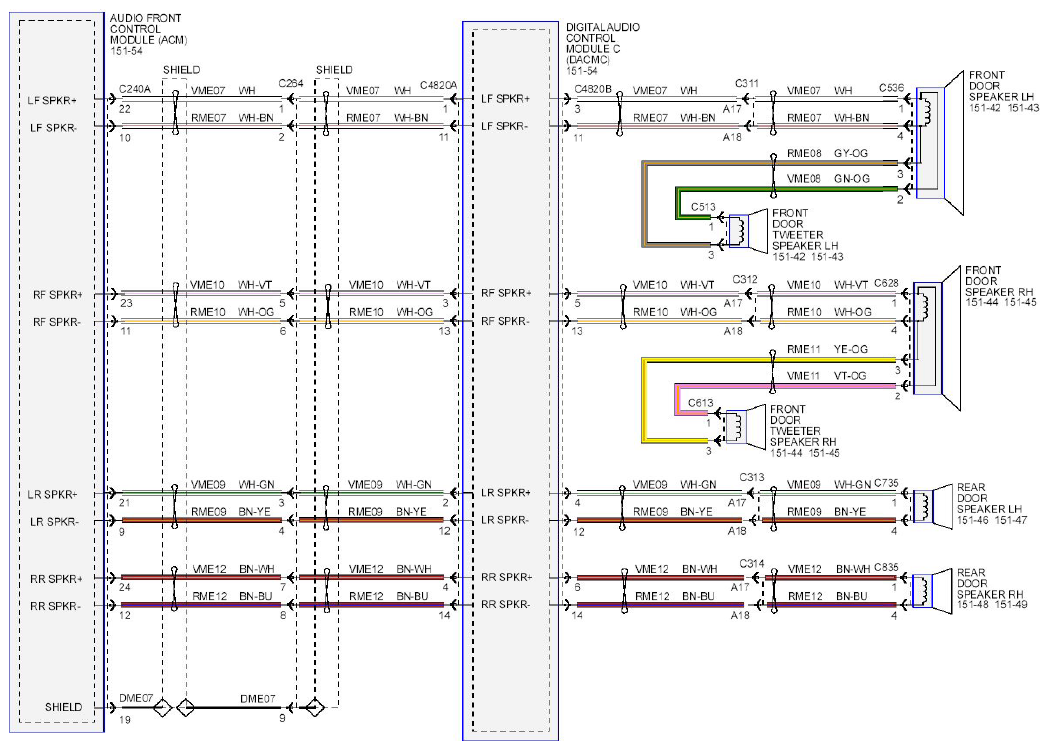

Fig 1: Audio System_Navigation Wiring Diagram - MID (Fusion) (1 Of 2)
G08745486Courtesy of FORD MOTOR CO.

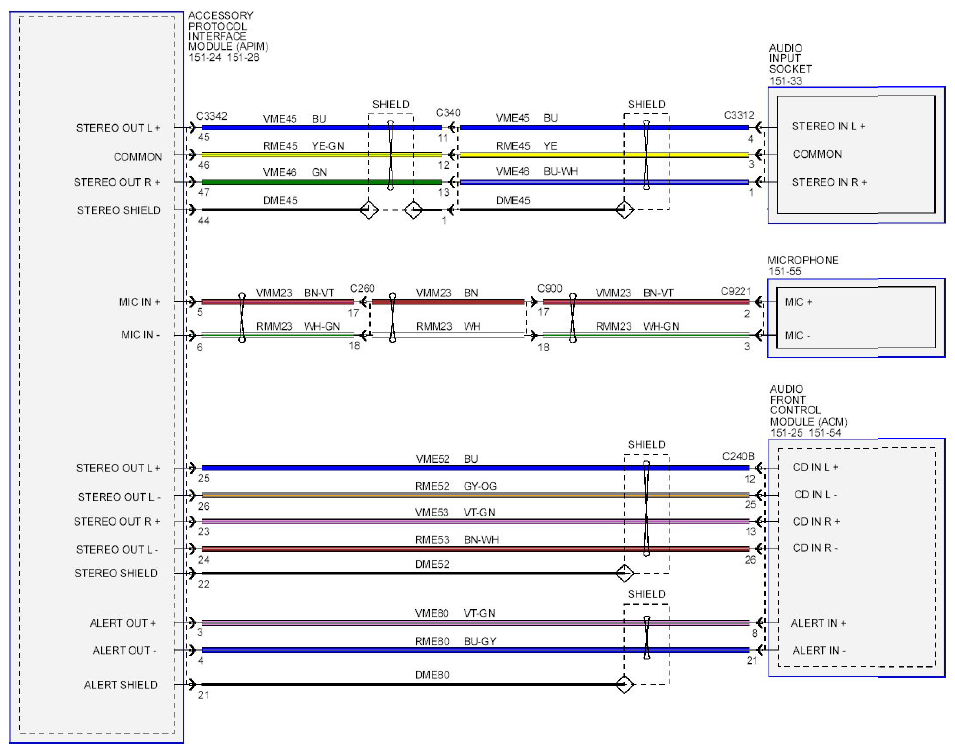

Fig 2: Audio System_Navigation Wiring Diagram - MID (Fusion) (2 Of 2)
G08745488Courtesy of FORD MOTOR CO.
