Mid - Fusion With Touch Screen Display

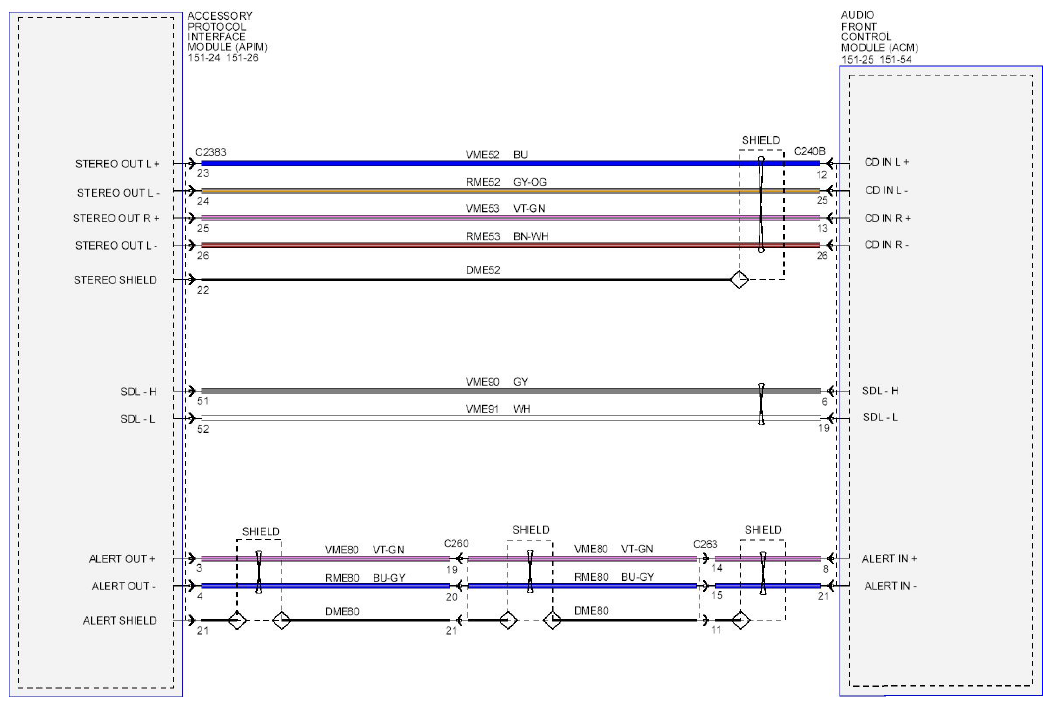

Fig 1: Audio System_Navigation Wiring Diagram - MID (Fusion With Touch Screen Display)

G08745487

Courtesy of FORD MOTOR CO.
