MKZ/Mid Fusion With Touch Screen Display

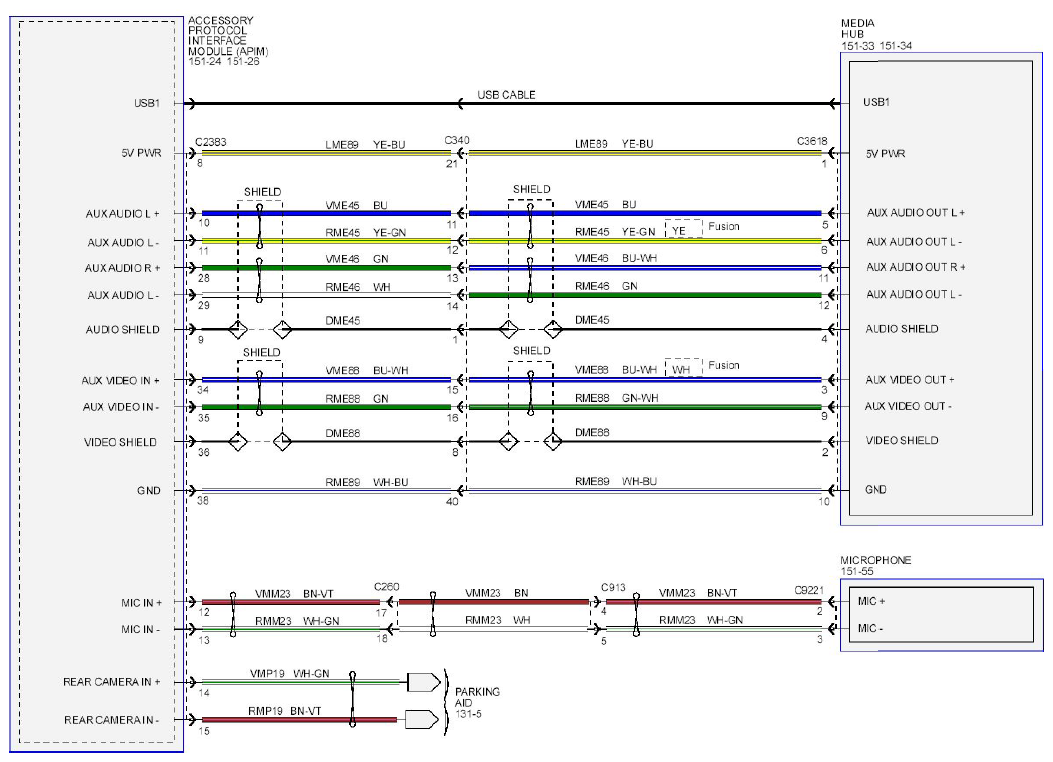

Fig 1: Audio System_Navigation Wiring Diagram - MKZ/MID Fusion With Touch Screen Display

G08745489

Courtesy of FORD MOTOR CO.
