Audio System/Navigation: MKZ/DECKLID

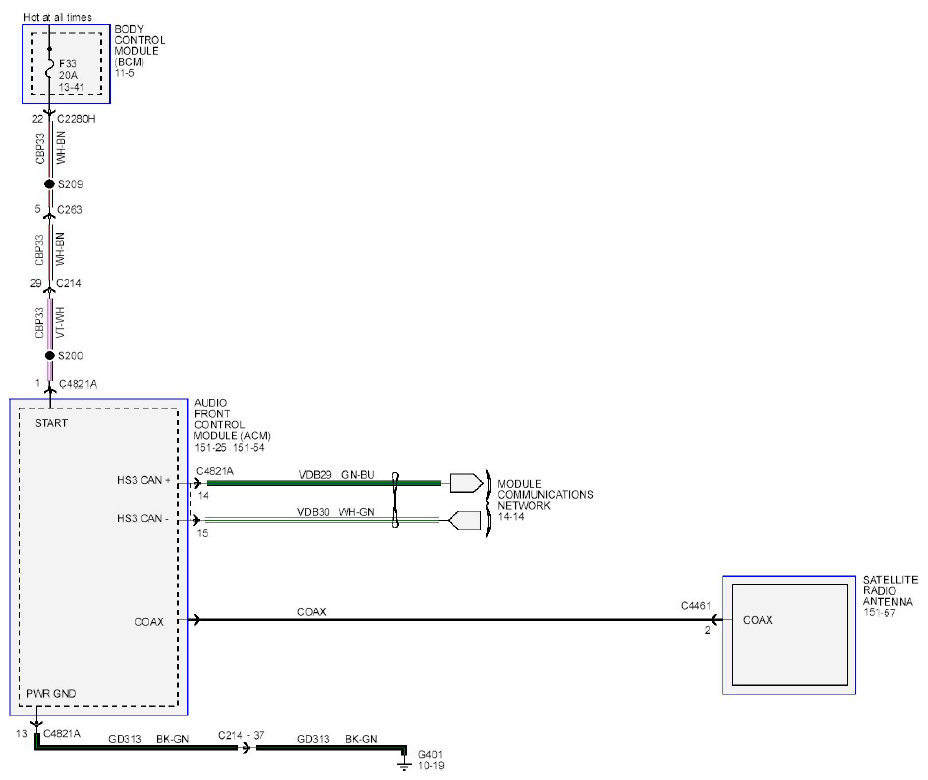

Fig 1: Audio System_Navigation Wiring Diagram - MKZ/DECKLID (1 Of 2)
G08745477Courtesy of FORD MOTOR CO.
Fig 2: Audio System_Navigation Wiring Diagram - MKZ/DECKLID (2 Of 2)
G08745478Courtesy of FORD MOTOR CO.
