Audio System/Navigation: Fusion

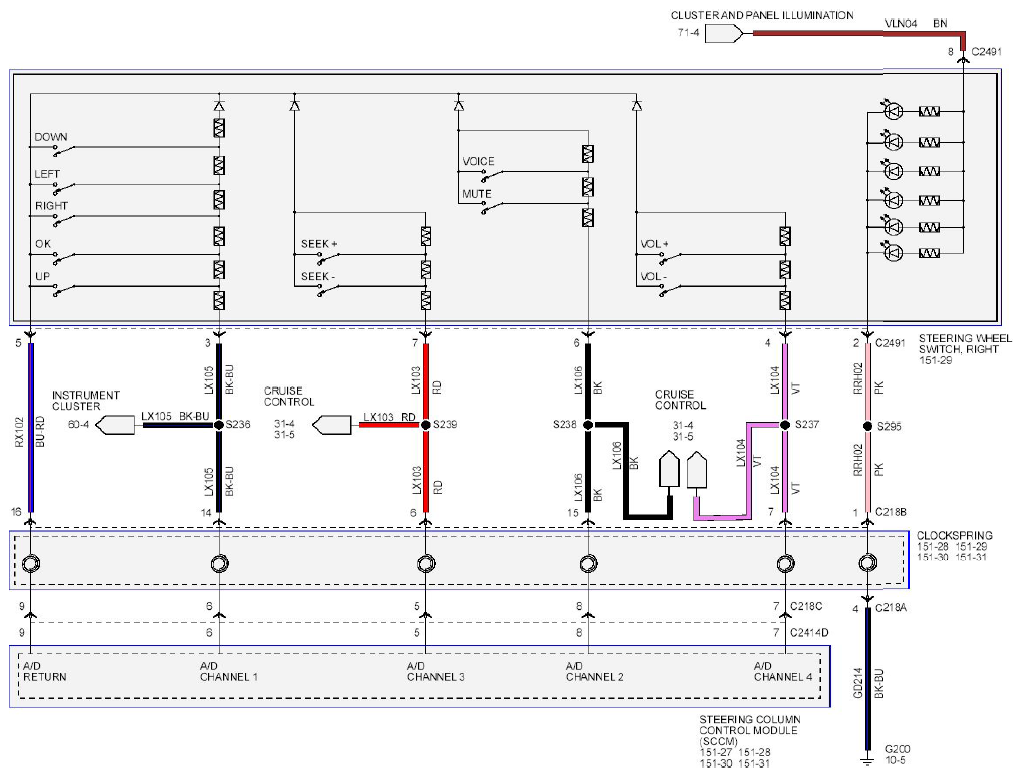

Fig 1: Audio System_Navigation Wiring Diagram - Fusion (1 Of 2)
G08745500Courtesy of FORD MOTOR CO.

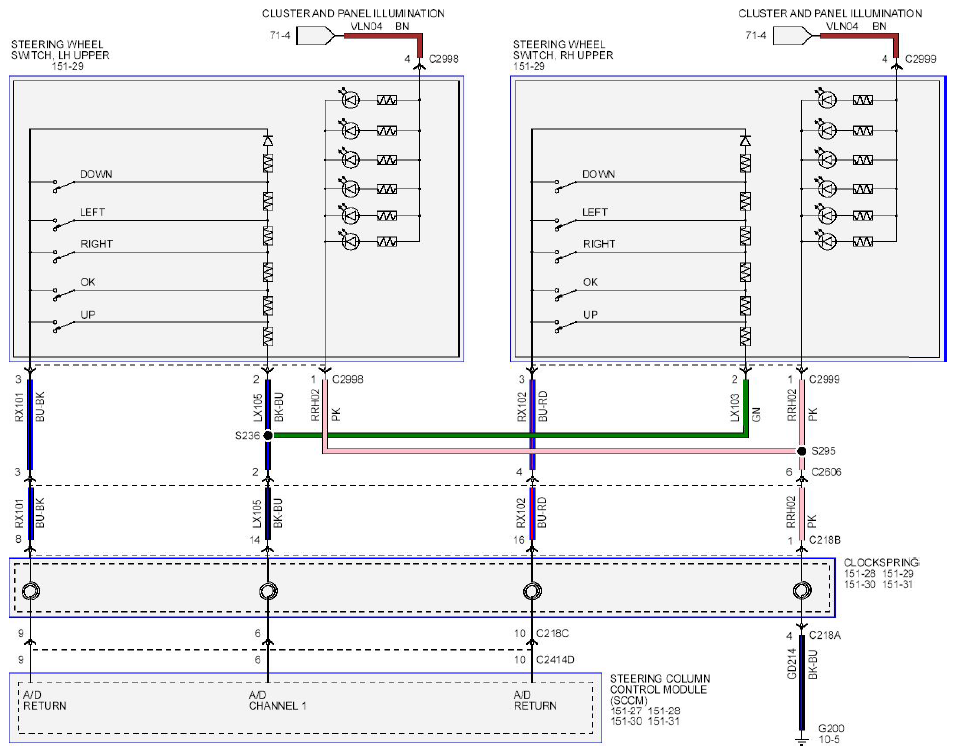

Fig 2: Audio System_Navigation Wiring Diagram - Fusion (2 Of 2)
G08745501Courtesy of FORD MOTOR CO.
