Audio System/Navigation: Fusion/MKZ

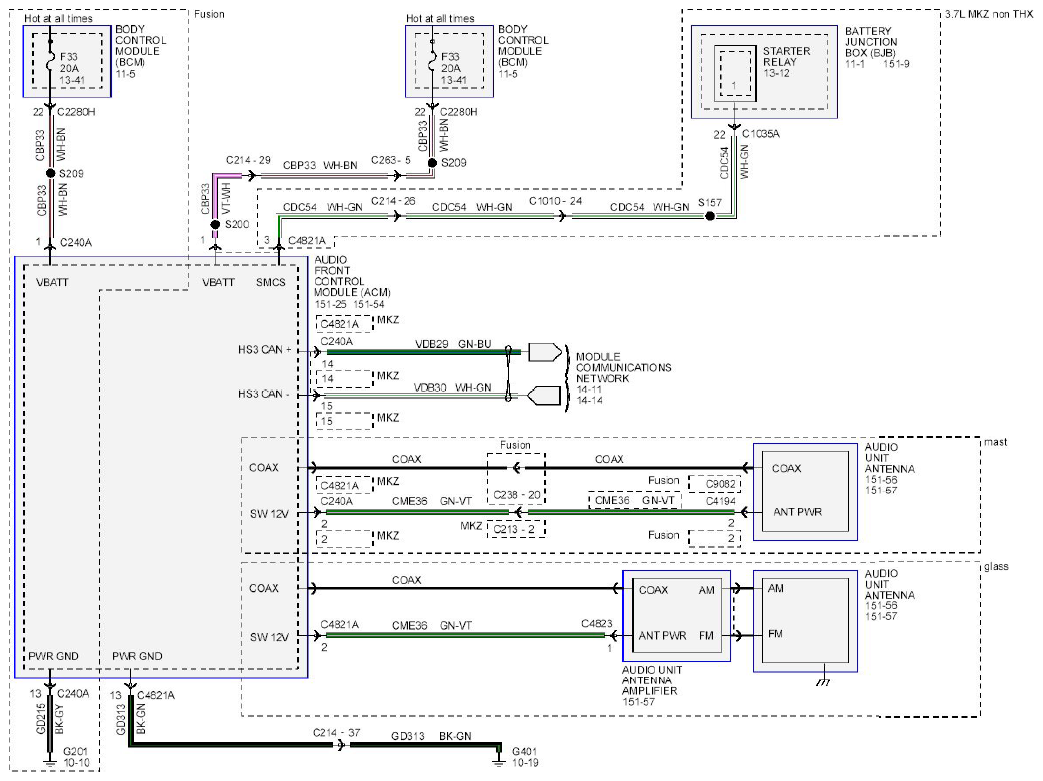

Fig 1: Audio System_Navigation Wiring Diagram - FUSION/MKZ

G08745476

Courtesy of FORD MOTOR CO.
