Audio System/Navigation: Base-MKZ

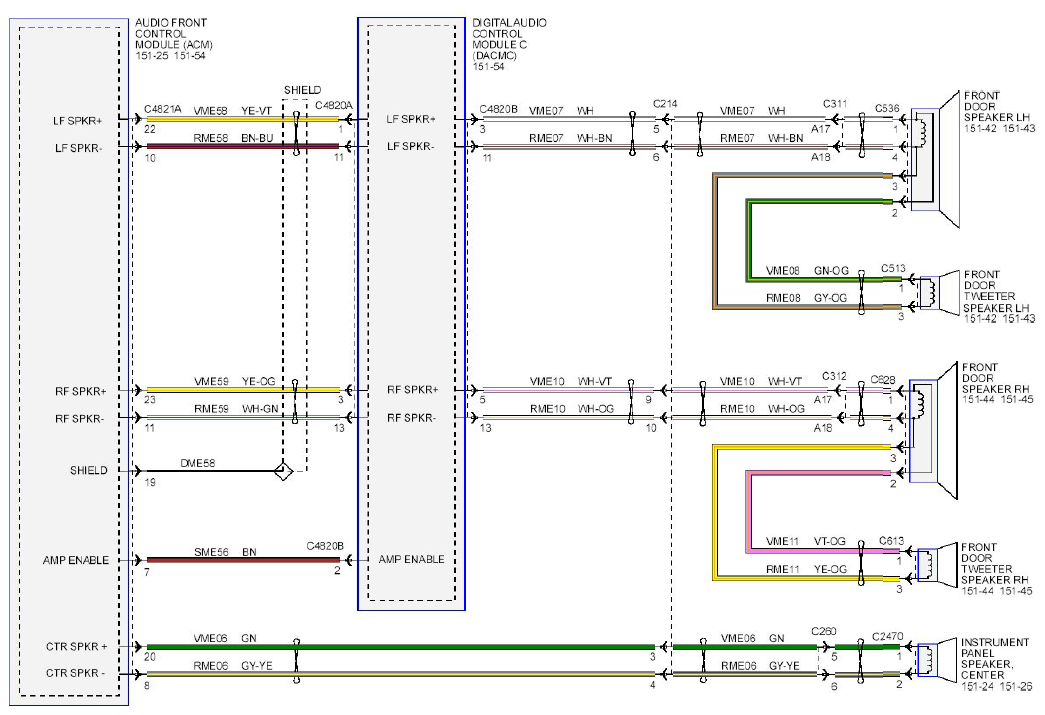

Fig 1: Audio System_Navigation Wiring Diagram - BASE-MKZ (1 Of 3)
G08745481Courtesy of FORD MOTOR CO.

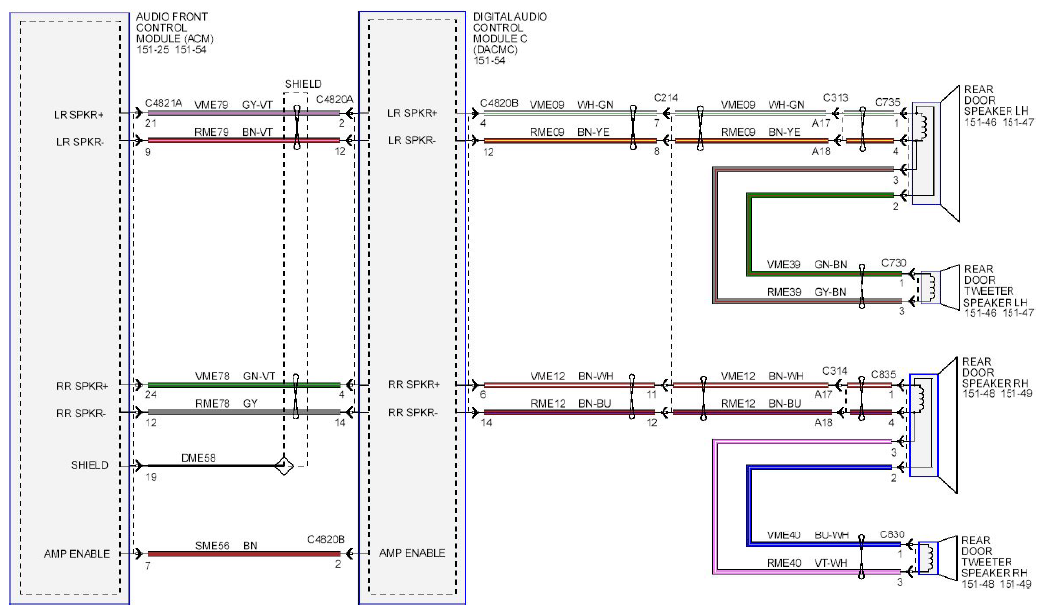

Fig 2: Audio System_Navigation Wiring Diagram - BASE-MKZ (2 Of 3)
G08745482Courtesy of FORD MOTOR CO.

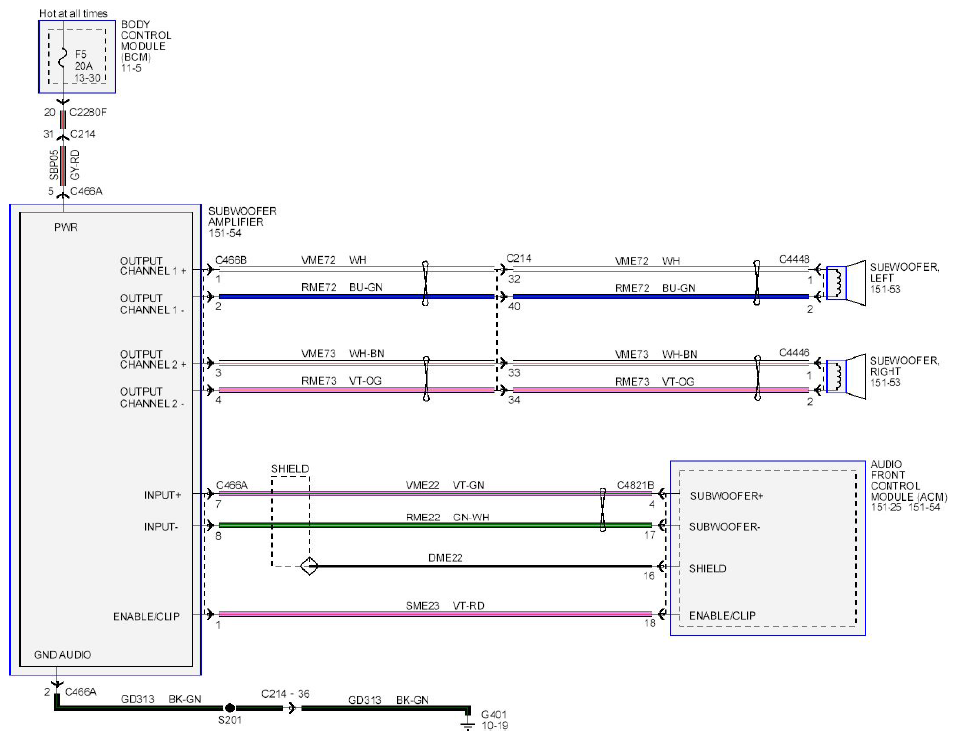

Fig 3: Audio System_Navigation Wiring Diagram - BASE-MKZ (3 Of 3)
G08745483Courtesy of FORD MOTOR CO.
