Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Audio System/Navigation >> Base/Mid - Fusion

Base/Mid - Fusion

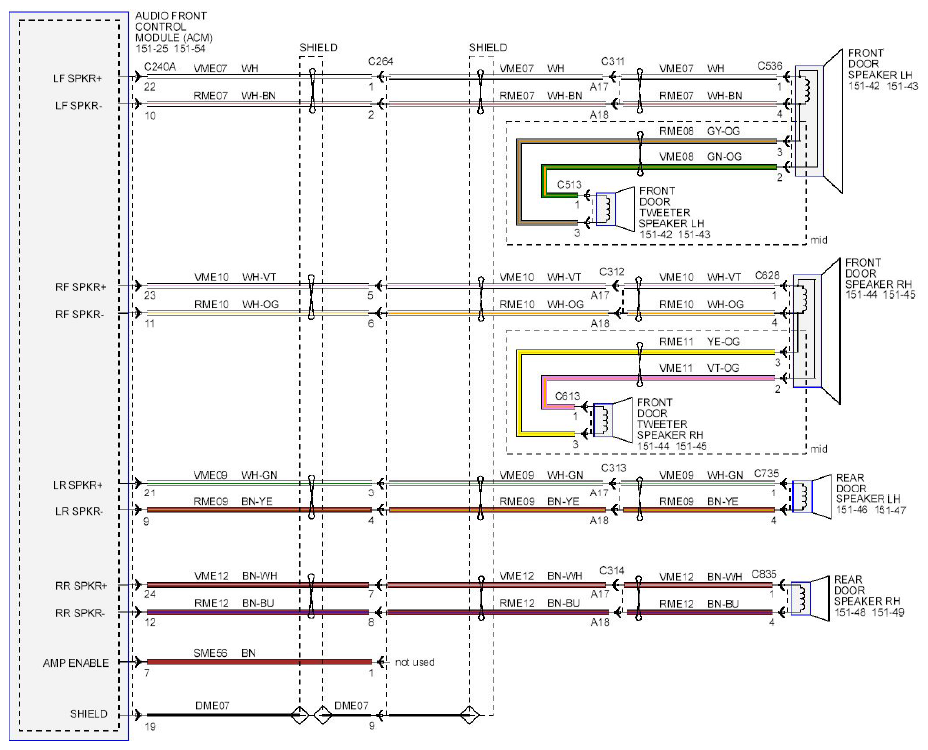

Fig 1: Audio System_Navigation Wiring Diagram - BASE/MID (FUSION)

G08745480

Courtesy of FORD MOTOR CO.
