Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Adjustable Steering Column
Adjustable Steering Column

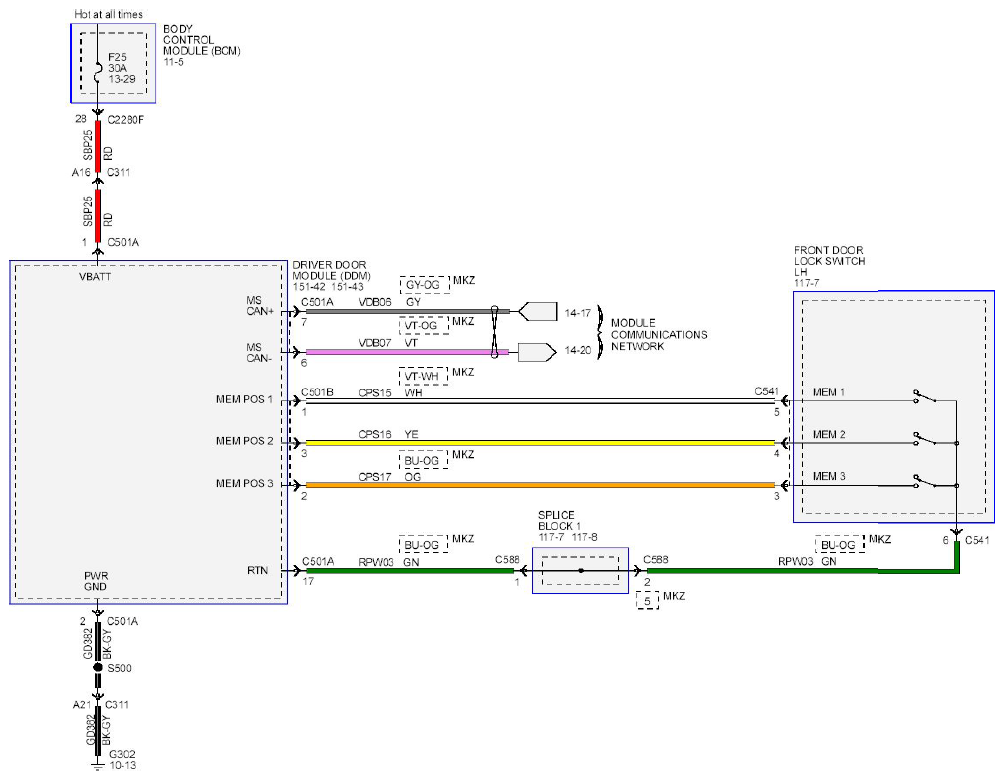

Fig 1: Adjustable Steering Column Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

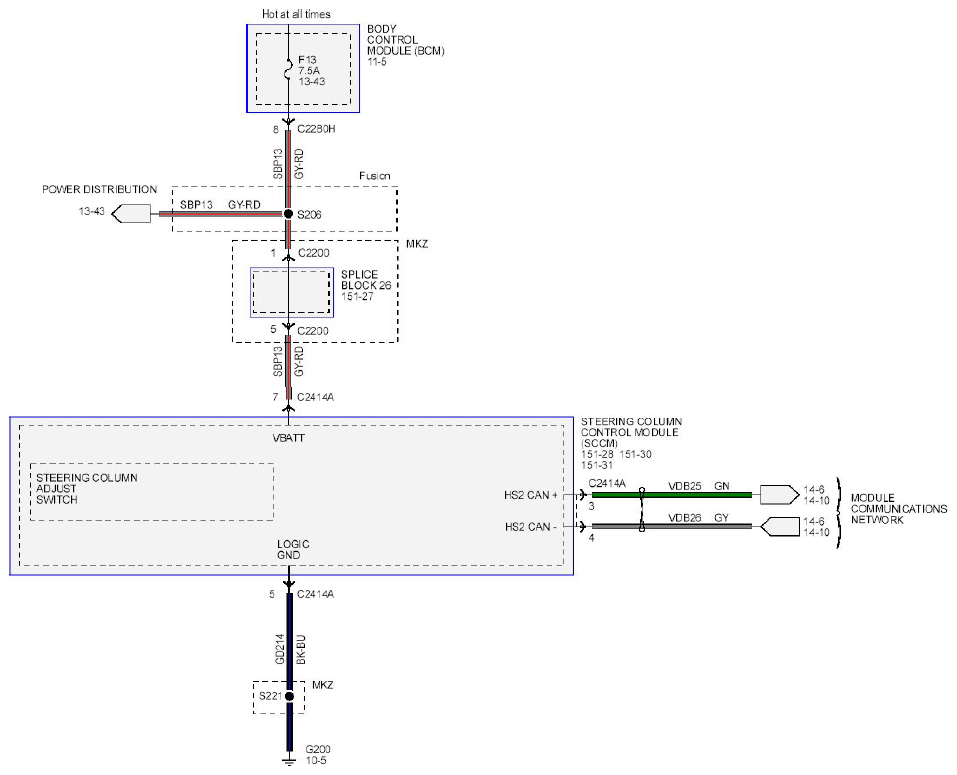

Fig 2: Adjustable Steering Column Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.
Fig 3: Adjustable Steering Column Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

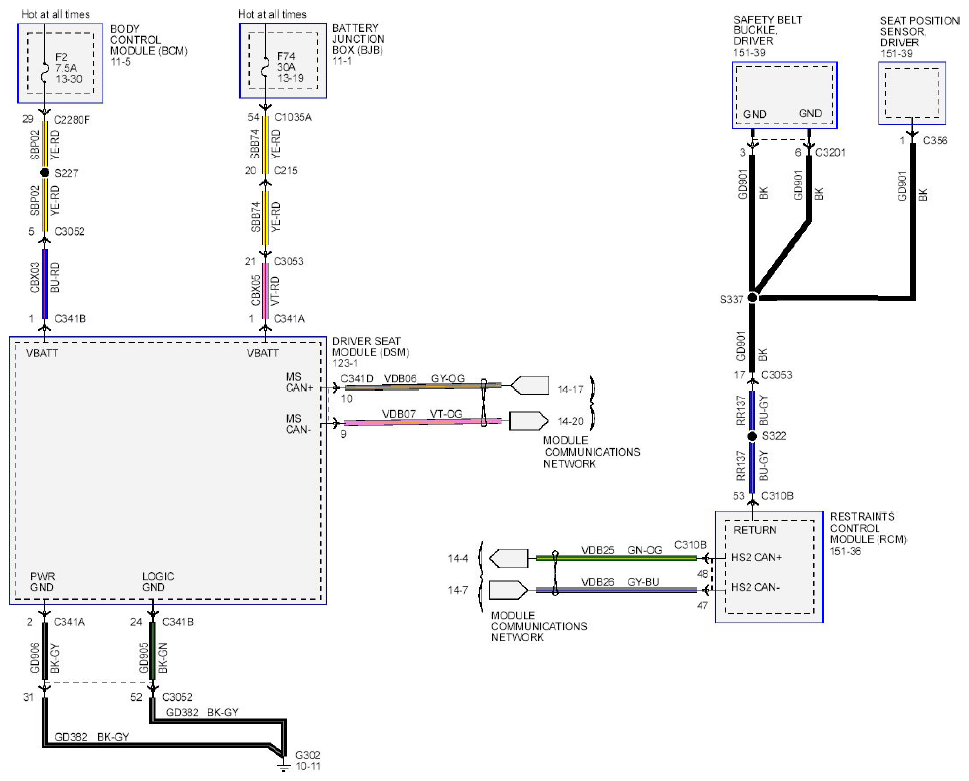

Fig 4: Adjustable Steering Column Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

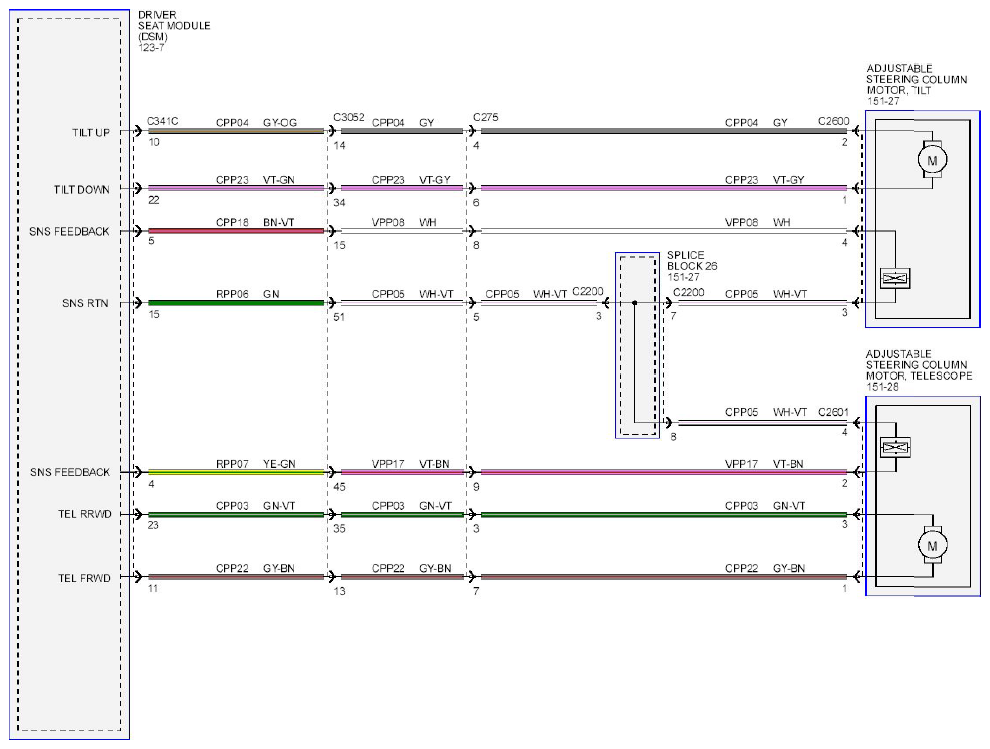

Fig 5: Adjustable Steering Column Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
