Splice Block 12 Connector End View (C3527)

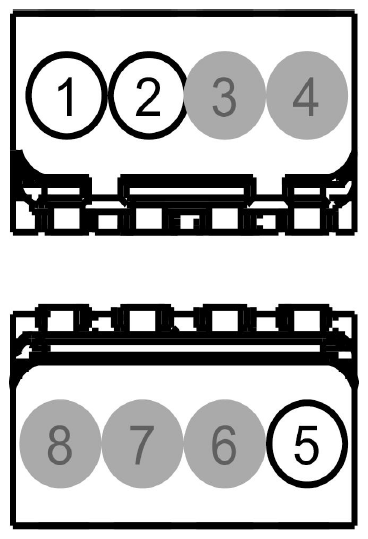

Fig 1: Identifying Splice Block 12 Connector End View (C3527)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RHS41 (GN-BN)	20	CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP
2	RHS41 (GN-BN)	20	CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP
3	*	*	Not Used
4	*	*	Not Used
5	RHS41 (GN-BN)	20	CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
