Side Obstacle Detection Control Module - Left (Sod-L) Connector End View (C4369)

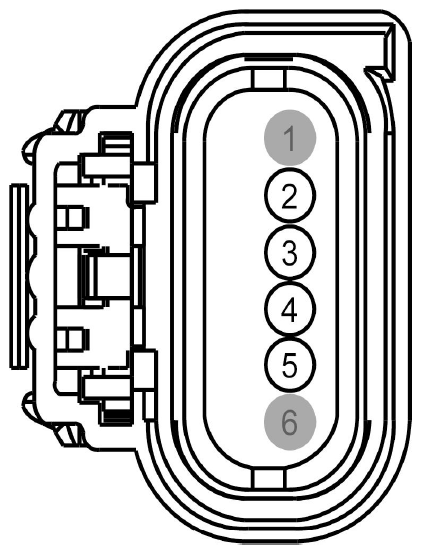

Fig 1: Identifying Side Obstacle Detection Control Module - LEFT (SOD-L) Connector End View (C4369)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER
3	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
4	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
5	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT
6	*	*	Not Used
