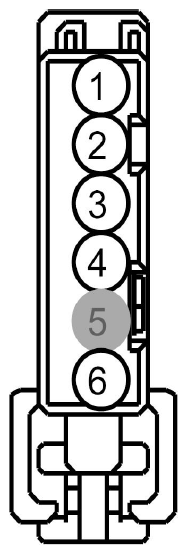

Radio Transceiver Module (RTM) Connector End View (C9026)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD382 (BK-GY) | 26 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | |
| 2 | VPL56 (BU) | 26 | RECEIVER - REMOTE RF | |
| 3 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 5 | * | * | Not Used | |
| 6 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|

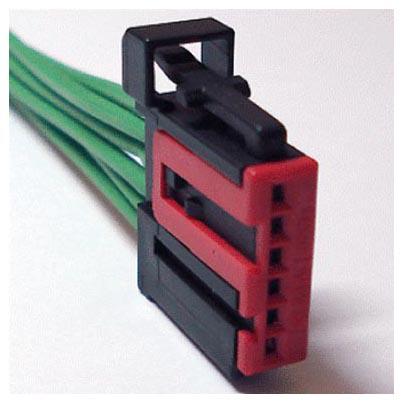

| Pigtail Kit Part Number WPT-873 | Service Part Number: 6U2Z-14S411-LA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses
|

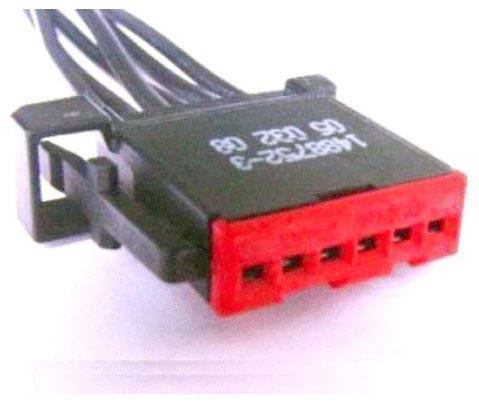

| Pigtail Kit Part Number WPT-958 | Service Part Number: 6U2Z-14S411-LB Gauge: 18 20 Pin material: Tin & Silver Cavities: 6 Vehicle Uses
|
