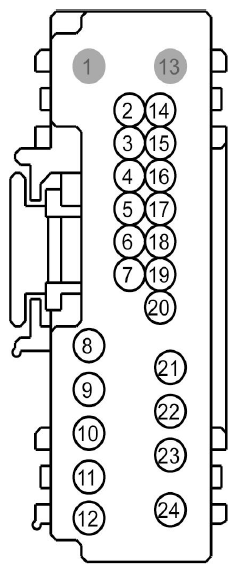

Audio Digital Signal Processing (DSP) Module Connector End View (C4452C)

Fig 1: Identifying Audio Digital Signal Processing Module Connector End View (C4452C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	RME28 (BN-GN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP -
3	RME02 (YE)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 -
4	RME01 (GY)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 -
5	RME12 (BN-BU)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -
6	RME09 (BN-YE)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -
7	RME39 (GY-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER -
8	RME40 (VT-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER -
9	SBP05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER
10	SBP05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER
11	SBP28 (GN-RD)	16	FUSE - 28 OR CIRCUIT BREAKER
12	SBP28 (GN-RD)	16	FUSE - 28 OR CIRCUIT BREAKER
13	*	*	Not Used
14	VME28 (BN-VT)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP +
15	VME02 (VT)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 +
16	VME01 (GN-VT)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 +
17	VME12 (BN-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +
18	VME09 (WH-GN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +
19	VME39 (GN-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER +
20	VME40 (BU-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER +
21	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
22	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
23	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
24	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT

Available Pigtail Kits
Pigtail Kit Part Number WPT-1033	Service Part Number: 9U2Z-14S411-YA  Gauge: 12 14 18  Pin material: Tin & Silver  Cavities: 24  Vehicle Uses Module - Driver Door Module - Seat Memory Radio Radio - Amplifier
