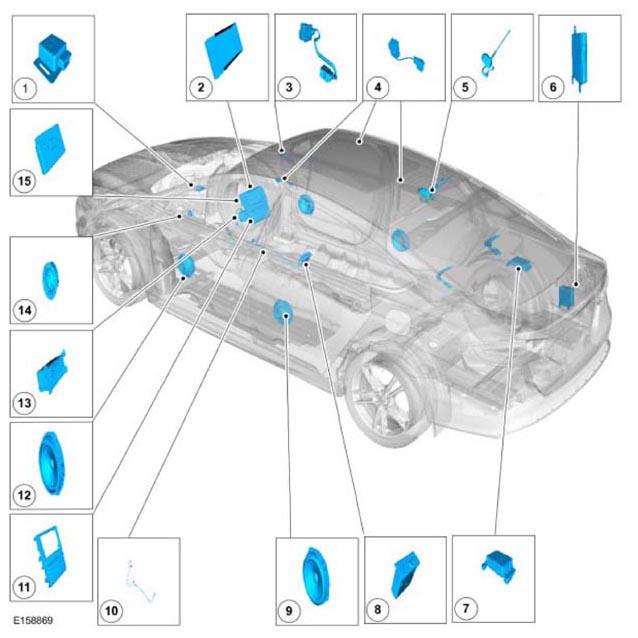

Information and Entertainment System - Component Location
Information and Entertainment System - Component Location
Item
Description
1
GPSM
2
FDIM
3
SYNC® microphone
4
Noise cancellation microphone
5
Antenna
6
DACMC
7
TCU
-
PHEV
8
Media hub
9
Speaker - rear door
10
USB
11
FCIM
12
Speaker - front door
13
ACM
14
Speaker - front door tweeter
15
APIM
