Information System And Entertainment System - Am/Fm/Cd/Sync (Except Hybrid)
>>
Description and Operation
>>

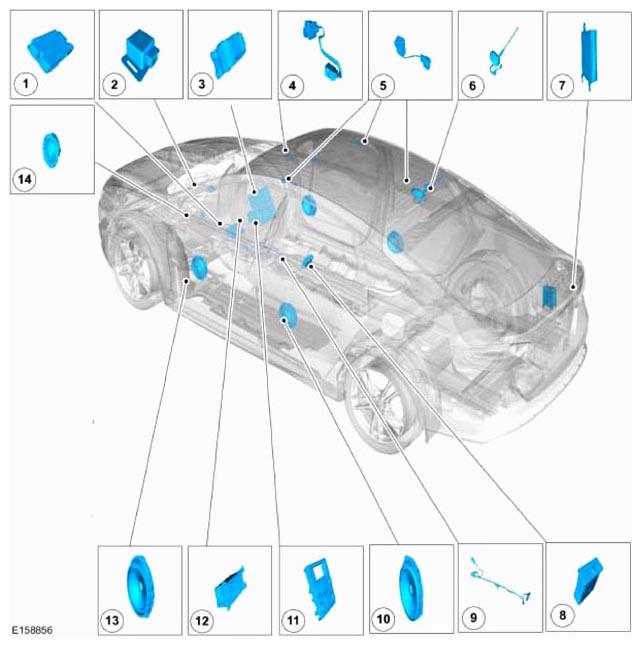

Information and Entertainment System - Component Location
Information and Entertainment System - Component Location
Item
Description
1
APIM
2
GPSM
3
FCDIM
4
SYNC® microphone
5
Noise cancellation microphones
6
Antenna
7
DACMC
8
USB
port
9
USB
cable
10
Speaker - rear door
11
FCIM
12
ACM
13
Speaker - front door
14
Speaker - front door tweeter
