Vehicle Dynamic Suspension

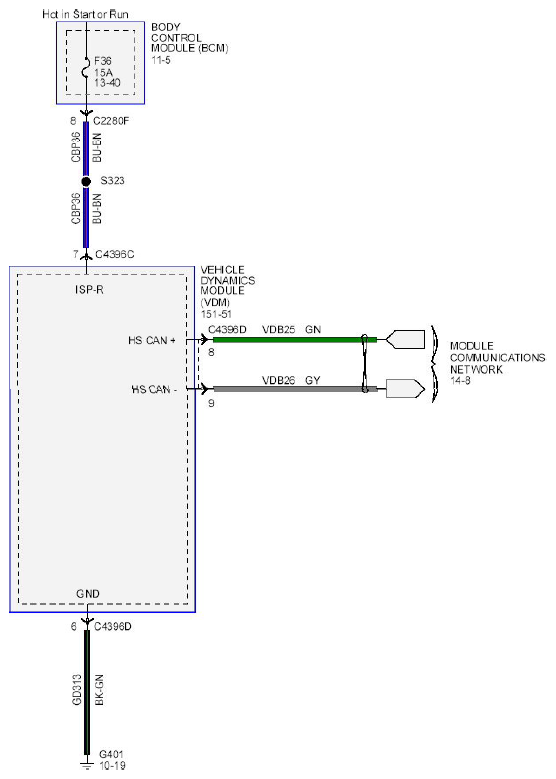

Fig 1: Vehicle Dynamic Suspension Wiring Diagram (1 Of 3)
G08745331Courtesy of FORD MOTOR CO.

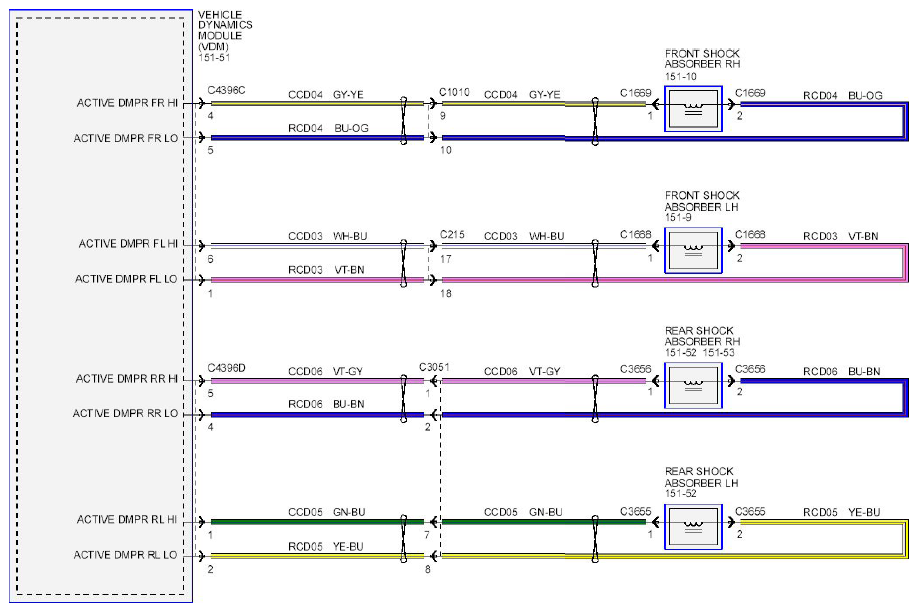

Fig 2: Vehicle Dynamic Suspension Wiring Diagram (2 Of 3)
G08745332Courtesy of FORD MOTOR CO.

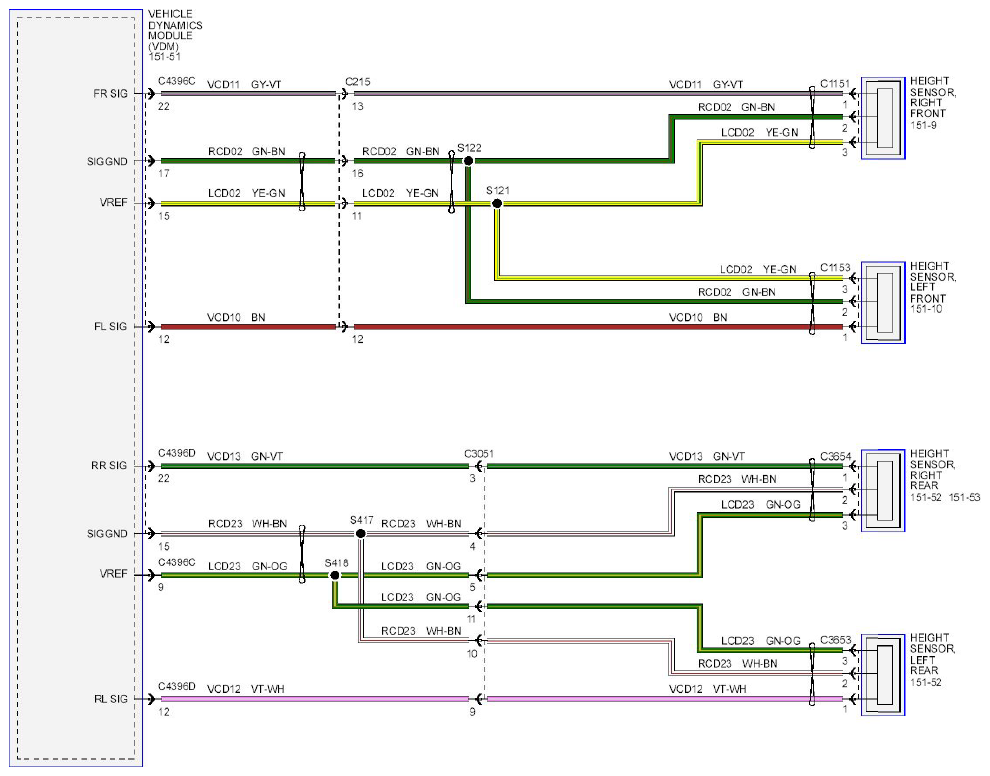

Fig 3: Vehicle Dynamic Suspension Wiring Diagram (3 Of 3)
G08745333Courtesy of FORD MOTOR CO.
