Led Headlamps

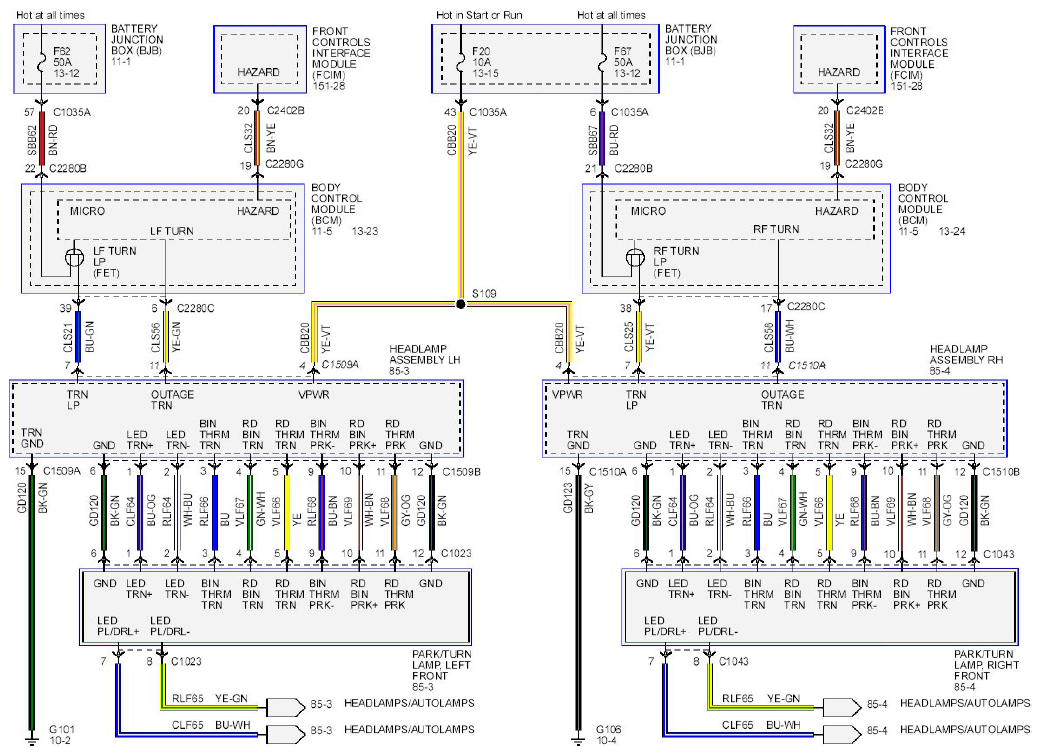

Fig 1: LED Headlamps - Wiring Diagram (1 Of 4)
G08745398Courtesy of FORD MOTOR CO.

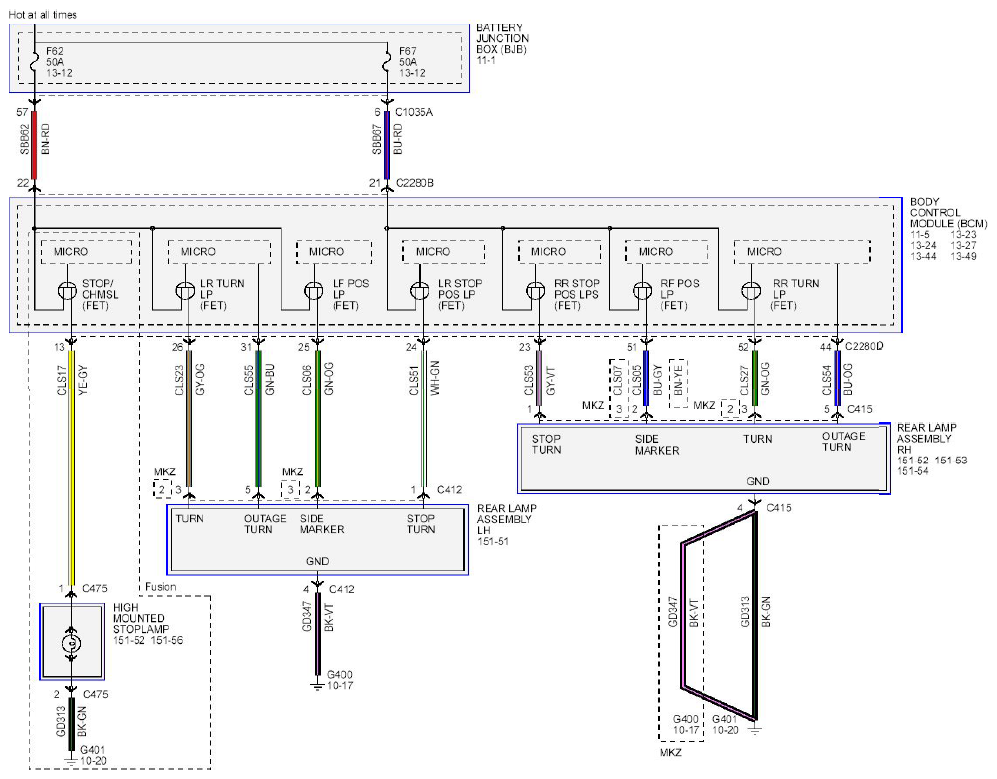

Fig 2: LED Headlamps - Wiring Diagram (2 Of 4)
G08745399Courtesy of FORD MOTOR CO.
Fig 3: LED Headlamps - Wiring Diagram (3 Of 4)
G08745400Courtesy of FORD MOTOR CO.

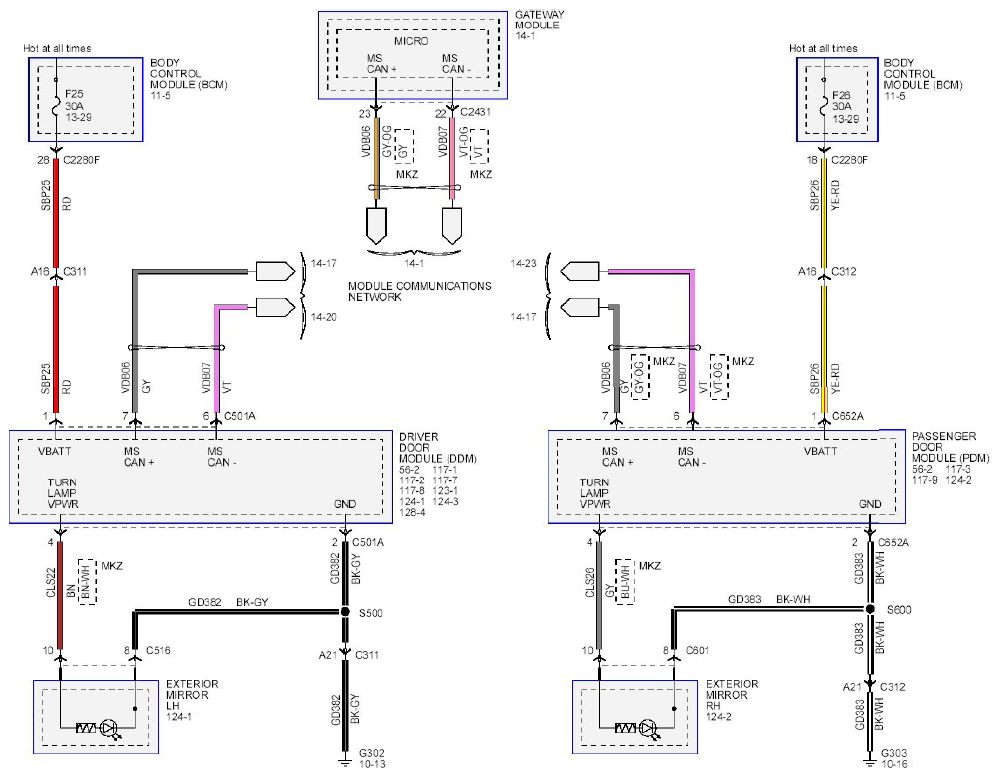

Fig 4: LED Headlamps - Wiring Diagram (4 Of 4)
G08745401Courtesy of FORD MOTOR CO.
