Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- (Except Hybrid) >> Supplemental Restraint System >> With Rear Inflatable Safety Belts

With Rear Inflatable Safety Belts

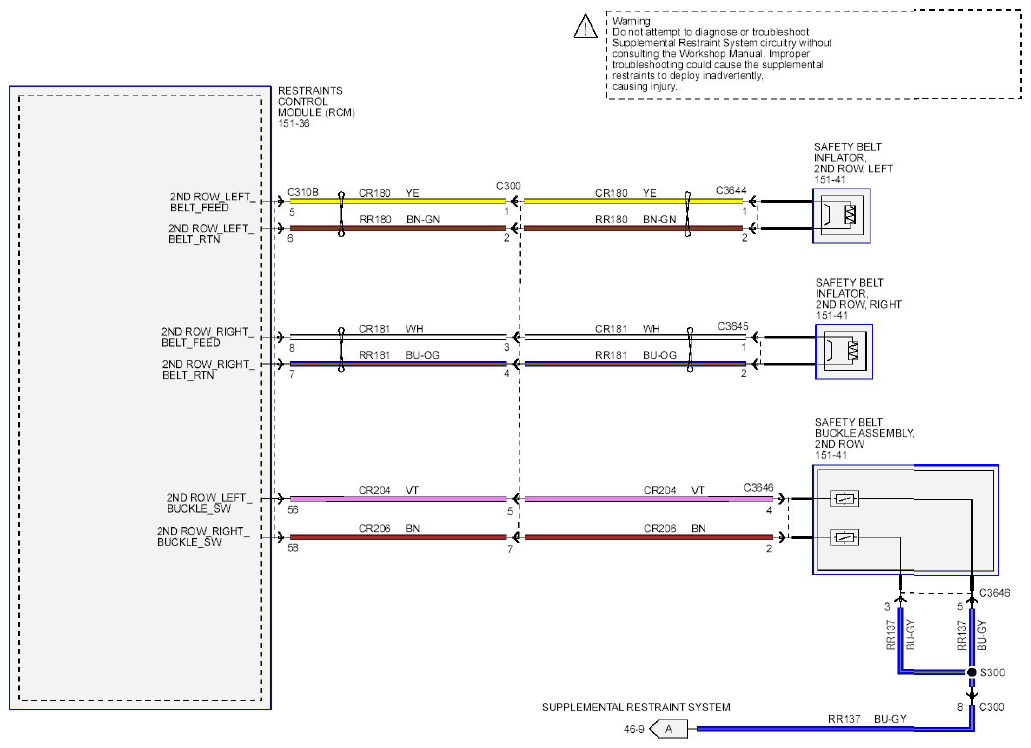

Fig 1: Supplemental Restraint System Wiring Diagram - With Rear Inflatable Safety Belts (1 Of 4)
G08745347Courtesy of FORD MOTOR CO.

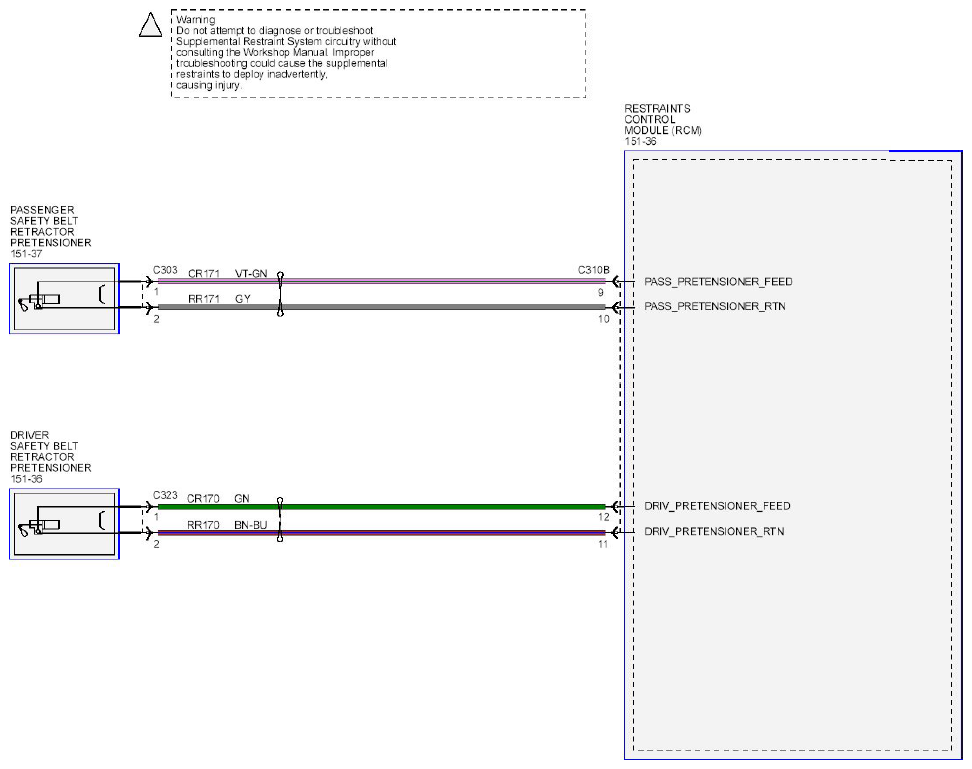

Fig 2: Supplemental Restraint System Wiring Diagram - With Rear Inflatable Safety Belts (2 Of 4)
G08745348Courtesy of FORD MOTOR CO.

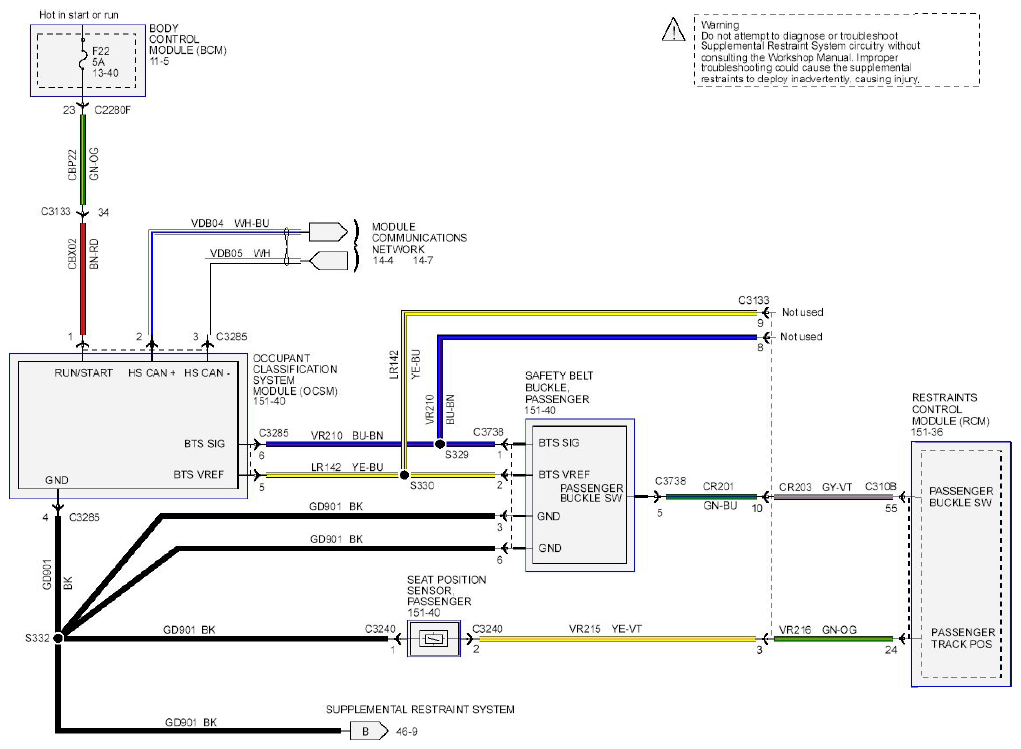

Fig 3: Supplemental Restraint System Wiring Diagram - With Rear Inflatable Safety Belts (3 Of 4)
G08745349Courtesy of FORD MOTOR CO.

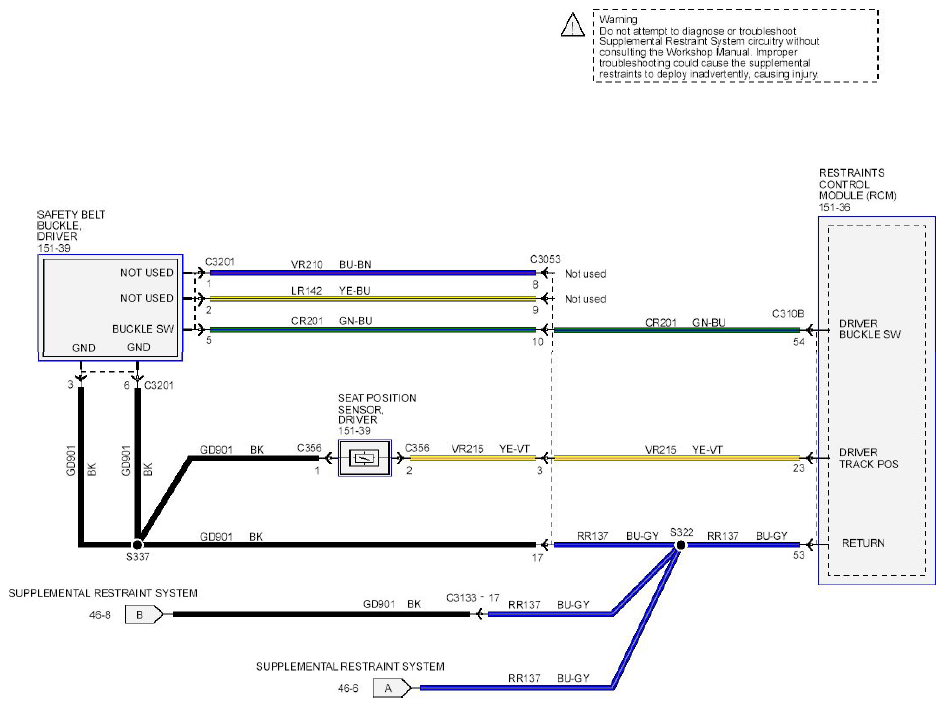

Fig 4: Supplemental Restraint System Wiring Diagram - With Rear Inflatable Safety Belts (4 Of 4)
G08745350Courtesy of FORD MOTOR CO.
