Fusion Titanium, FWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Remote Keyless Entry and Alarm
>>
Manual Luggage Compartment
Manual Luggage Compartment

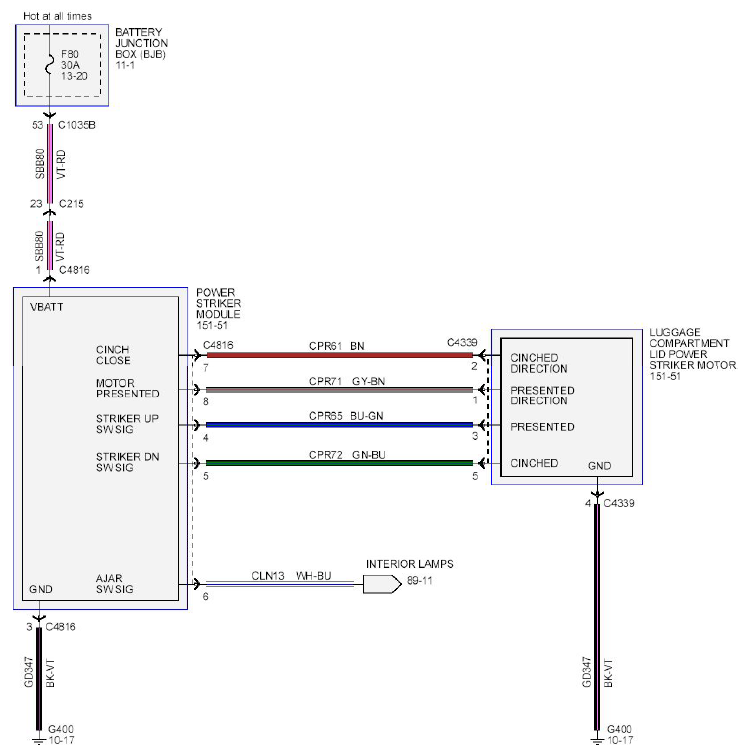

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - Manual Luggage Compartment (1 Of 2)
Courtesy of FORD MOTOR CO.

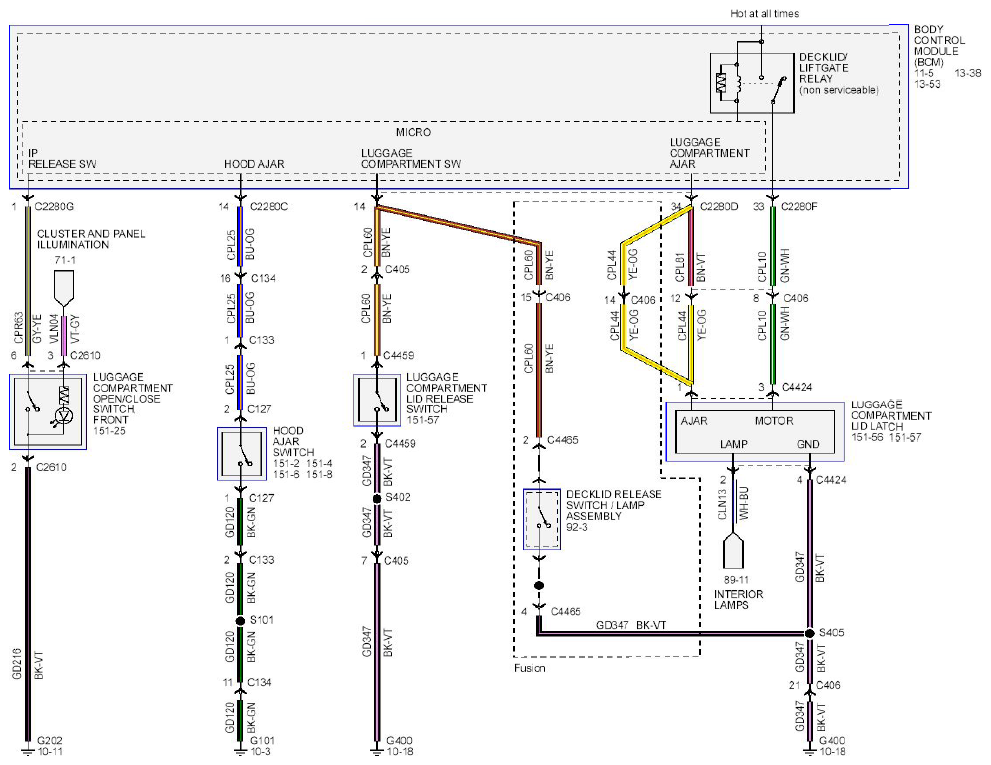

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - Manual Luggage Compartment (2 Of 2)
Courtesy of FORD MOTOR CO.
