Fusion Power Seat - Passenger

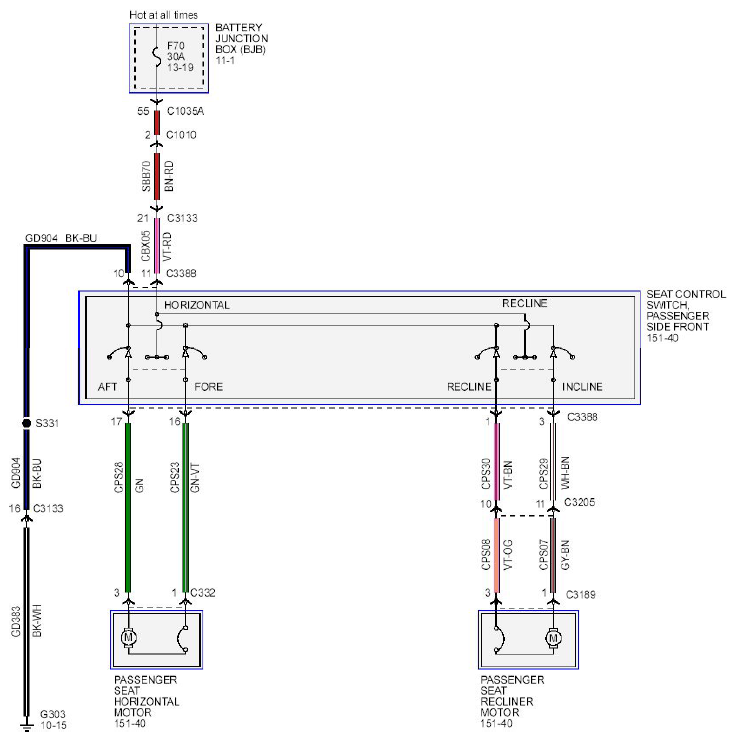

Fig 1: Power Seats Wiring Diagram - Fusion Power Seat (Passenger)

G08745457

Courtesy of FORD MOTOR CO.
