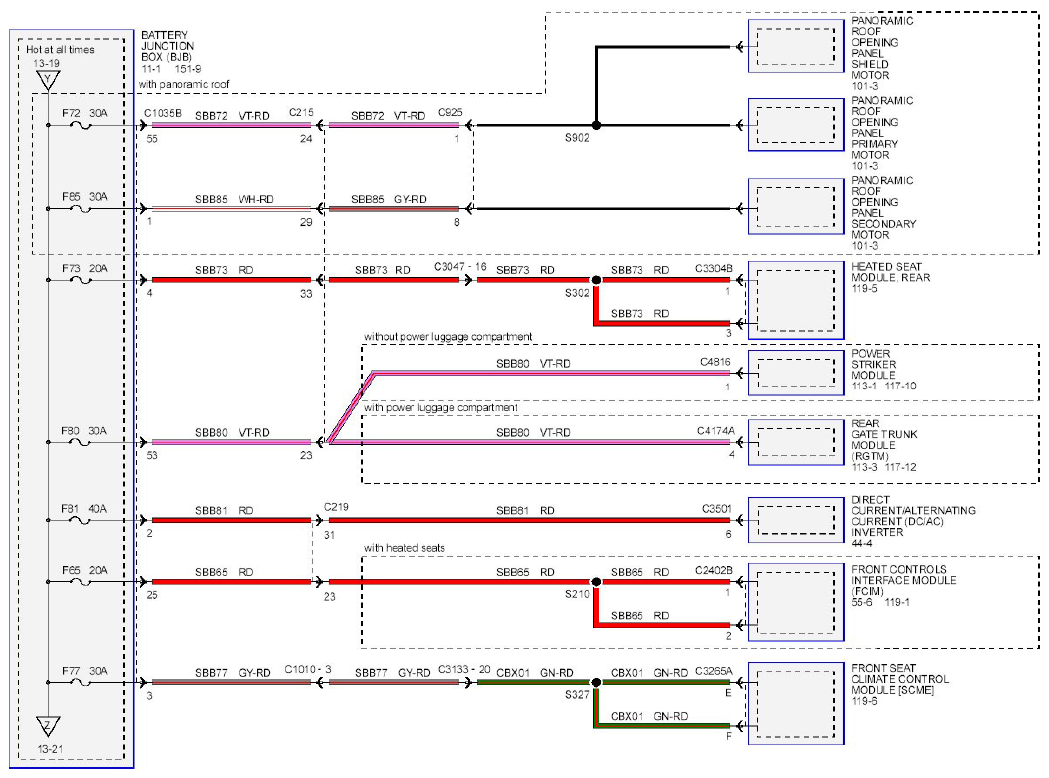

Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- (Except Hybrid) >> Power Distribution >> F65, F72, F73, F77, F80, F81, F85
