Fusion Titanium, FWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F17, F25, F26, F27, F29, F30
F17, F25, F26, F27, F29, F30

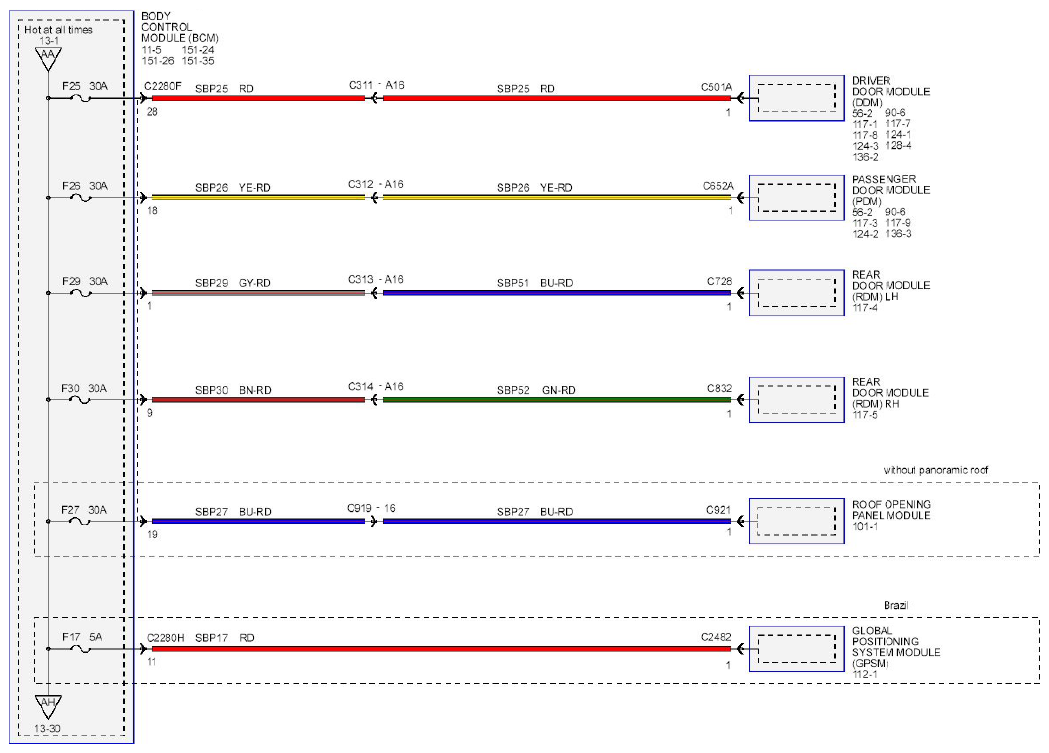

Fig 1: Power Distribution Wiring Diagram - F17, F25, F26, F27, F29, F30
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
