Parking, Rear and License Lamps: MKZ

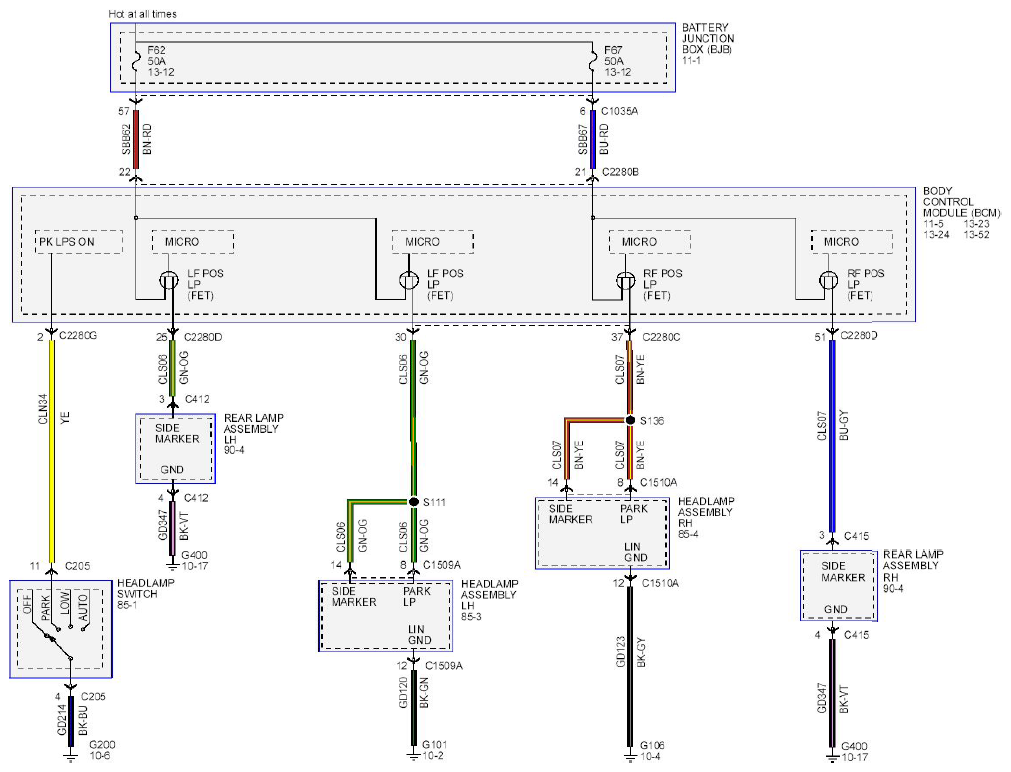

Fig 1: MKZ - Wiring Diagram (1 Of 2)

G08745403

Courtesy of FORD MOTOR CO.

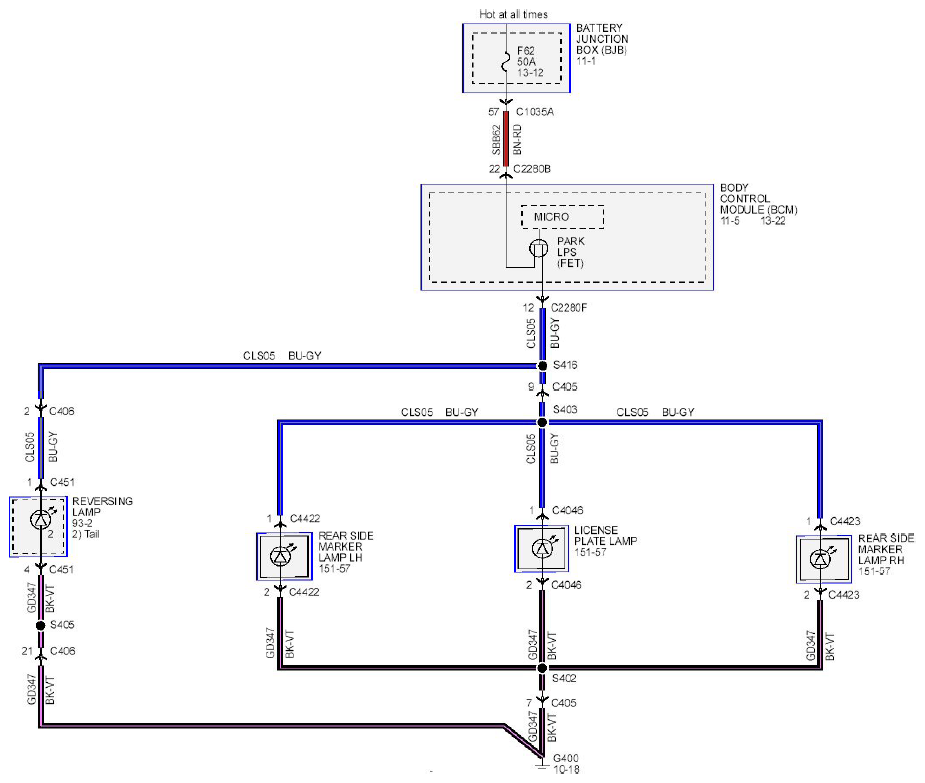

Fig 2: MKZ - Wiring Diagram (2 Of 2)

G08745405

Courtesy of FORD MOTOR CO.
