Parking, Rear and License Lamps: Fusion

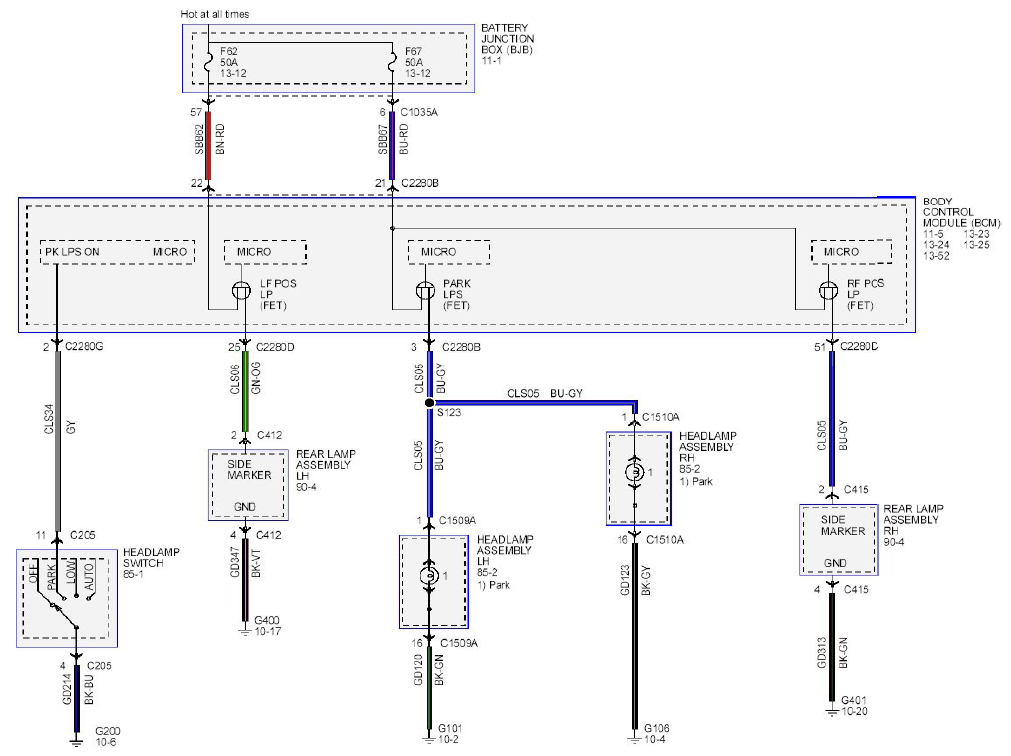

Fig 1: Fusion - Wiring Diagram (1 Of 2)

G08745402

Courtesy of FORD MOTOR CO.

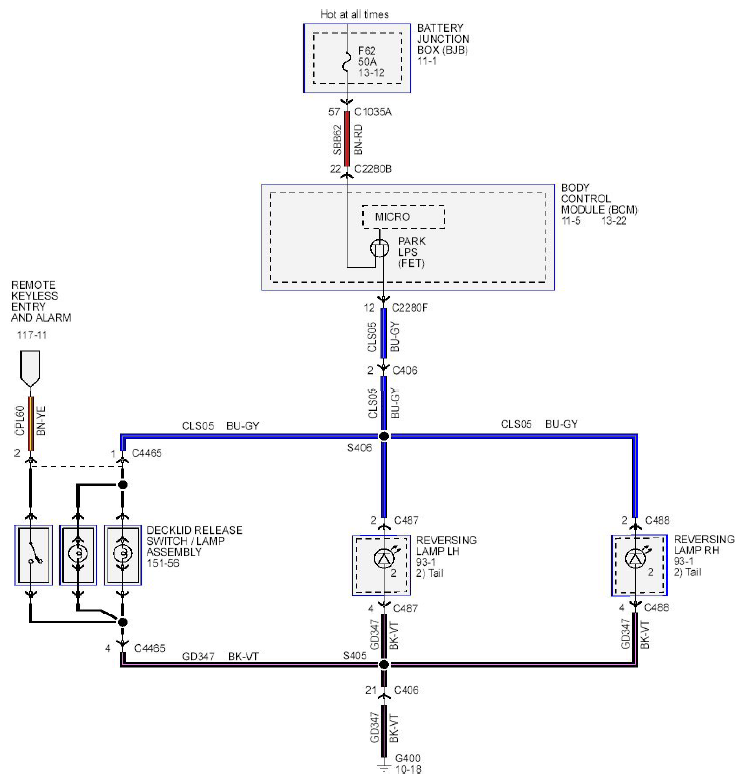

Fig 2: Fusion - Wiring Diagram (2 Of 2)

G08745404

Courtesy of FORD MOTOR CO.
