Wiring Diagrams
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Parking Aid
>>
With Rear Video Camera
With Rear Video Camera

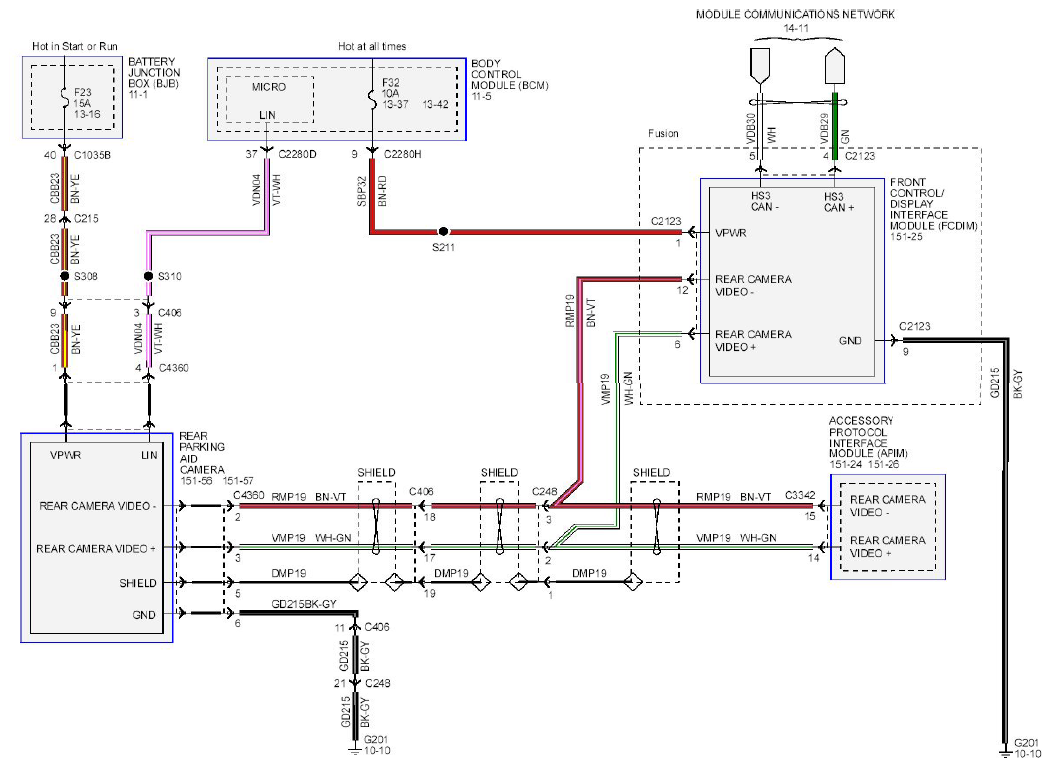

Fig 1: Parking Aid Wiring Diagram - With Rear Video Camera
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
