With Rear Parking Aid And Active Park Assist

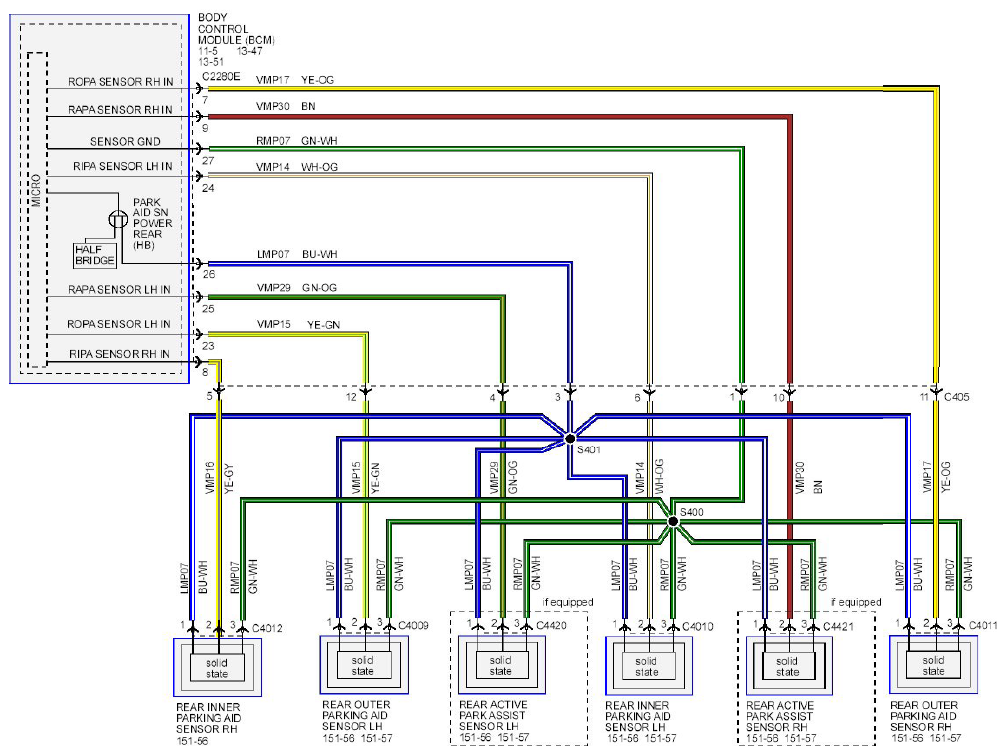

Fig 1: Parking Aid Wiring Diagram - With Rear Parking Aid And Active Park Assist

G08745504

Courtesy of FORD MOTOR CO.
