With Front Parking Aid And Active Park Assist

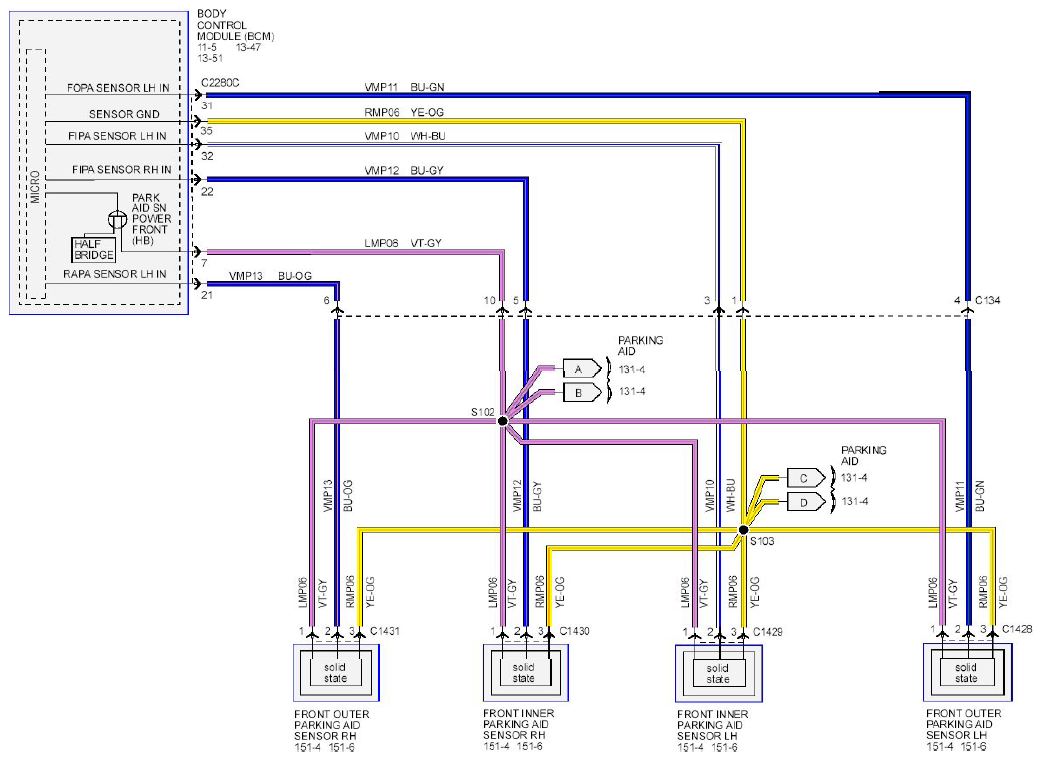

Fig 1: Parking Aid Wiring Diagram - With Front Parking Aid And Active Park Assist (1 Of 2)
G08745505Courtesy of FORD MOTOR CO.

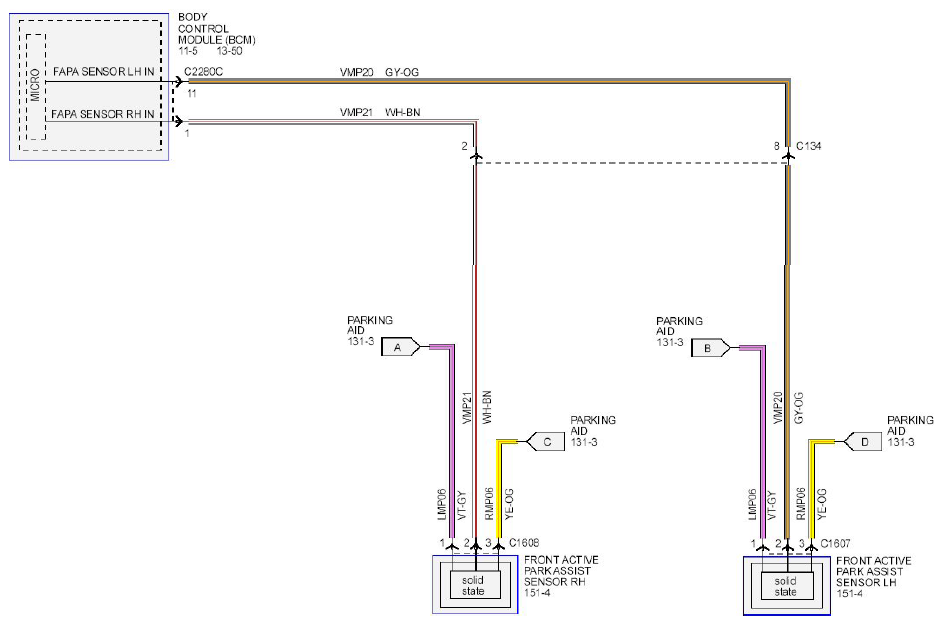

Fig 2: Parking Aid Wiring Diagram - With Front Parking Aid And Active Park Assist (2 Of 2)
G08745506Courtesy of FORD MOTOR CO.
