MKZ 10-Way Power Seat - Passenger

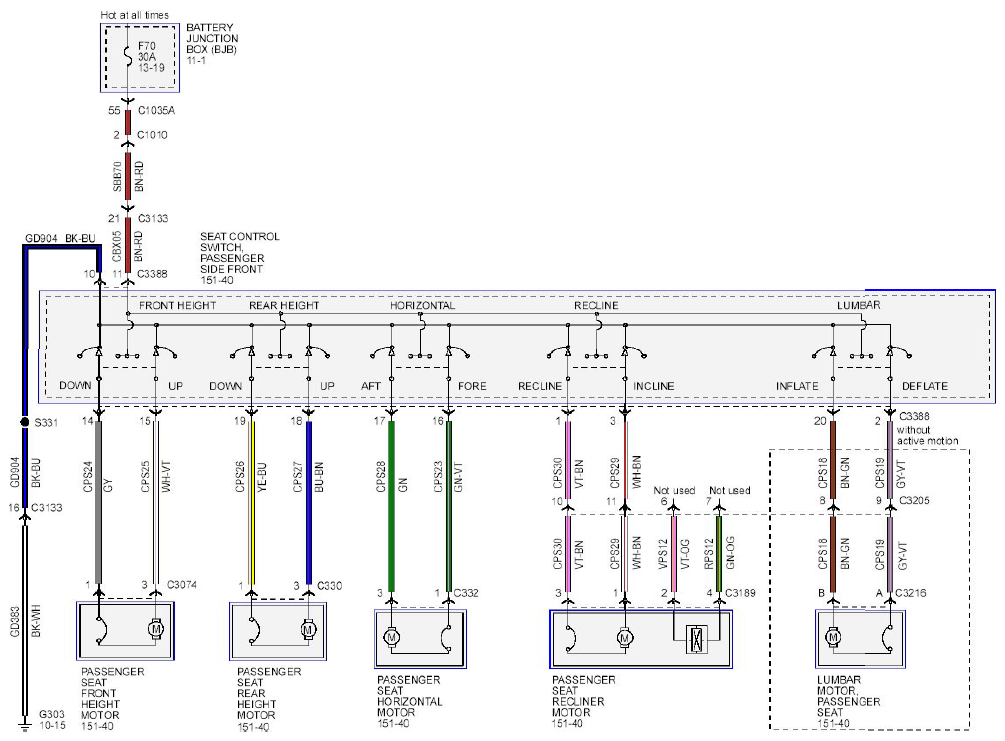

Fig 1: Memory Seats Wiring Diagram - MKZ 10-Way Power Seat With Memory (Passenger) (1 Of 3)
G08745463Courtesy of FORD MOTOR CO.

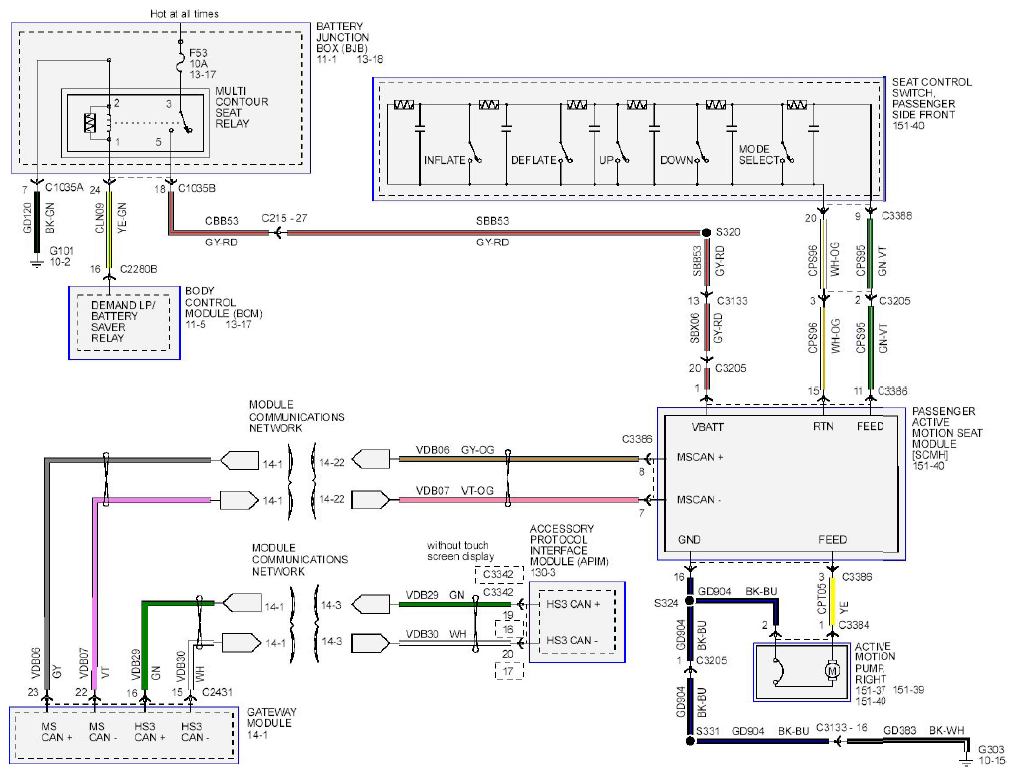

Fig 2: Memory Seats Wiring Diagram - MKZ 10-Way Power Seat With Memory (Passenger) (2 Of 3)
G08745464Courtesy of FORD MOTOR CO.
Fig 3: Memory Seats Wiring Diagram - MKZ 10-Way Power Seat With Memory (Passenger) (3 Of 3)
G08745465Courtesy of FORD MOTOR CO.
