Luggage Compartment
>>
Power Luggage Compartment
Power Luggage Compartment

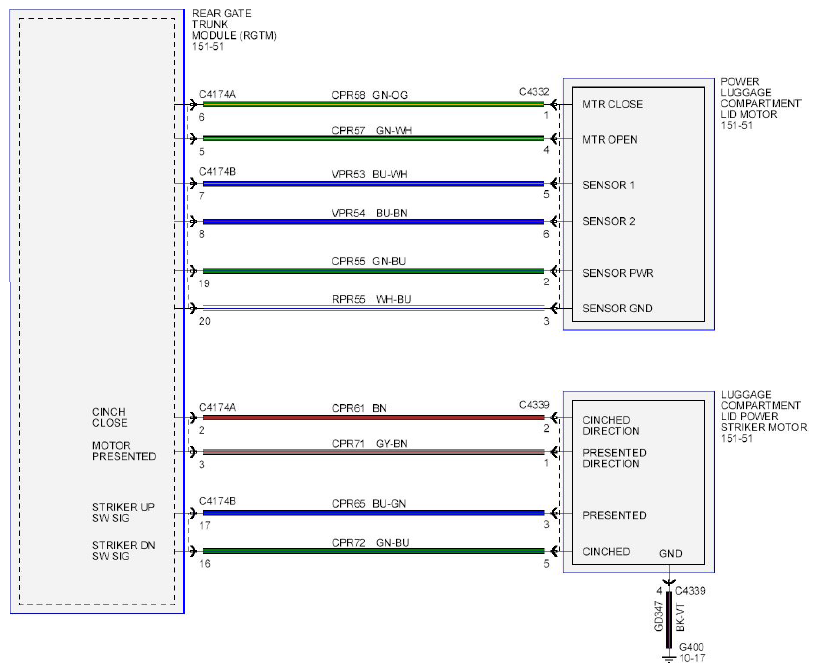

Fig 1: Power Luggage Compartment Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

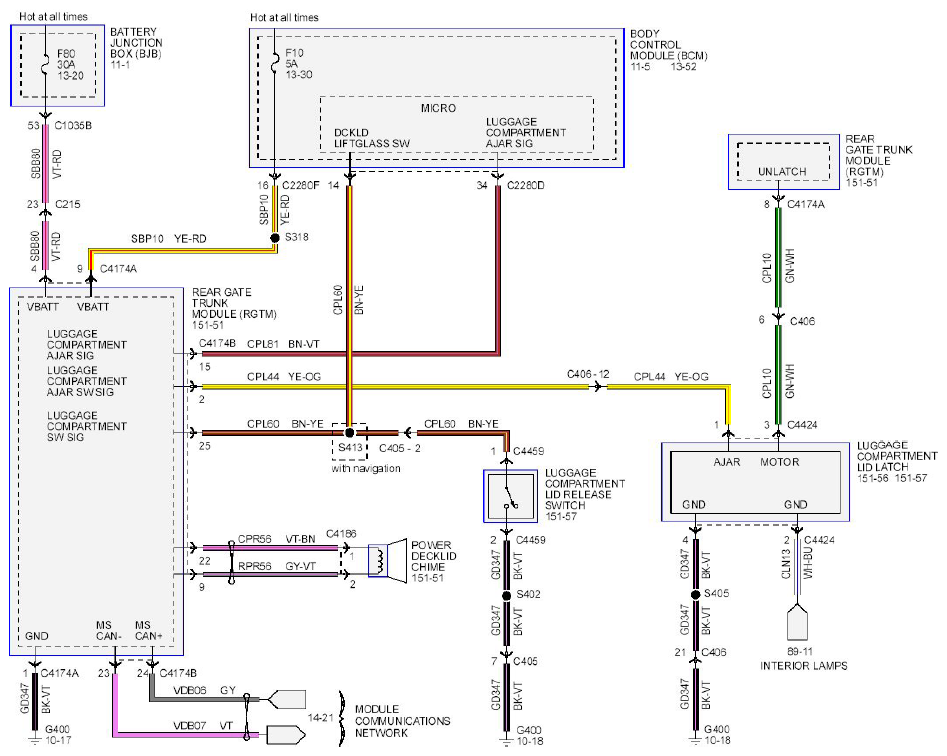

Fig 2: Power Luggage Compartment Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
