MKZ With Manual Luggage Compartment

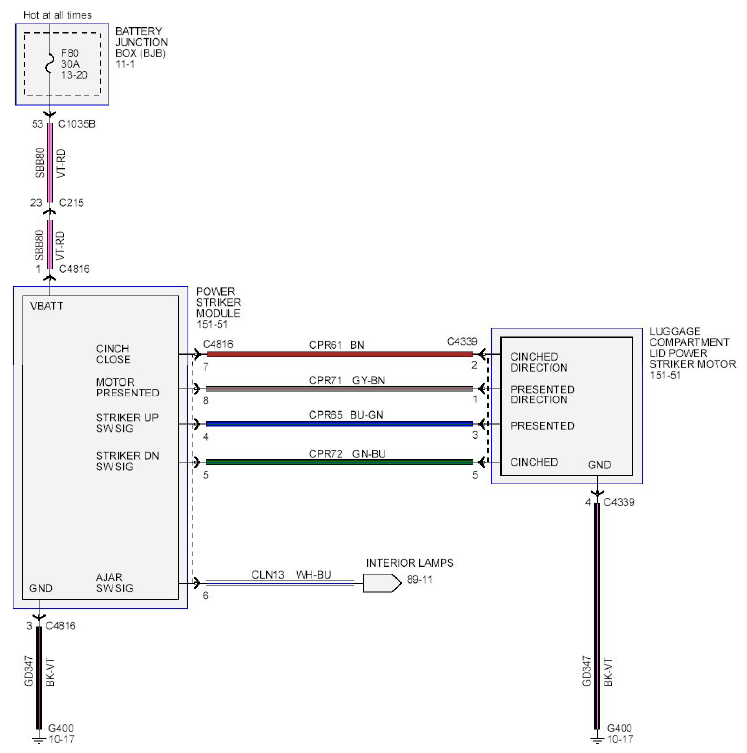

Fig 1: Luggage Compartment Wiring Diagram - MKZ With Manual Luggage Compartment (1 Of 2)
G08745422Courtesy of FORD MOTOR CO.

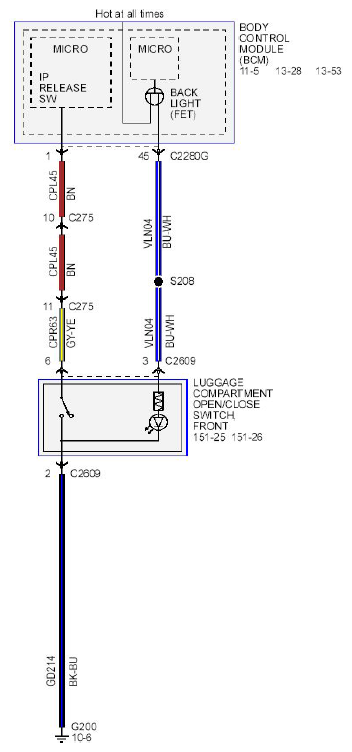

Fig 2: Luggage Compartment Wiring Diagram - MKZ With Manual Luggage Compartment (2 Of 2)
G08745427Courtesy of FORD MOTOR CO.
