Interior Lamps: MKZ

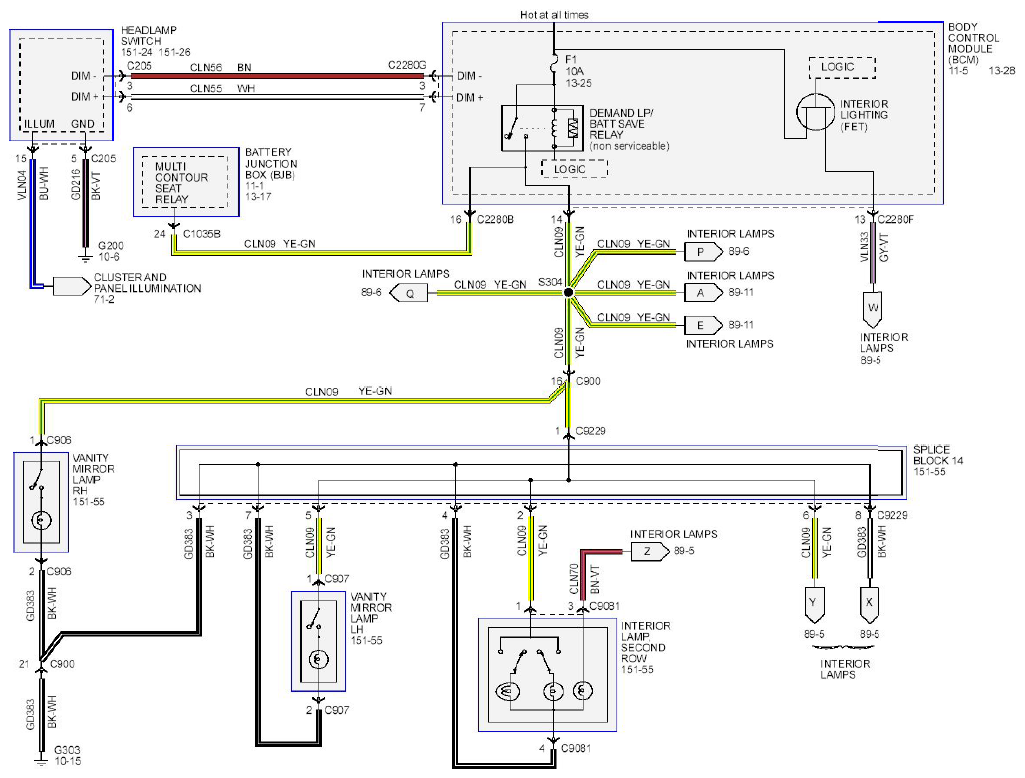

Fig 1: Interior Lamps Wiring Diagram - MKZ (1 Of 4)
G08745388Courtesy of FORD MOTOR CO.

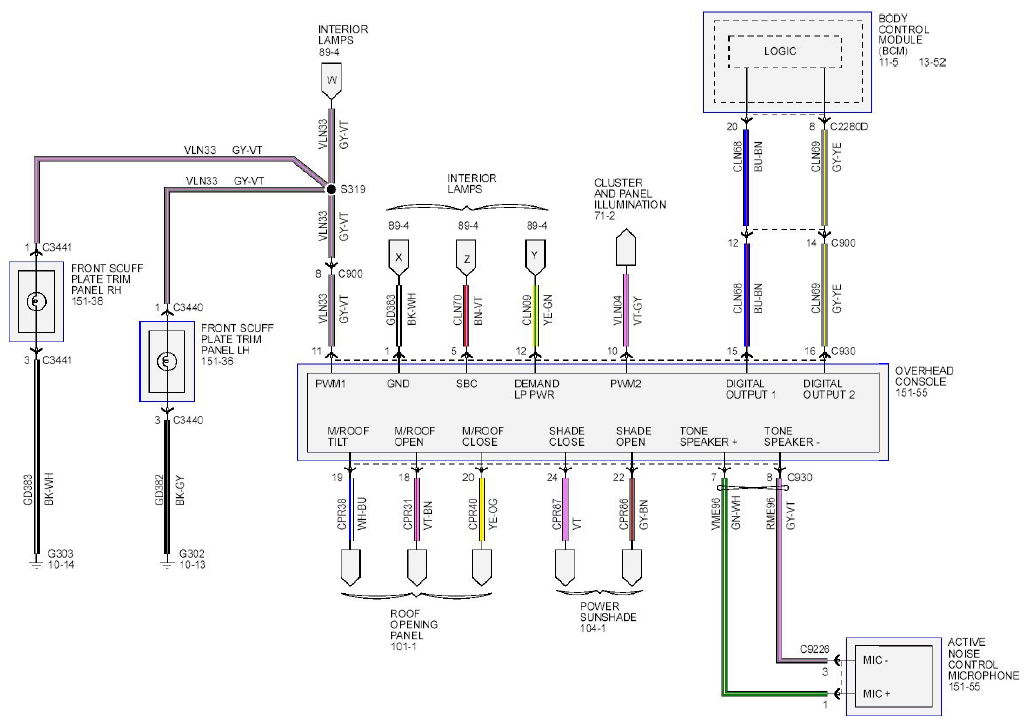

Fig 2: Interior Lamps Wiring Diagram - MKZ (2 Of 4)
G08745389Courtesy of FORD MOTOR CO.

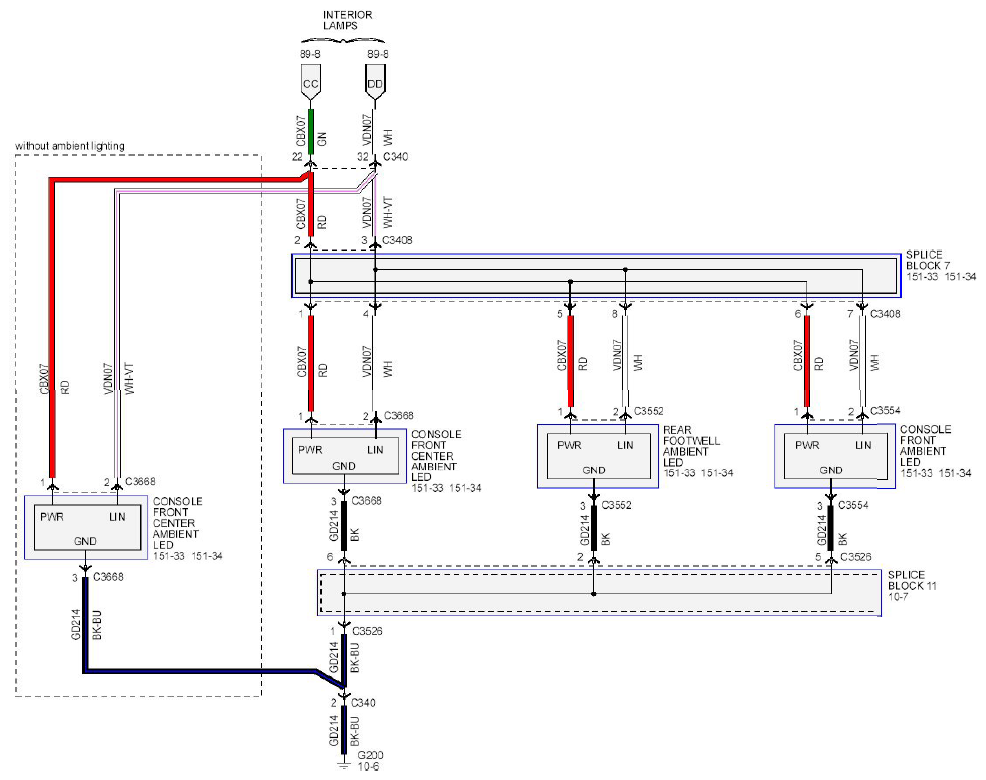

Fig 3: Interior Lamps Wiring Diagram - MKZ (3 Of 4)
G08745391Courtesy of FORD MOTOR CO.

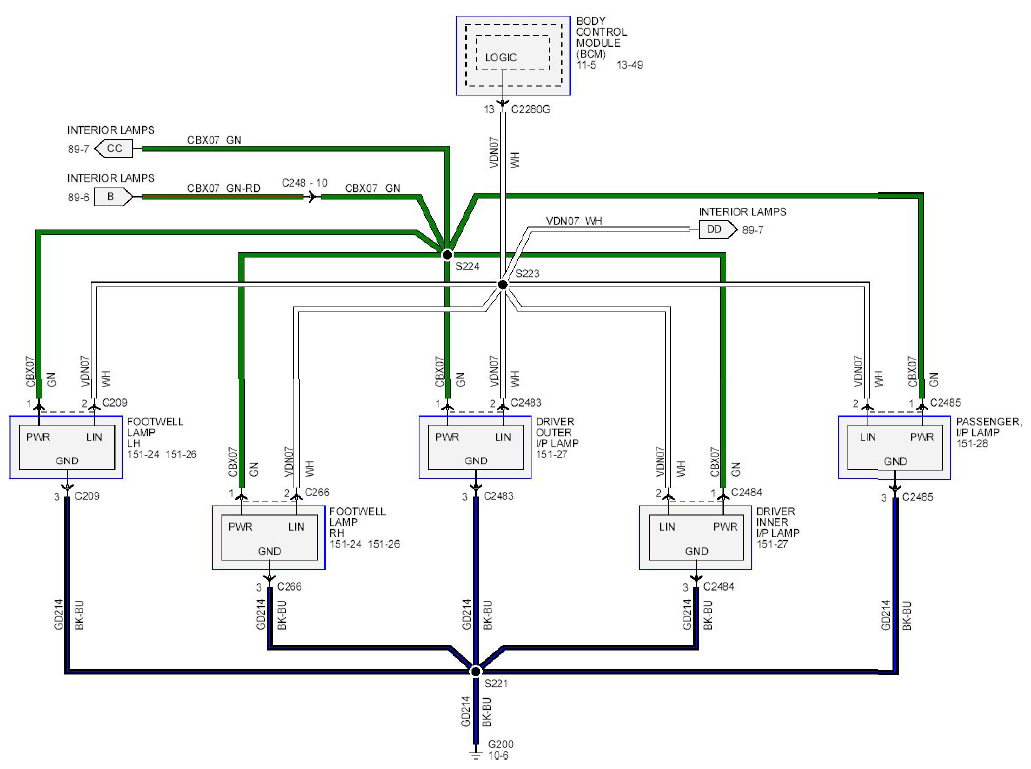

Fig 4: Interior Lamps Wiring Diagram - MKZ (4 Of 4)
G08745392Courtesy of FORD MOTOR CO.
