Interior Lamps: Fusion

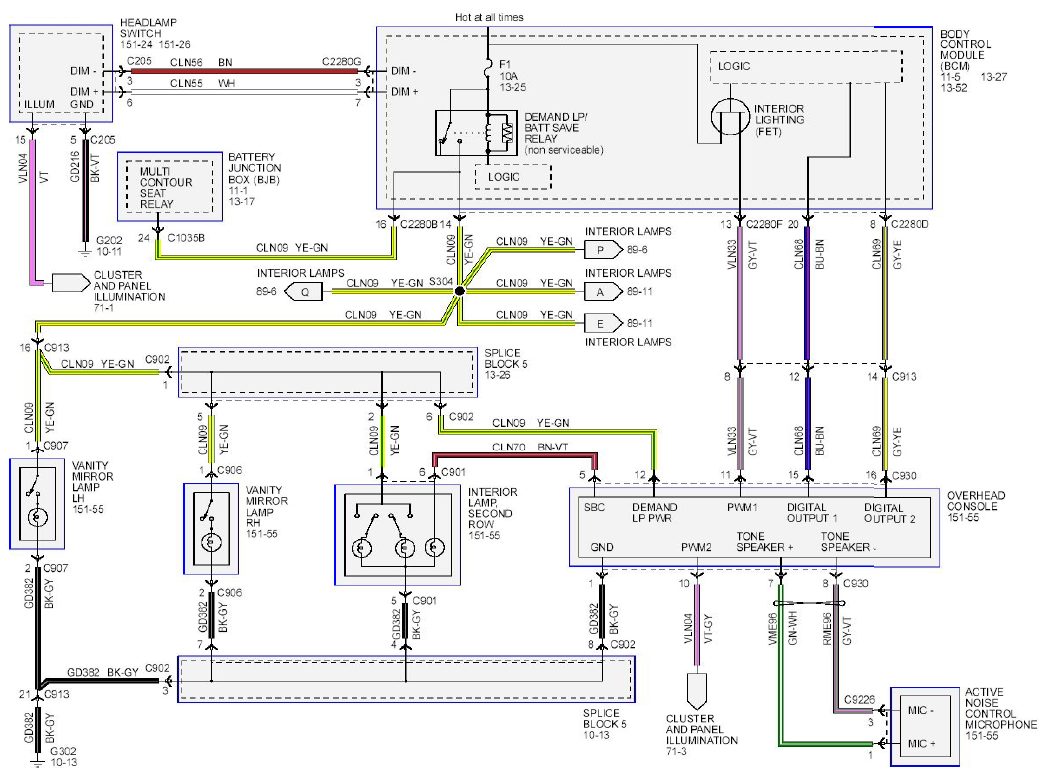

Fig 1: Interior Lamps Wiring Diagram - Fusion (1 Of 3)
G08745385Courtesy of FORD MOTOR CO.

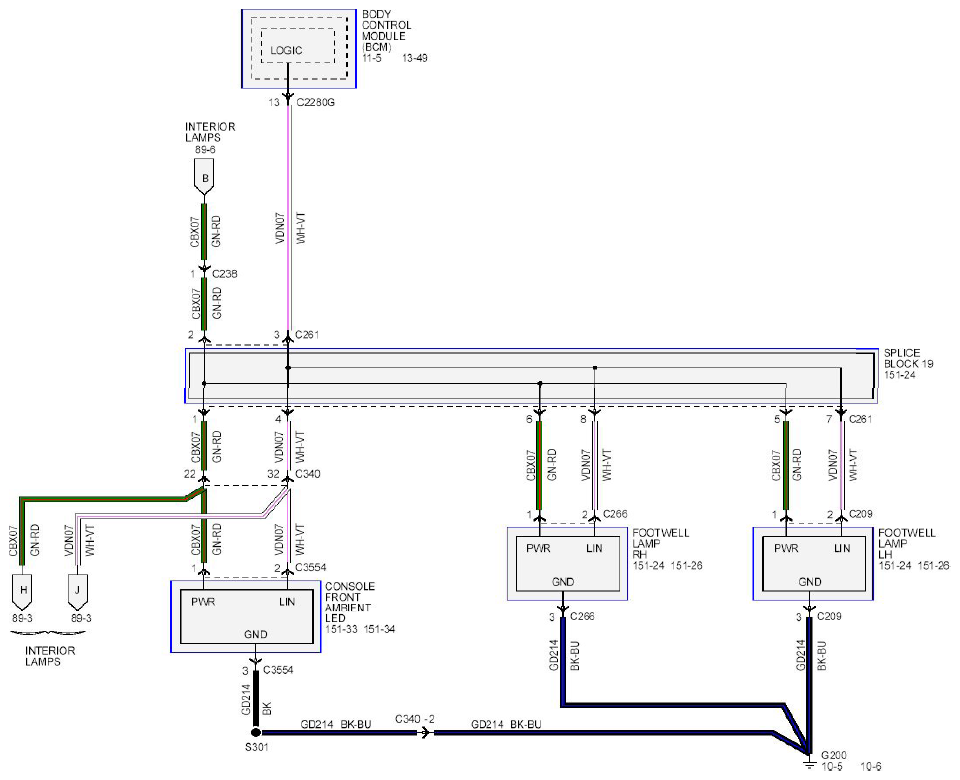

Fig 2: Interior Lamps Wiring Diagram - Fusion (2 Of 3)
G08745386Courtesy of FORD MOTOR CO.

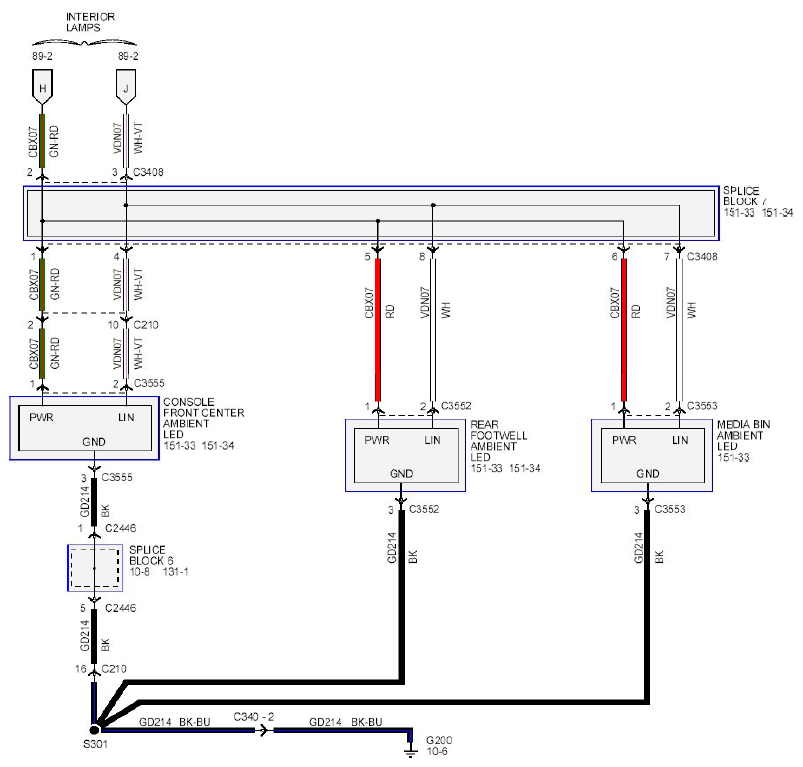

Fig 3: Interior Lamps Wiring Diagram - Fusion (3 Of 3)
G08745387Courtesy of FORD MOTOR CO.
