OEM Wiring Diagrams -- (Except Hybrid): Headlamps/Autolamps: Notes

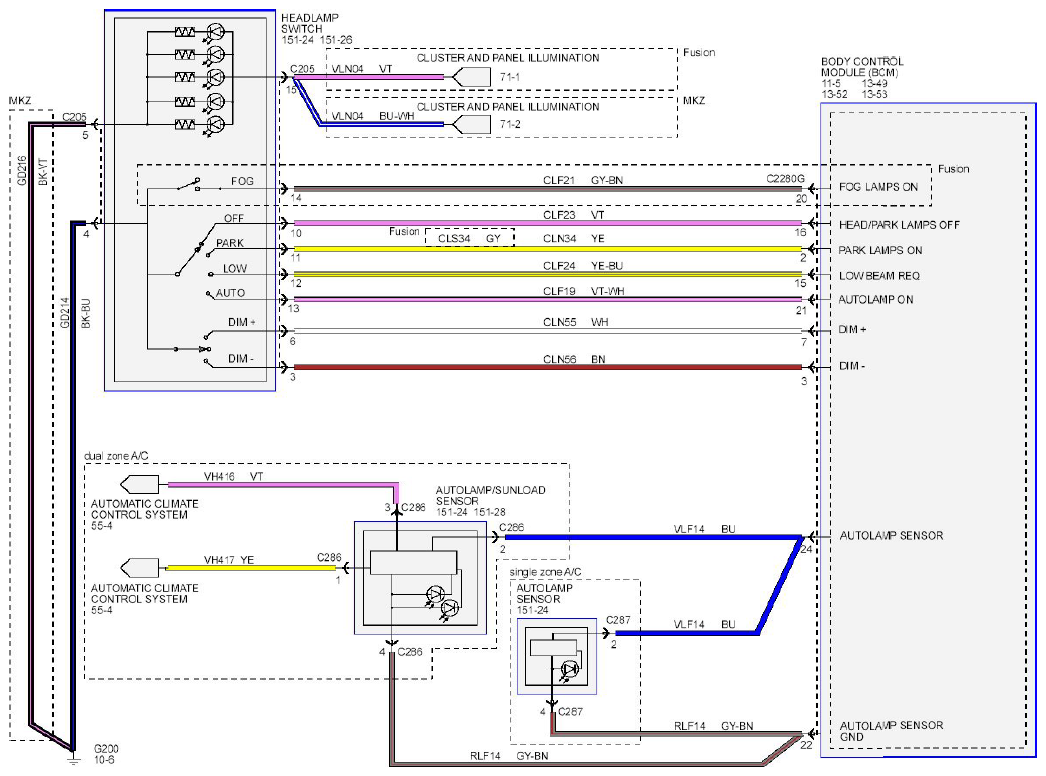

Fig 1: Headlamps_Autolamps Wiring Diagram

G08745379

Courtesy of FORD MOTOR CO.
