OEM Wiring Diagrams -- (Except Hybrid): Headlamps/Autolamps: Led

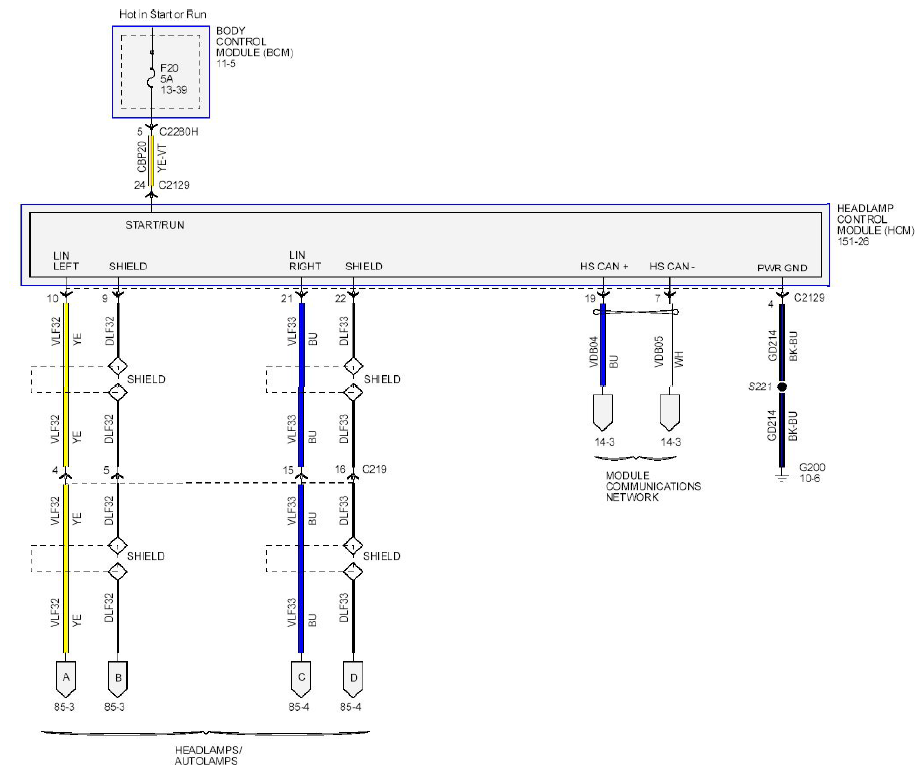

Fig 1: Headlamps_Autolamps Wiring Diagram - LED (1 Of 3)

Courtesy of FORD MOTOR CO.

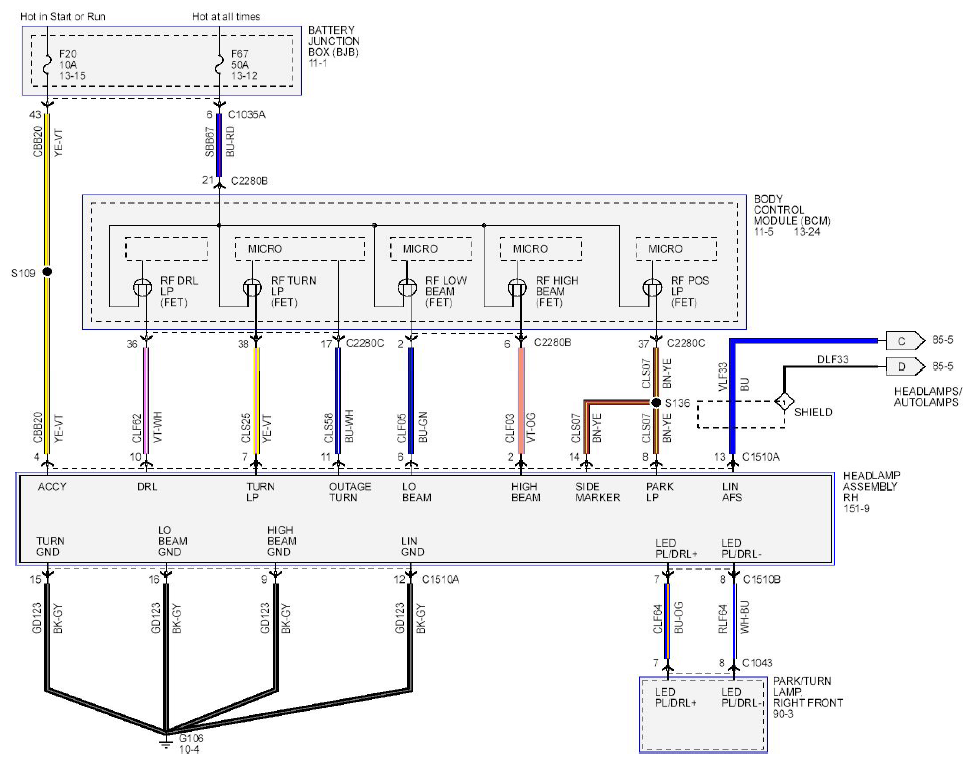

Fig 2: Headlamps_Autolamps Wiring Diagram - LED (2 Of 3)

Courtesy of FORD MOTOR CO.

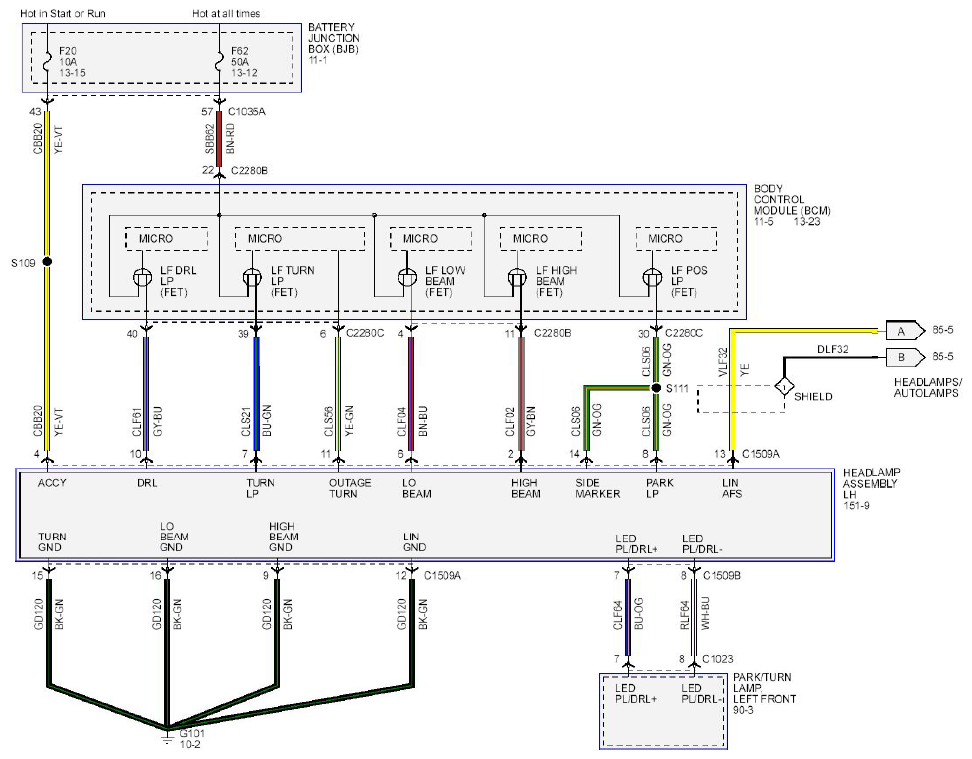

Fig 3: Headlamps_Autolamps Wiring Diagram - LED (3 Of 3)

Courtesy of FORD MOTOR CO.
