OEM Wiring Diagrams -- (Except Hybrid): Headlamps/Autolamps: Halogen

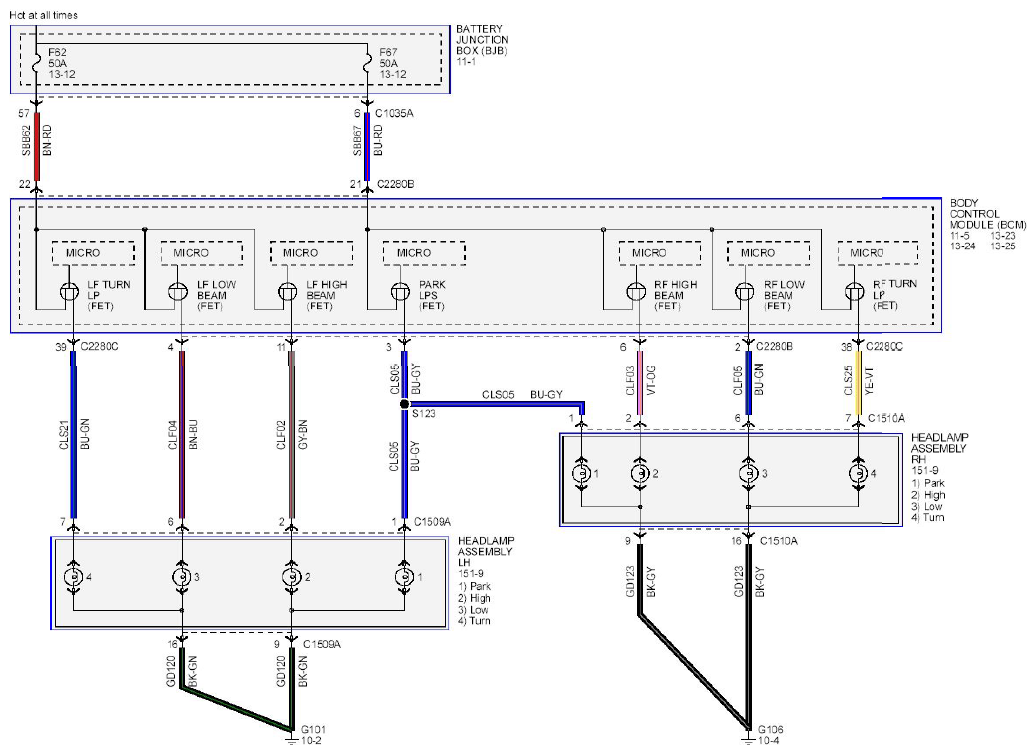

Fig 1: Headlamps_Autolamps Wiring Diagram - Halogen

G08745380

Courtesy of FORD MOTOR CO.
