Cooling Fan
Cooling Fan

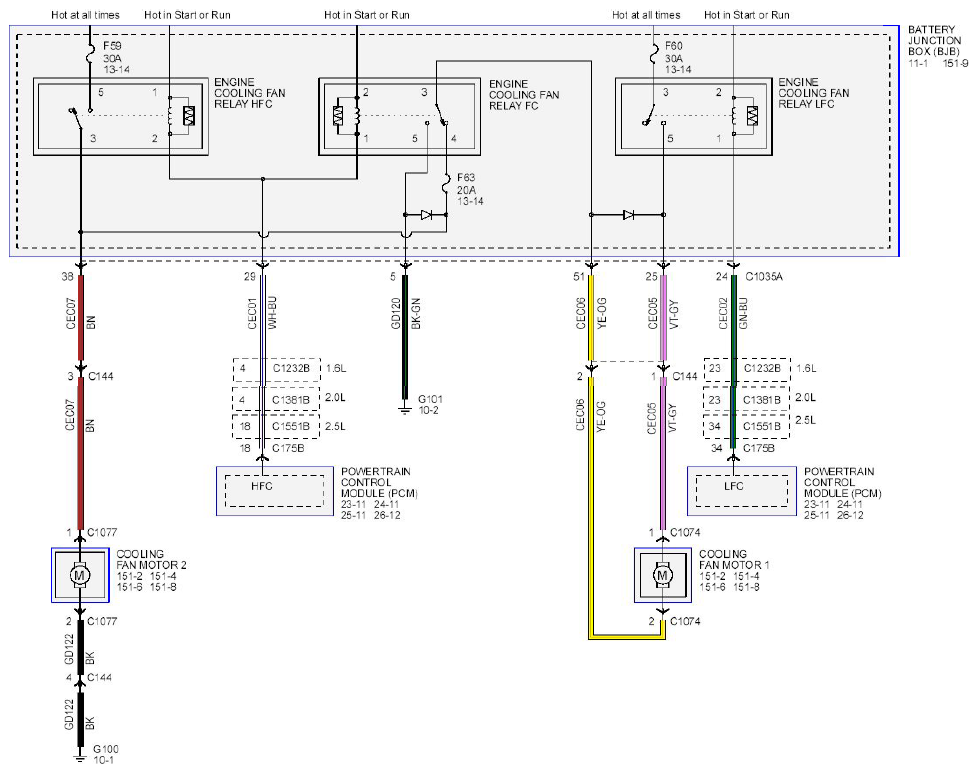

Fig 1: Cooling Fan Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

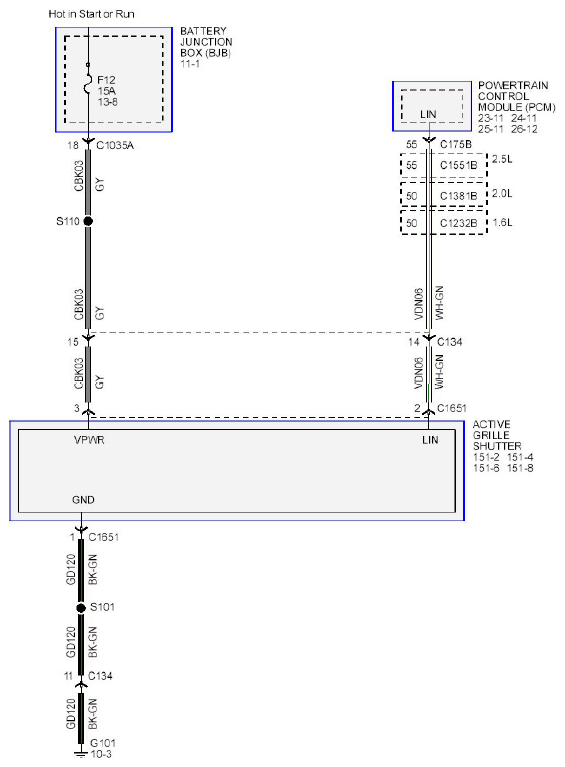

Fig 2: Cooling Fan Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
