Cluster and panel Illumination: MKZ

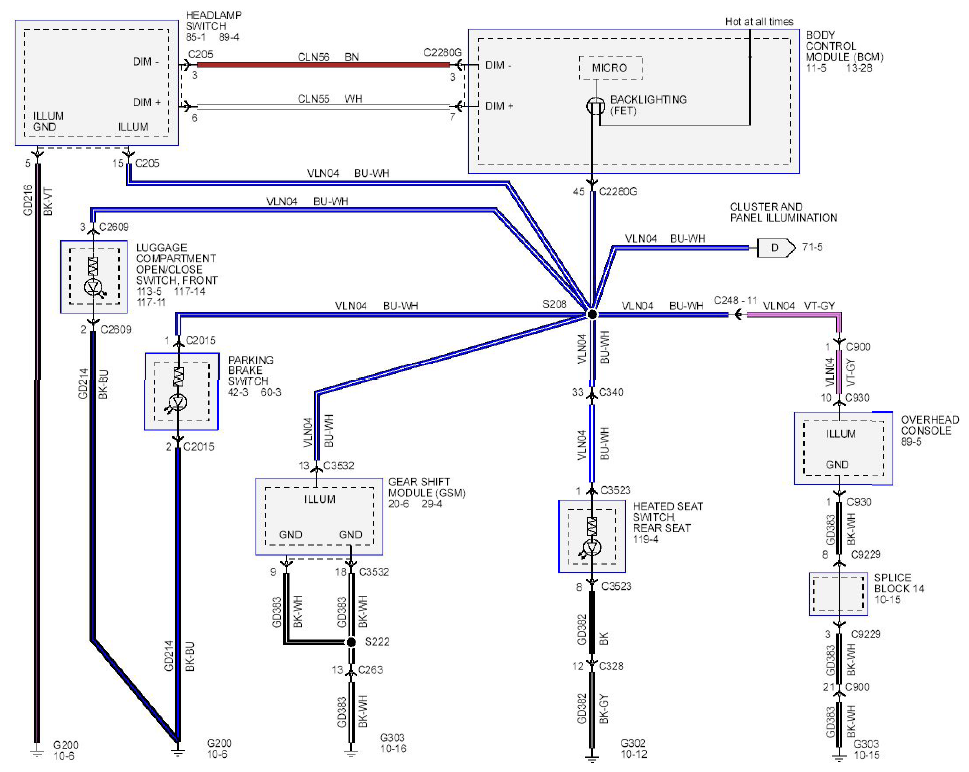

Fig 1: Cluster And Panel Illumination Wiring Diagram - MKZ (1 Of 2)
G08745373Courtesy of FORD MOTOR CO.

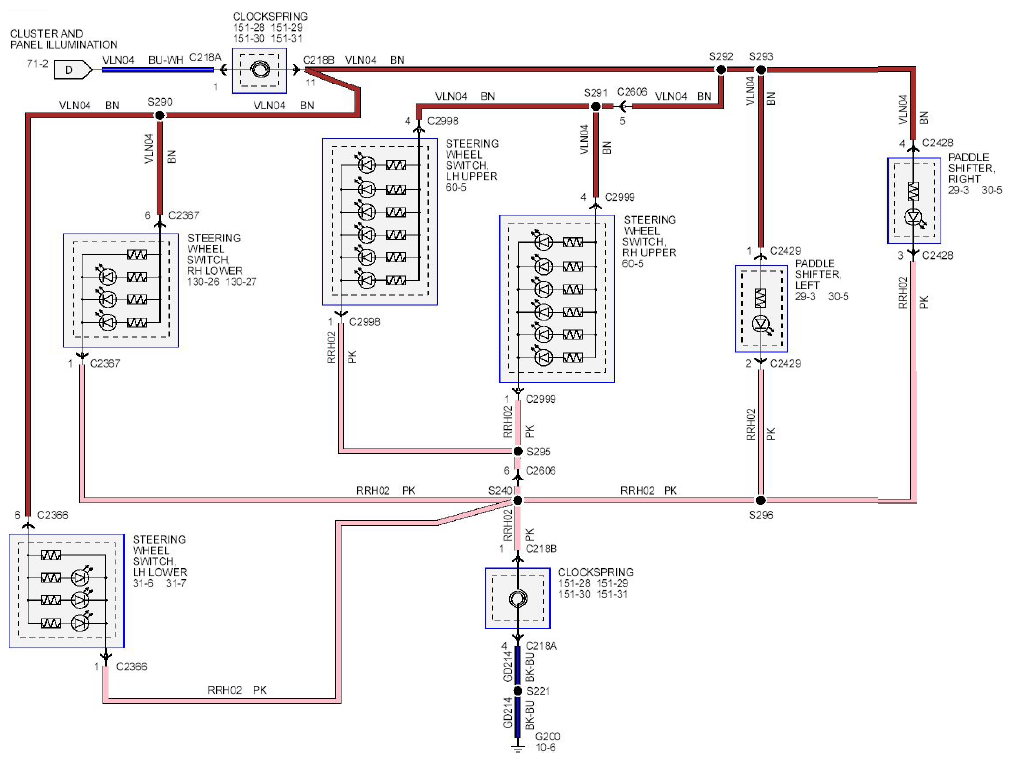

Fig 2: Cluster And Panel Illumination Wiring Diagram - MKZ (2 Of 2)
G08745376Courtesy of FORD MOTOR CO.
