Cluster and panel Illumination: Fusion

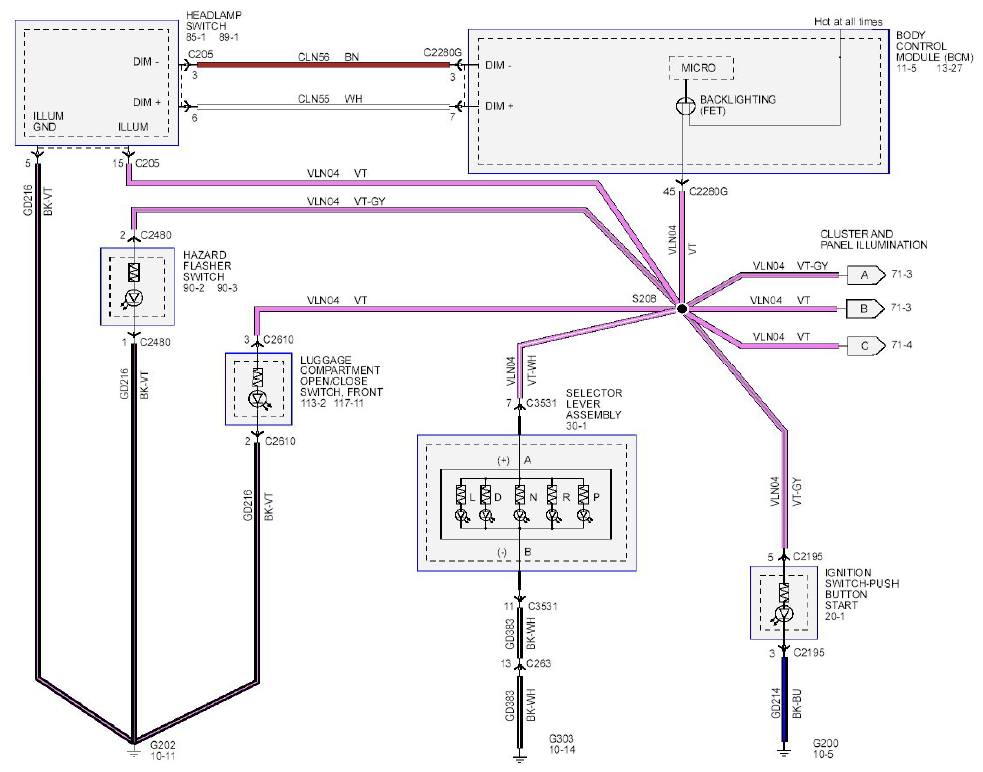

Fig 1: Cluster And Panel Illumination Wiring Diagram - Fusion (1 Of 3)
G08745372Courtesy of FORD MOTOR CO.

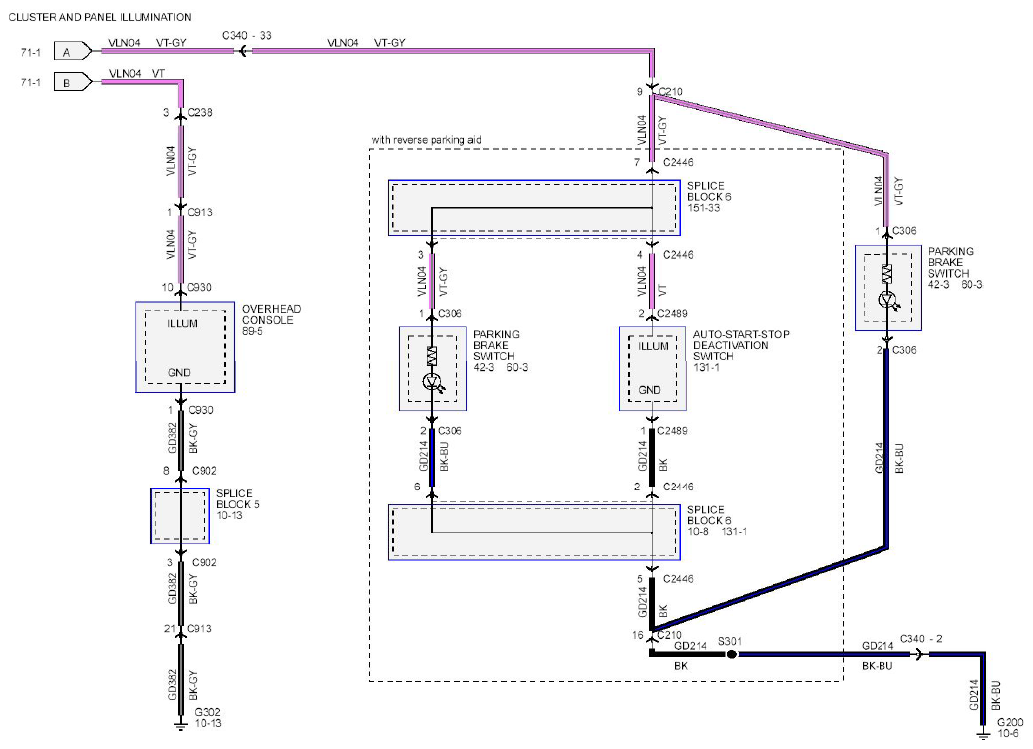

Fig 2: Cluster And Panel Illumination Wiring Diagram - Fusion (2 Of 3)
G08745374Courtesy of FORD MOTOR CO.

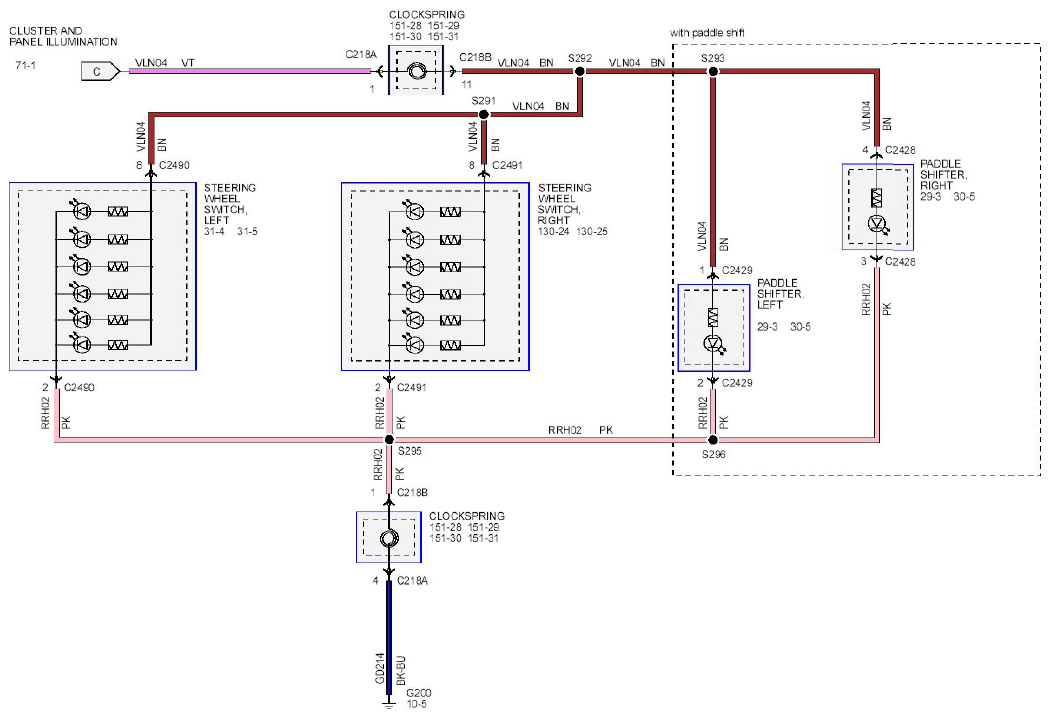

Fig 3: Cluster And Panel Illumination Wiring Diagram - Fusion (3 Of 3)
G08745375Courtesy of FORD MOTOR CO.
